Charging System Control Module: Service and Repair

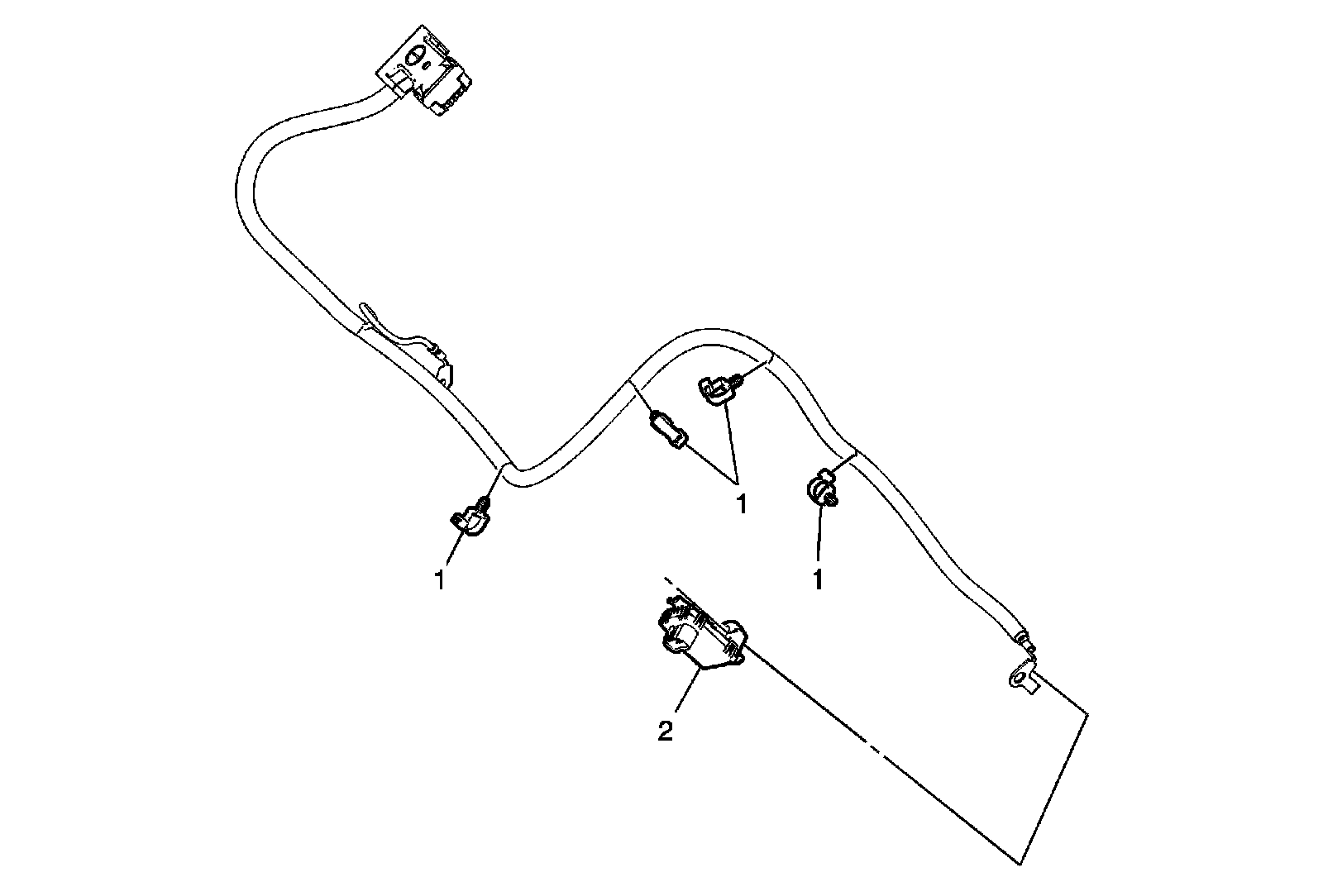

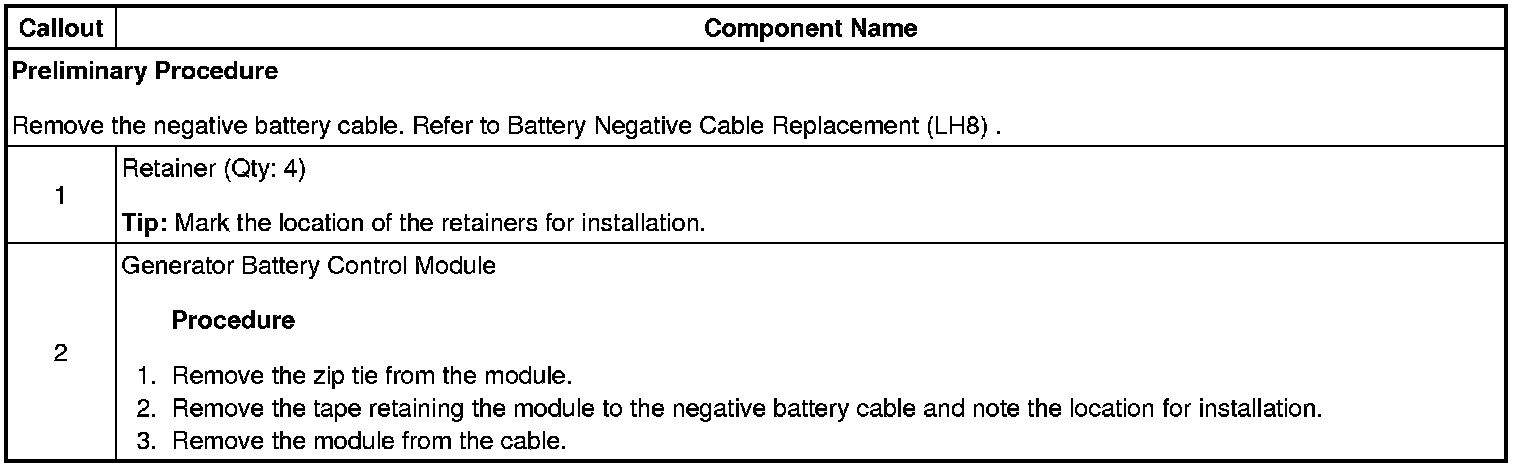

Generator Battery Control Module Replacement (V8)
