Control Module, Transfer Case
Component Connector End Views

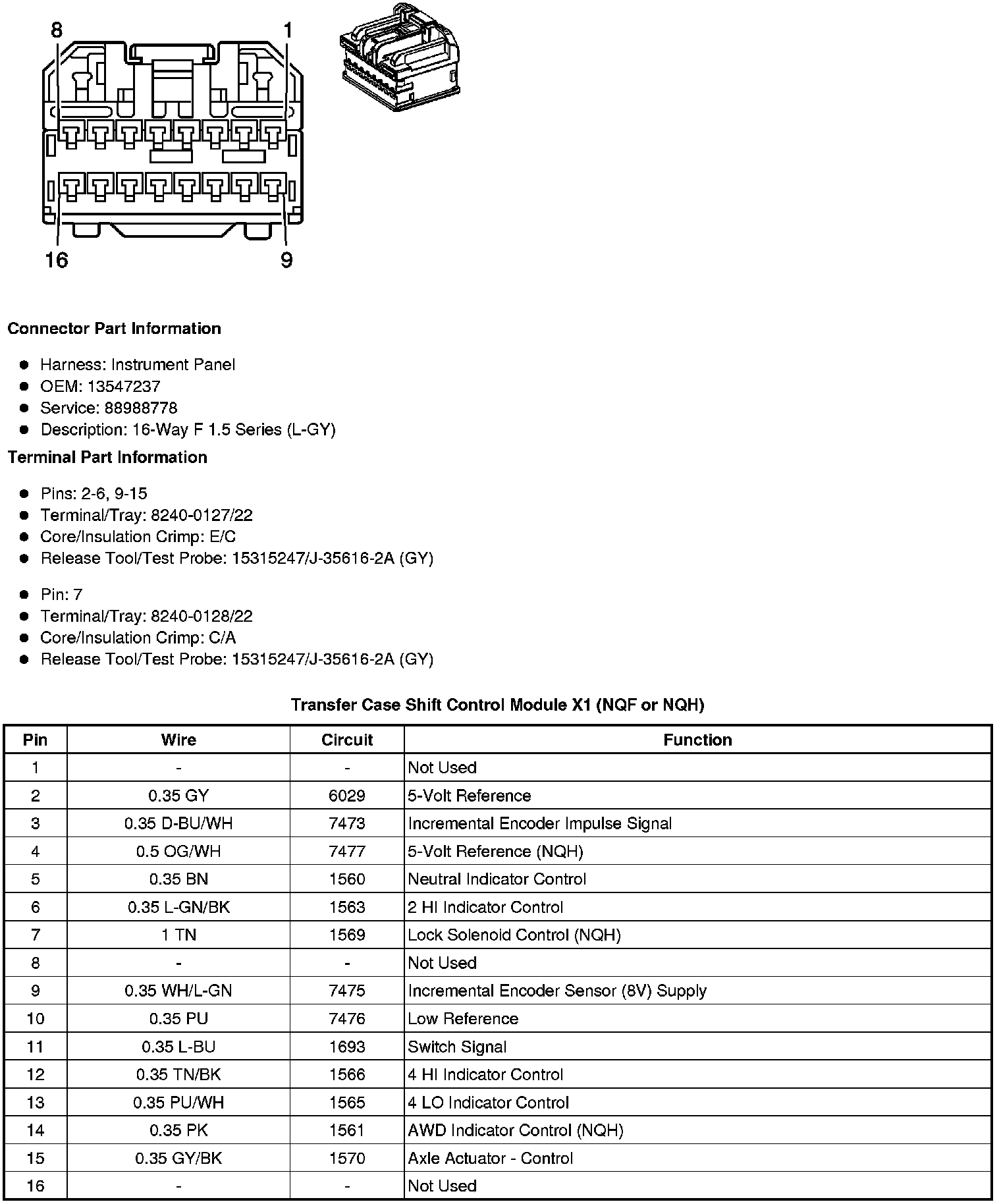

Transfer Case Shift Control Module X1 (NQF or NQH)

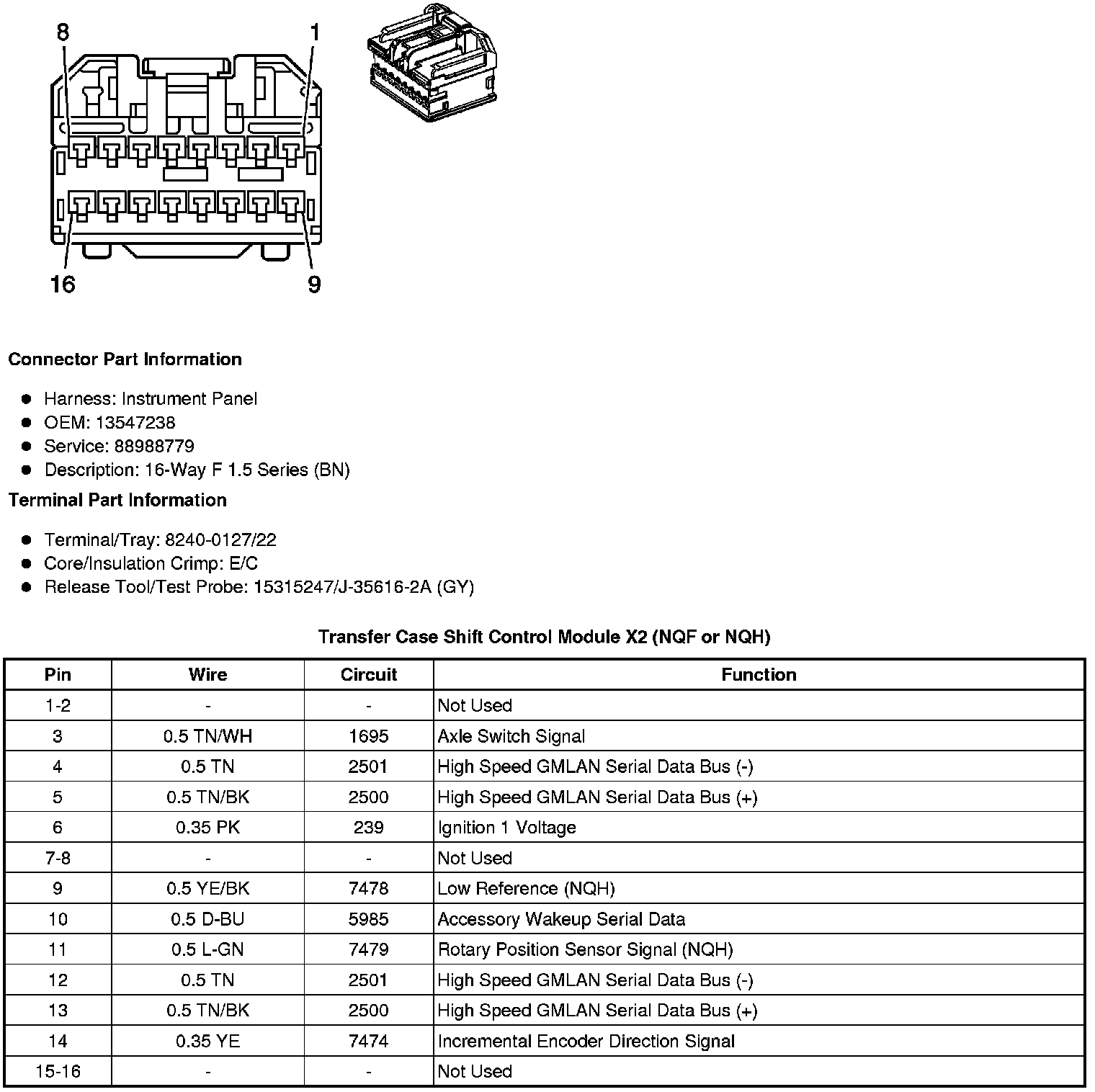

Transfer Case Shift Control Module X2 (NQF or NQH)

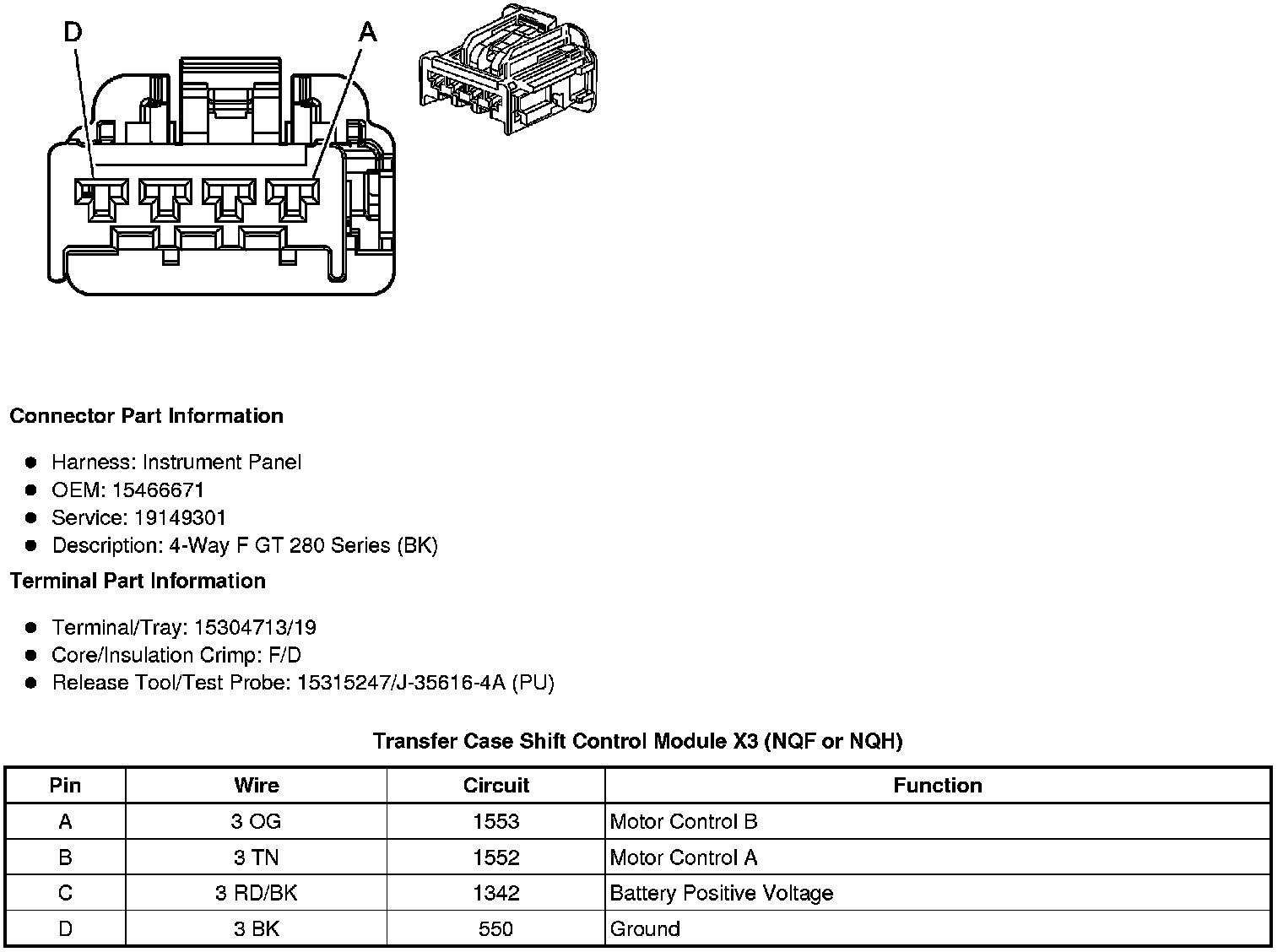

Transfer Case Shift Control Module X3 (NQF or NQH)
Component Connector End Views
Transfer Case Shift Control Module X1 (NQF or NQH)
Transfer Case Shift Control Module X2 (NQF or NQH)
Transfer Case Shift Control Module X3 (NQF or NQH)
