Seat Temperature Control Module
Component Connector End Views

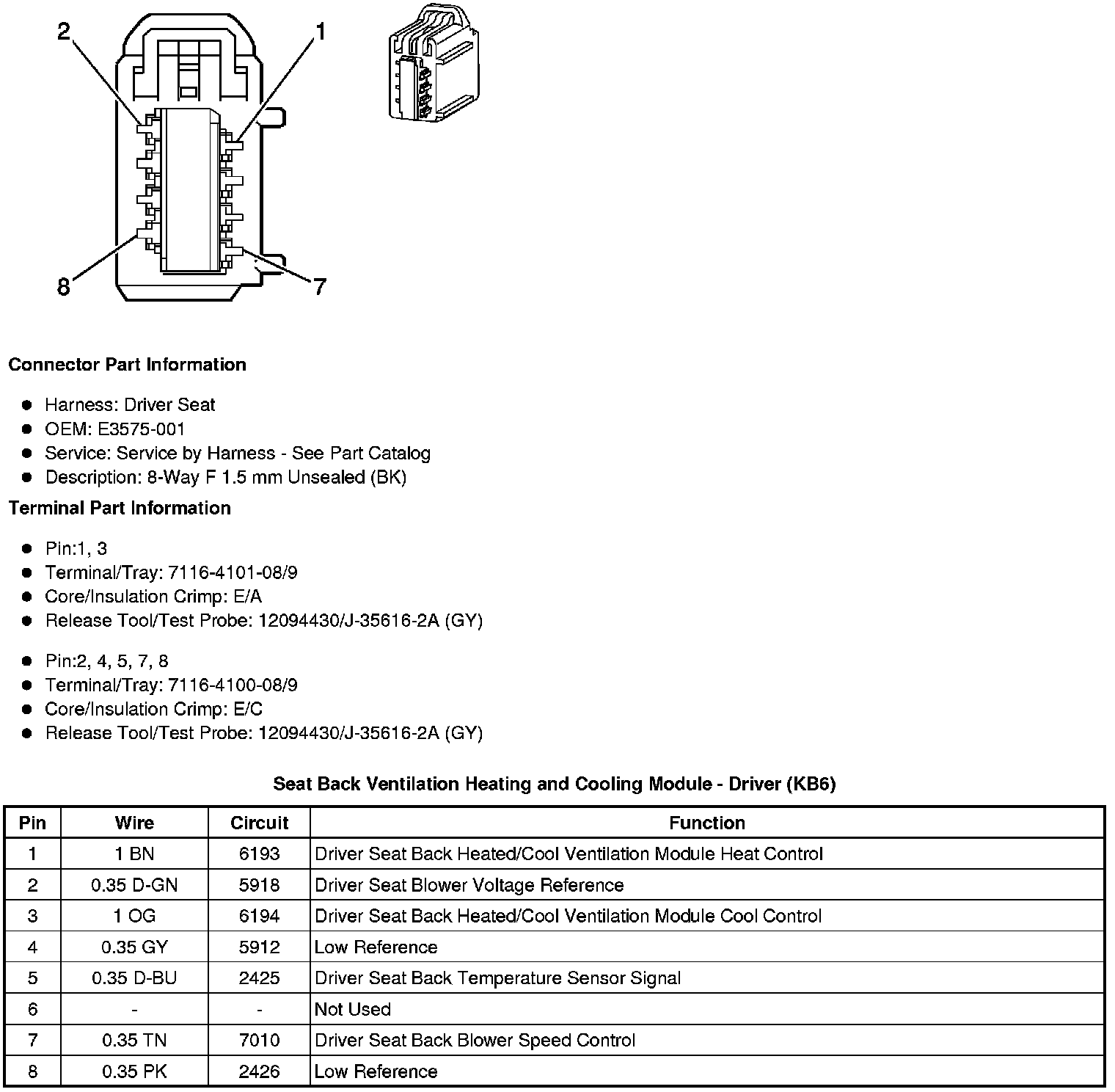

Seat Back Ventilation Heating and Cooling Module - Driver (KB6)

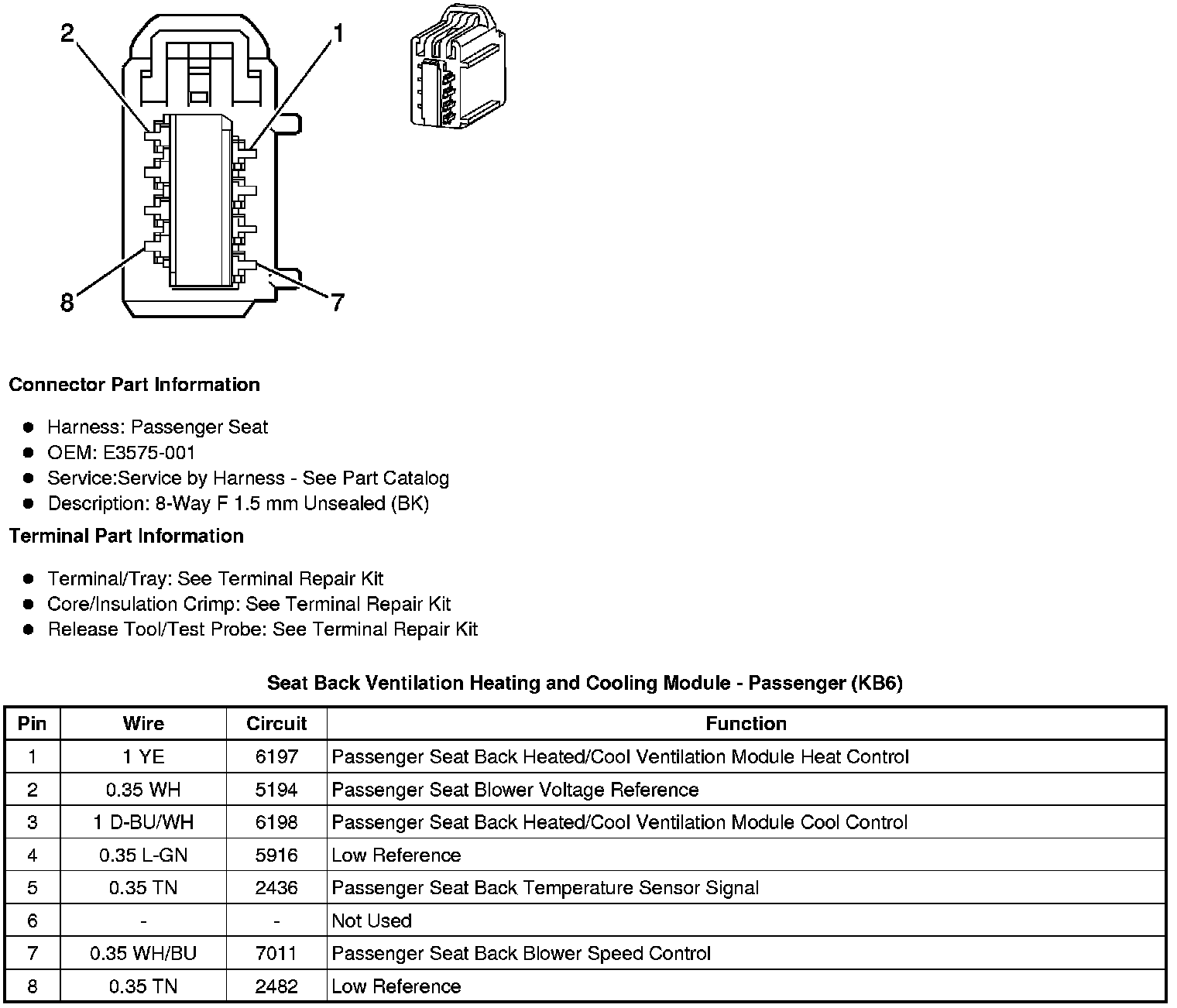

Seat Back Ventilation Heating and Cooling Module - Passenger (KB6)

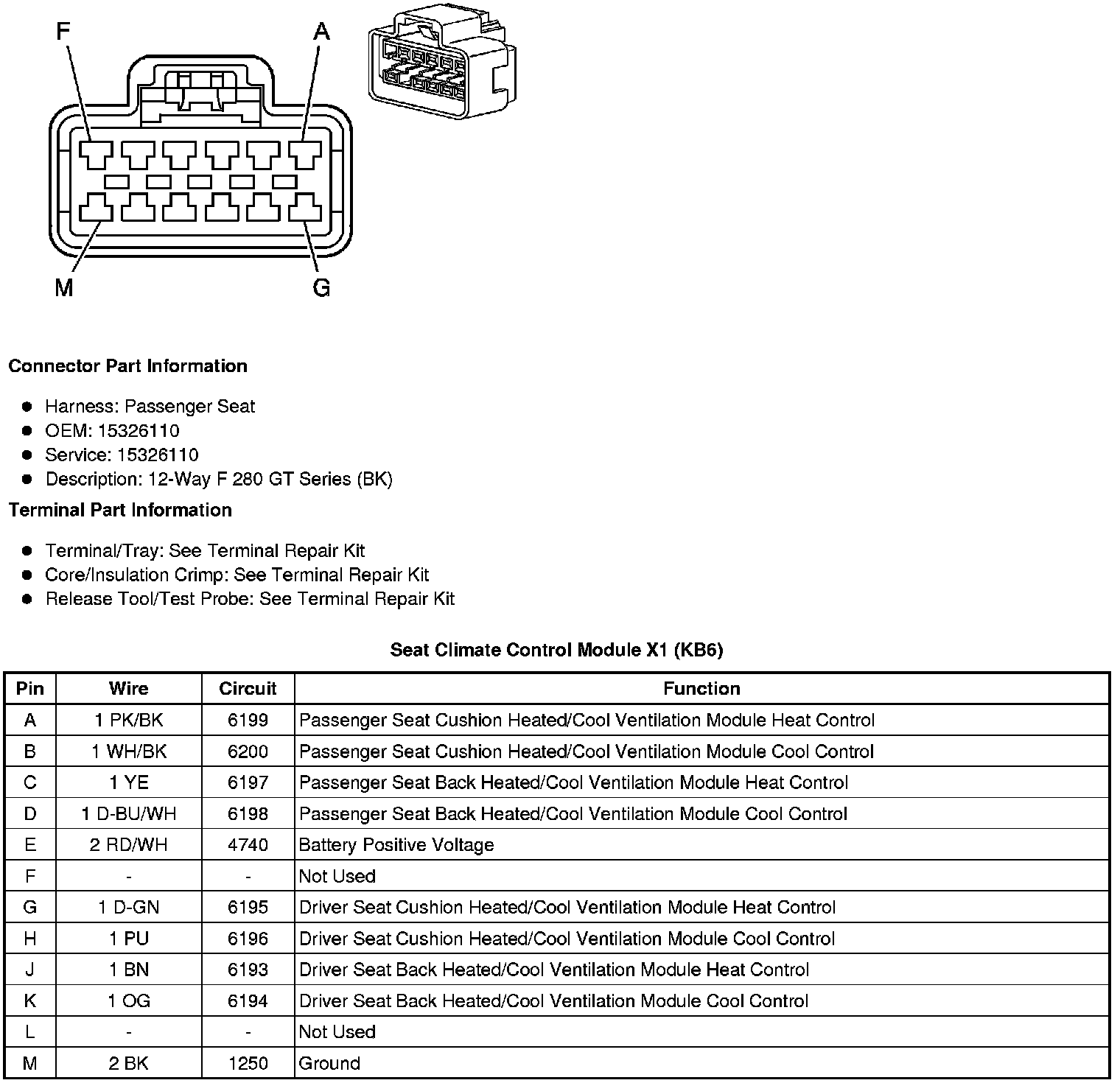

Seat Climate Control Module X1 (KB6)

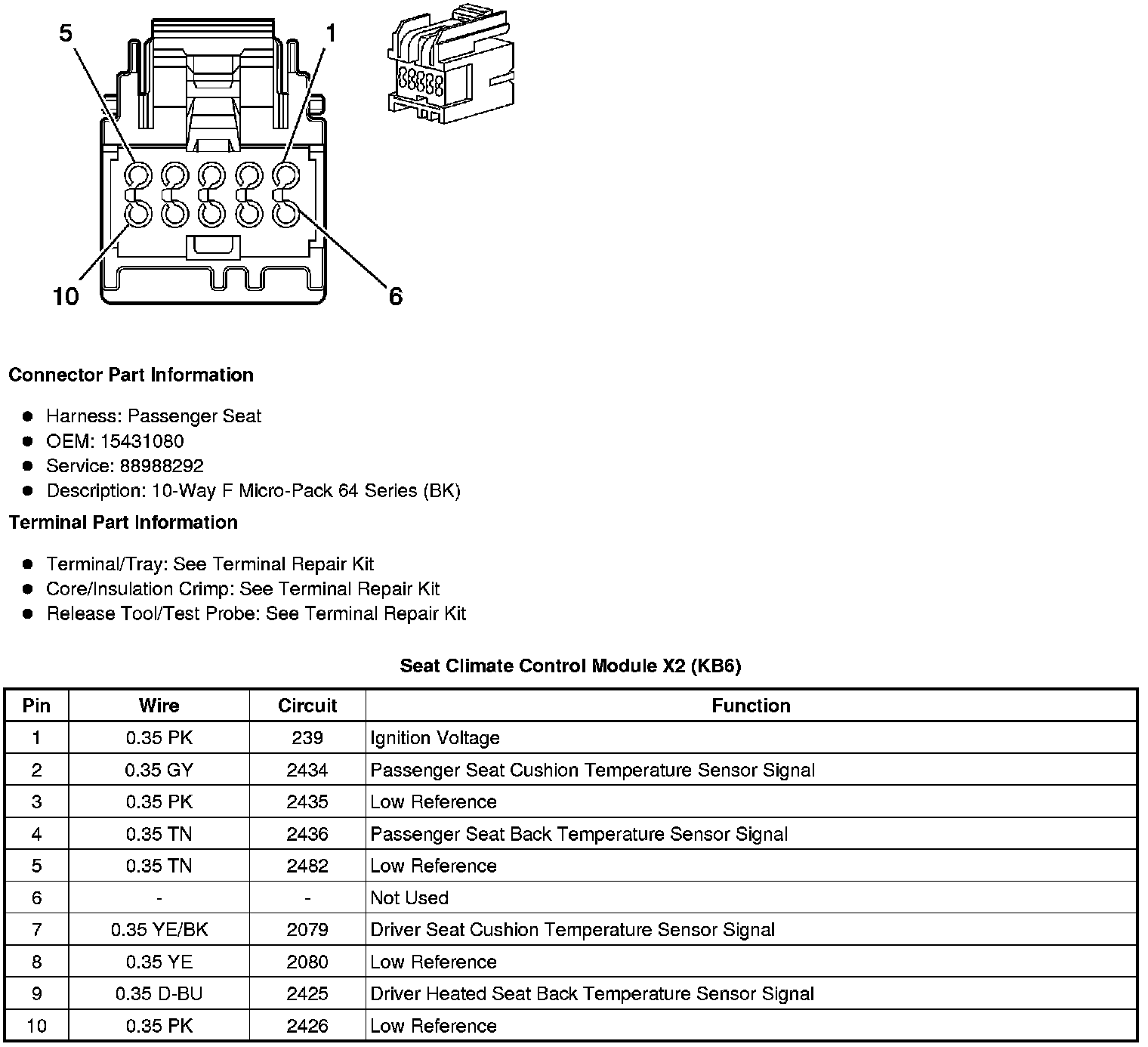

Seat Climate Control Module X2 (KB6)

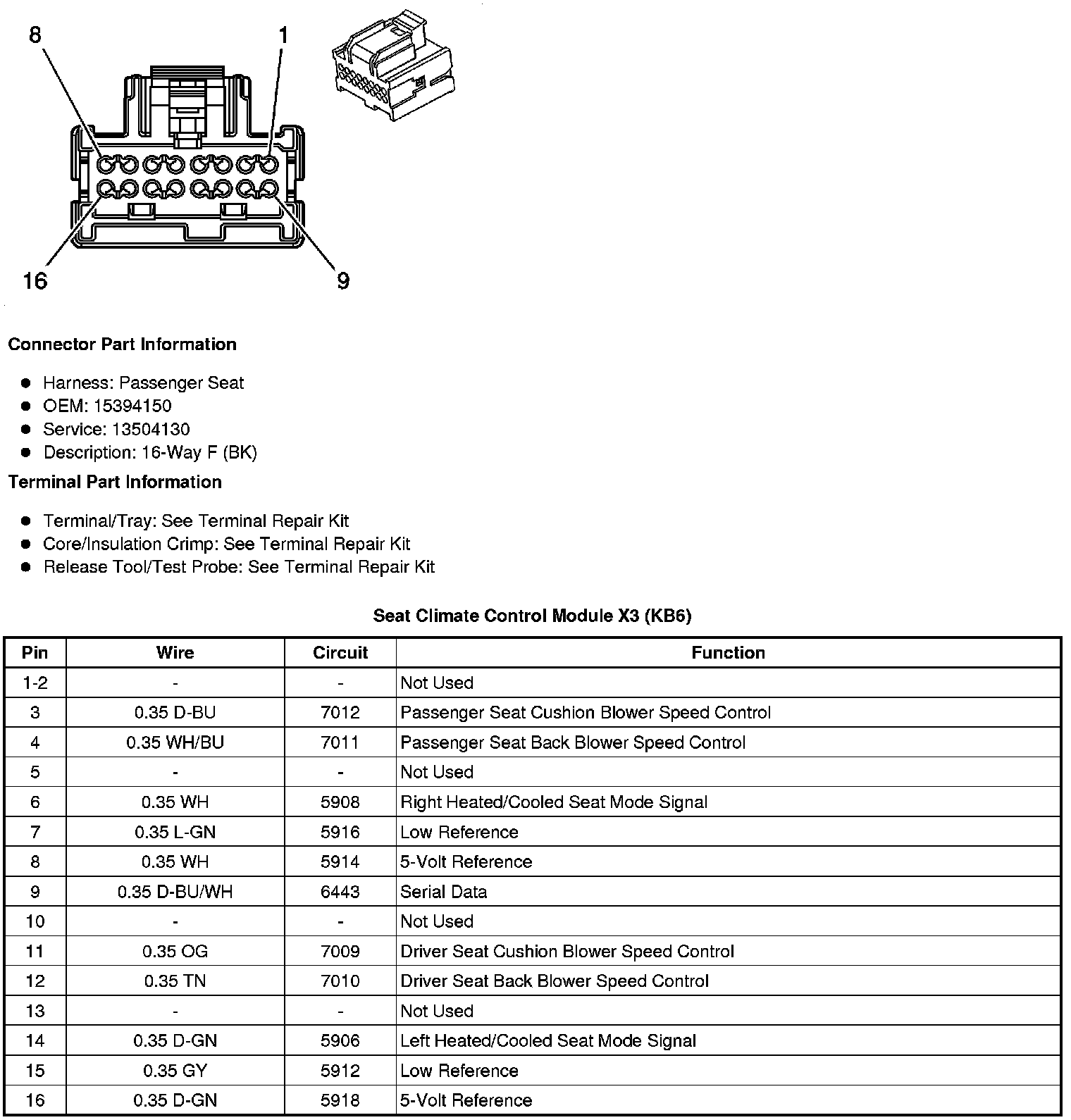

Seat Climate Control Module X3 (KB6)

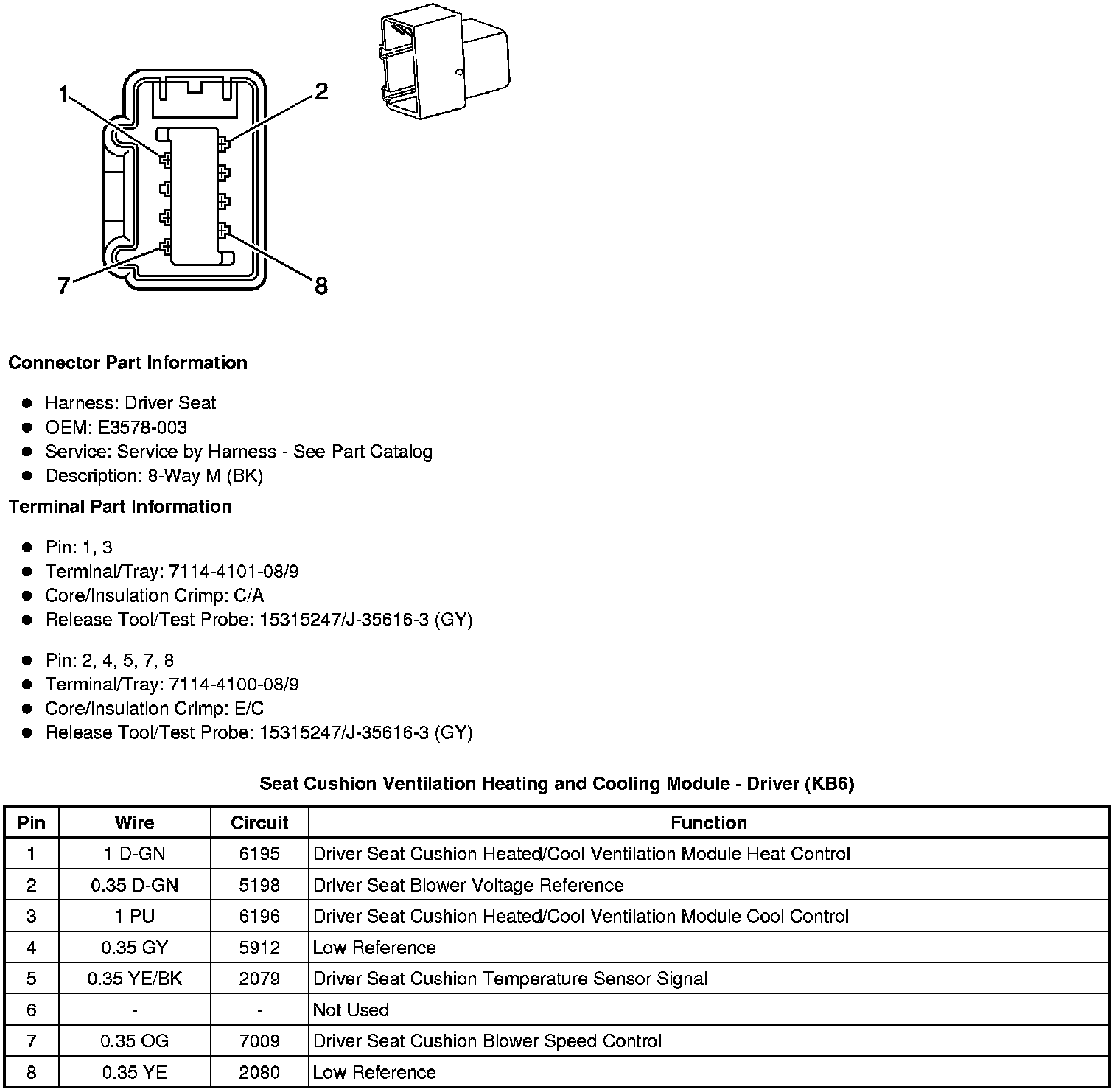

Seat Cushion Ventilation Heating and Cooling Module - Driver (KB6)

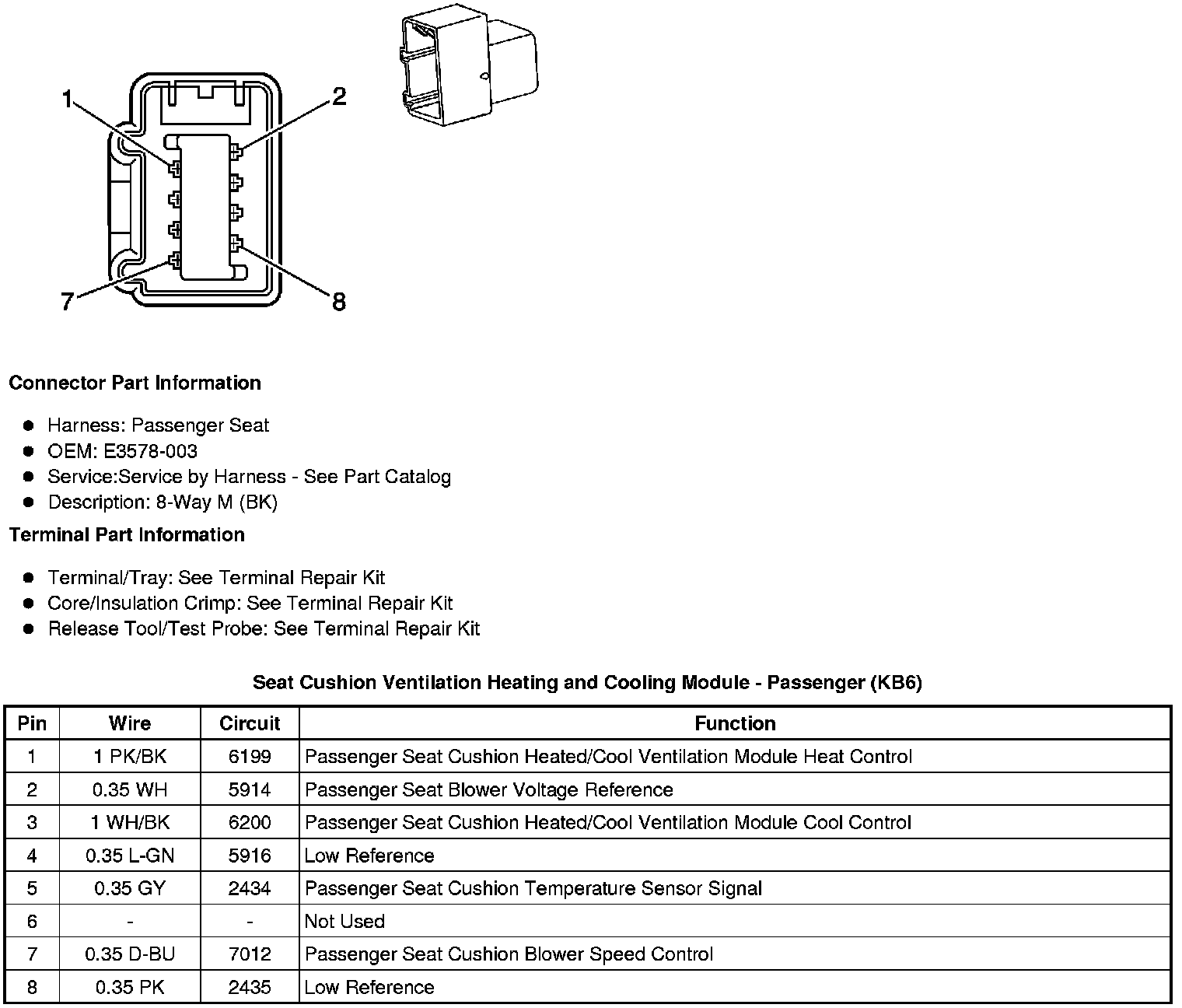

Seat Cushion Ventilation Heating and Cooling Module - Passenger (KB6)

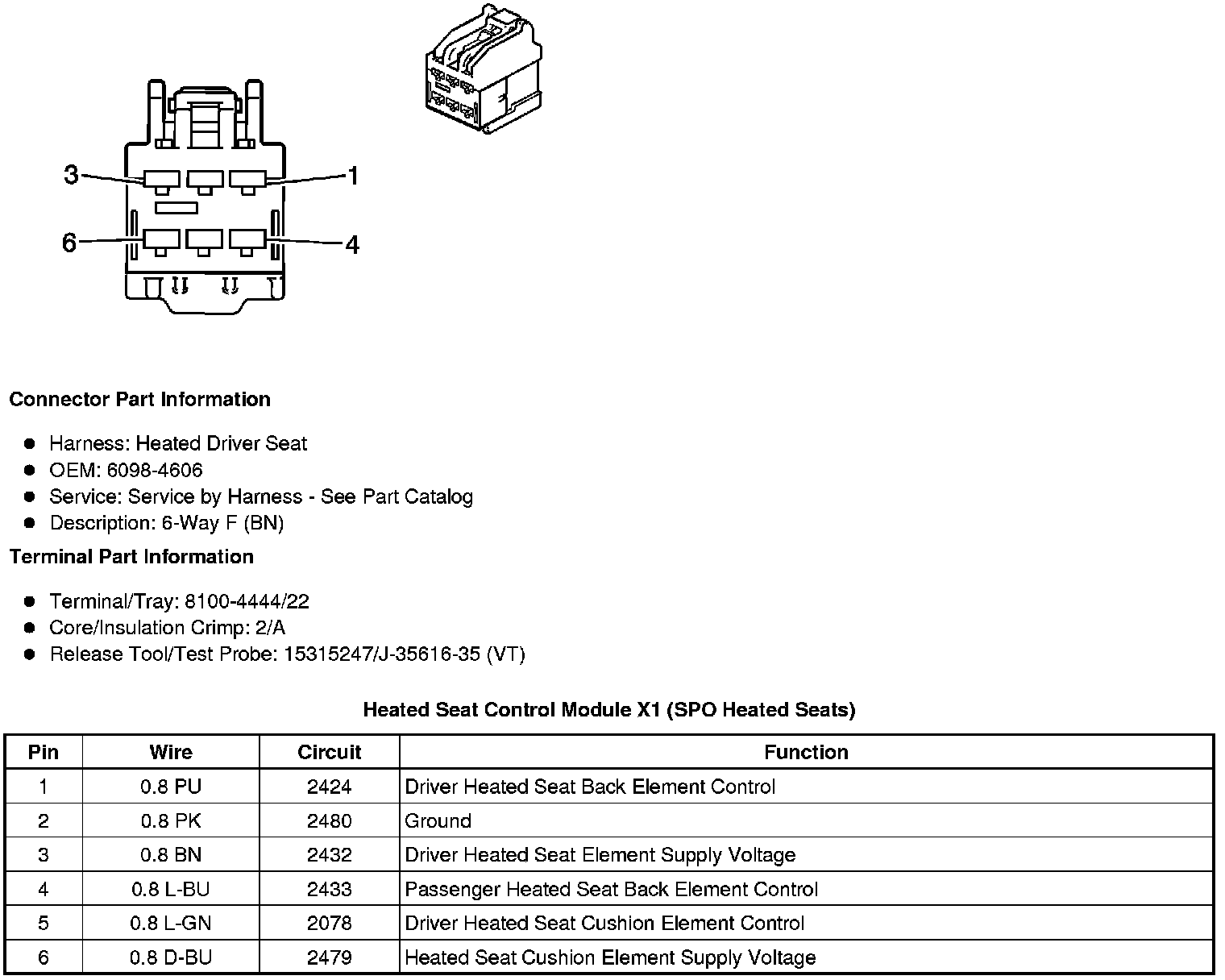

Heated Seat Control Module X1 (SPO Heated Seats)

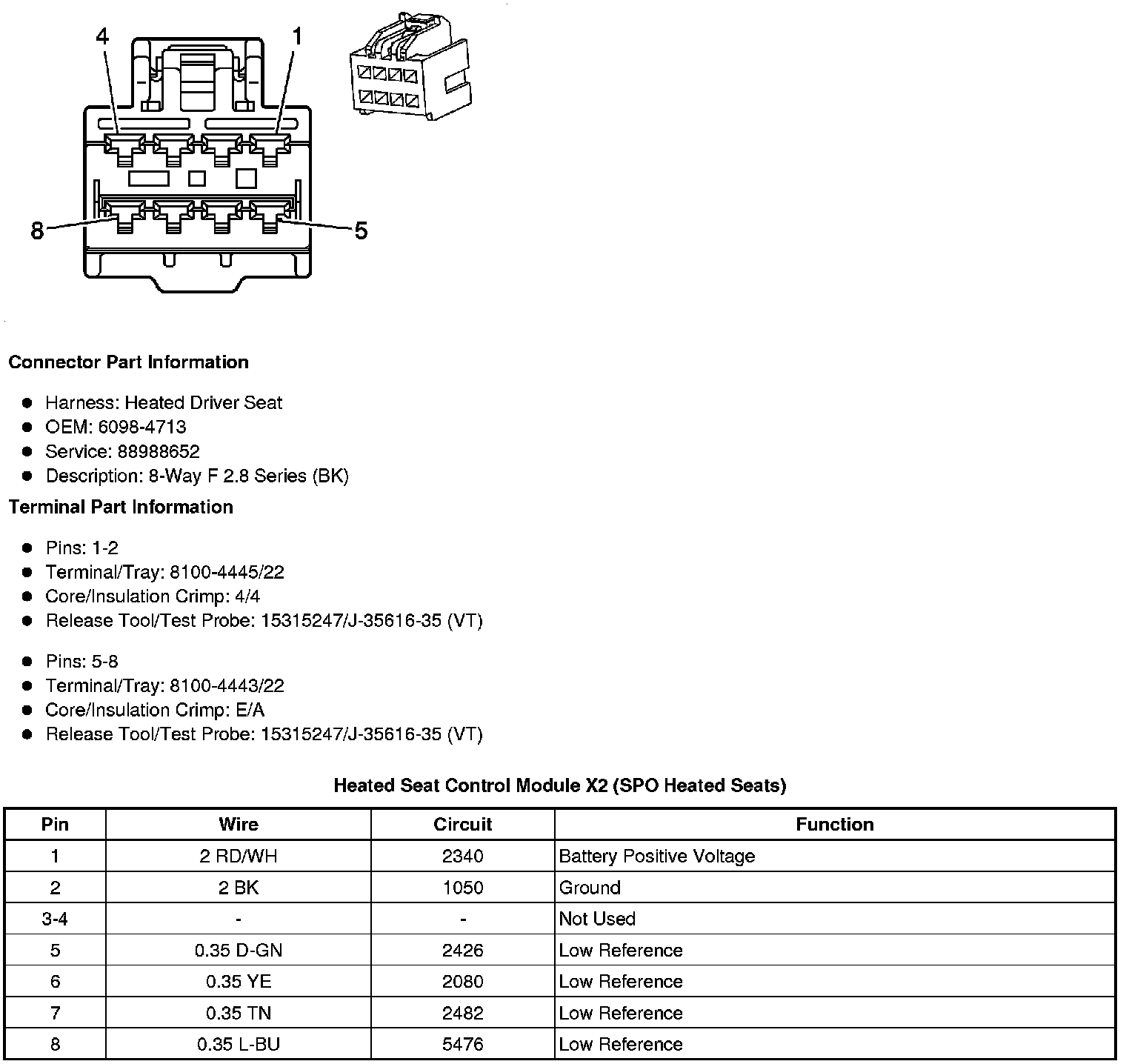

Heated Seat Control Module X2 (SPO Heated Seats)

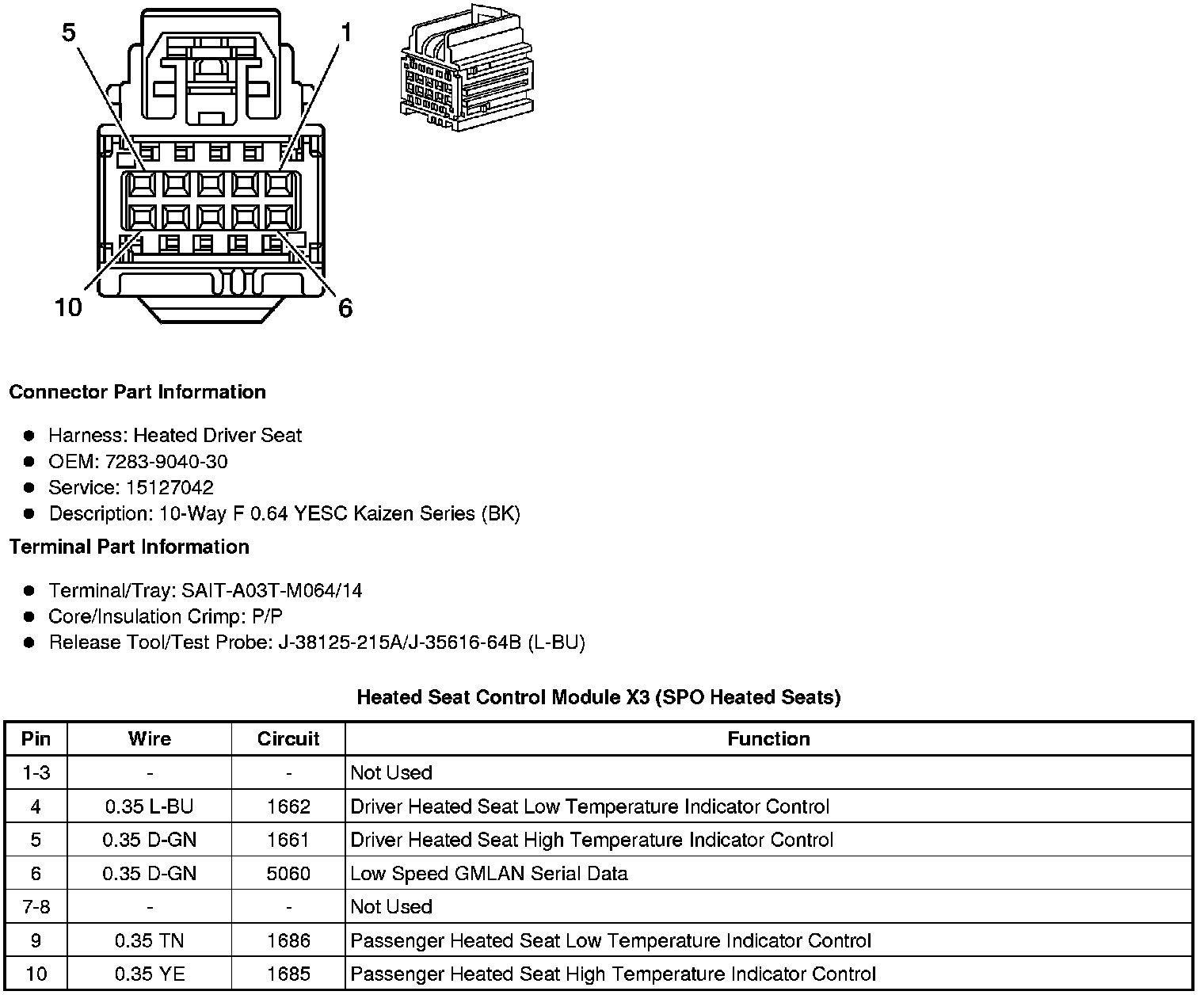

Heated Seat Control Module X3 (SPO Heated Seats)

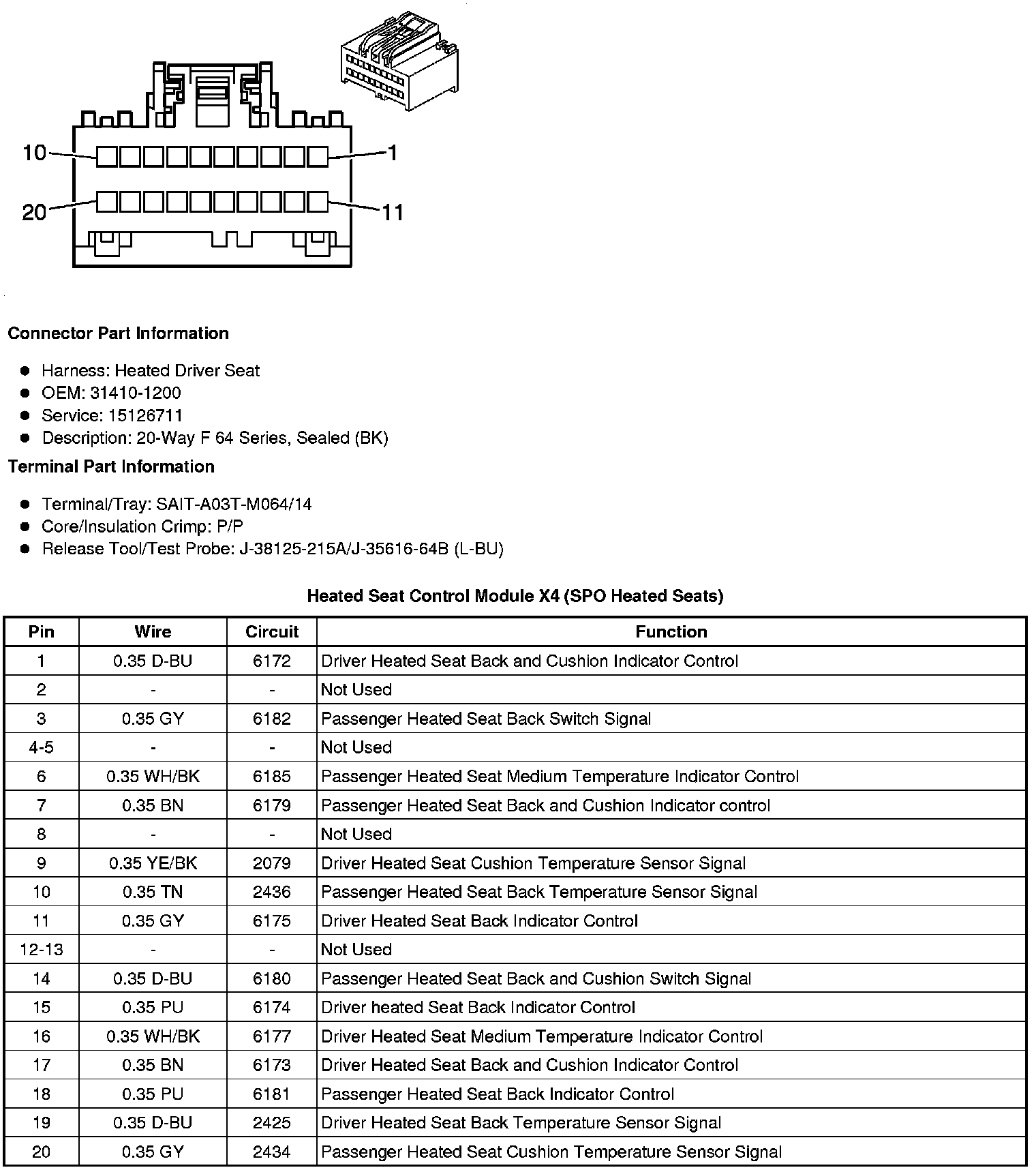

Heated Seat Control Module X4 (SPO Heated Seats)
