Camshaft Position Sensor Replacement - Intake

Camshaft Position Sensor Replacement - Intake

Removal Procedure




1. Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement (Intake Manifold Cover Replacement).
2. Remove the fuel pump cover. Refer to Fuel Pump Cover Replacement (Fuel Pump Cover Replacement).

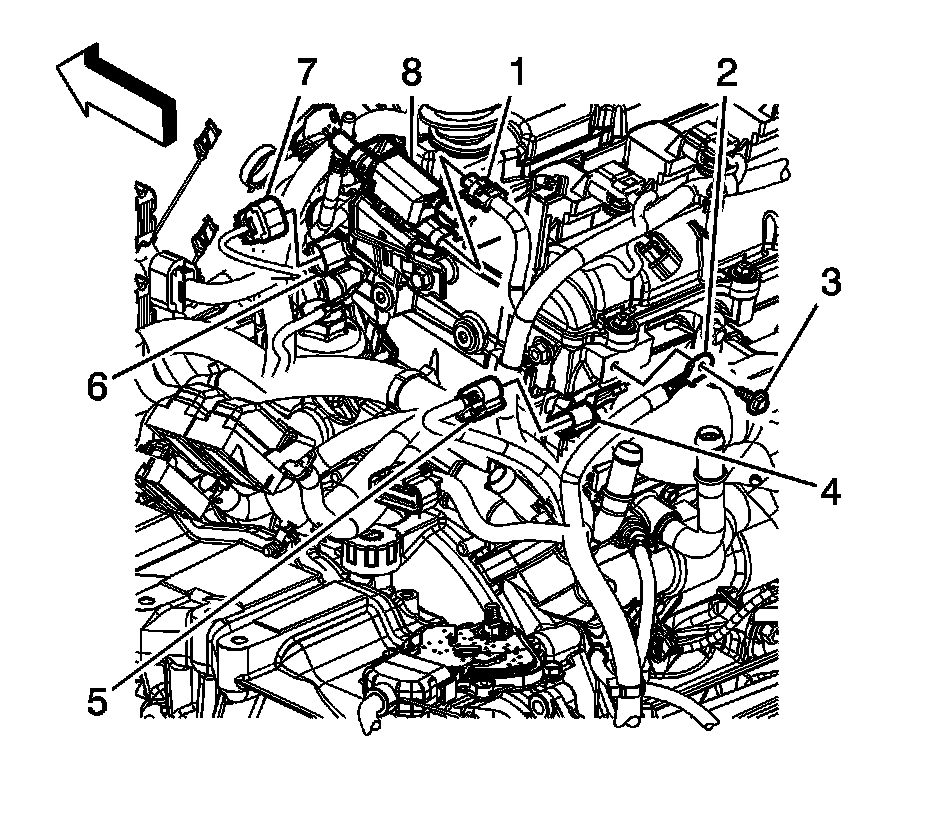

3. Disconnect the engine wiring harness electrical connector (7) from the intake camshaft position (CMP) sensor (6).




4. Remove the CMP sensor bolt.
5. Remove the CMP sensor.

Installation Procedure





Note: Inspect the CMP sensor for damage, replace as necessary.

1. Lubricate the CMP sensor O-ring seal with clean engine oil.
2. Install the CMP sensor.

Caution: Refer to Fastener Caution (Fastener Caution).

3. Install the CMP sensor bolt and tighten to 10 Nm (89 lb in).




4. Connect the engine wiring harness electrical connector (7) to the intake CMP sensor (6).
5. Install the fuel pump cover. Refer to Fuel Pump Cover Replacement (Fuel Pump Cover Replacement)
6. Install the intake manifold cover. Refer to Intake Manifold Cover Replacement (Intake Manifold Cover Replacement).
