Oxygen Sensor: Diagrams

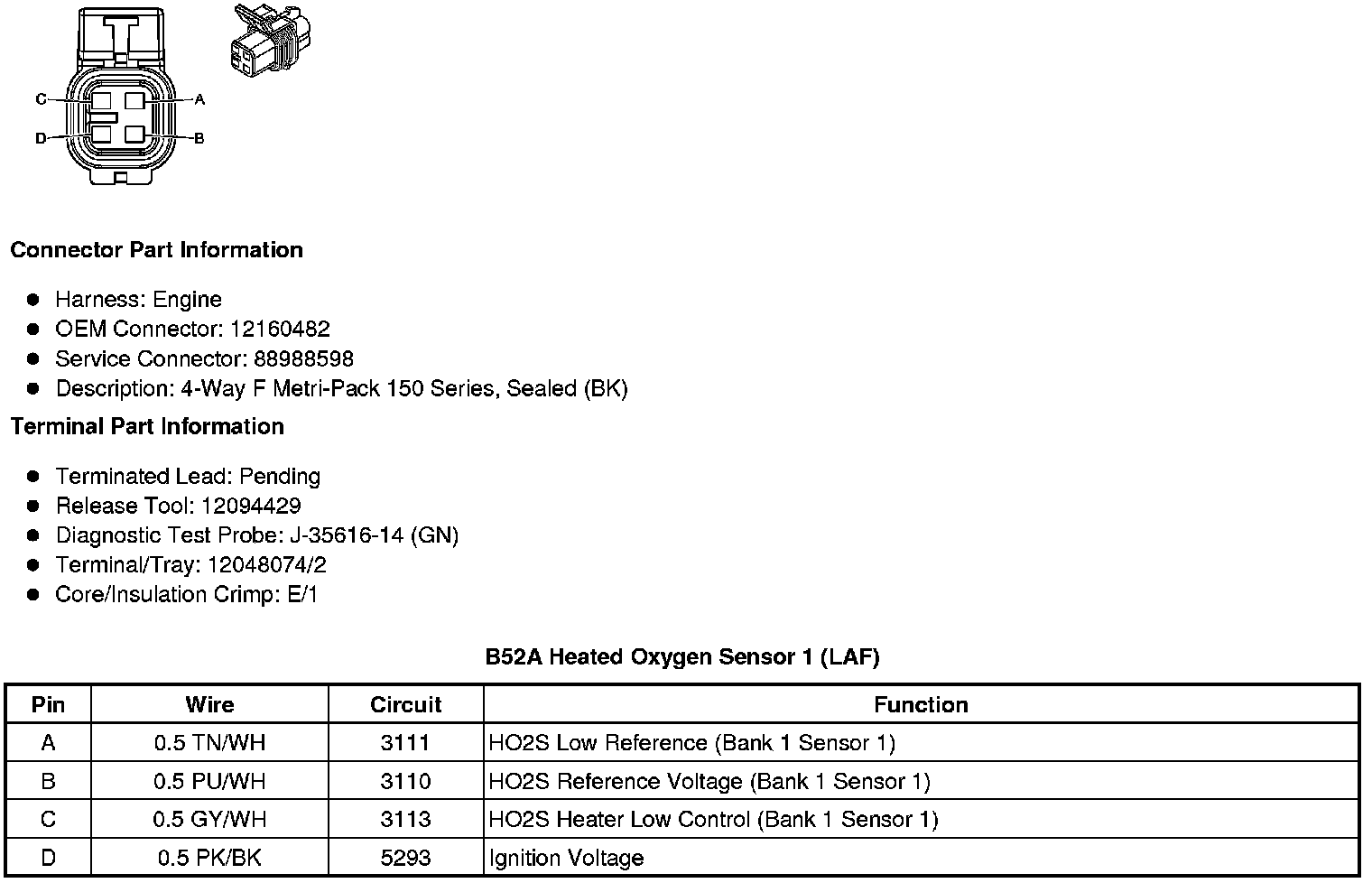

B52A Heated Oxygen Sensor 1 (LAF)

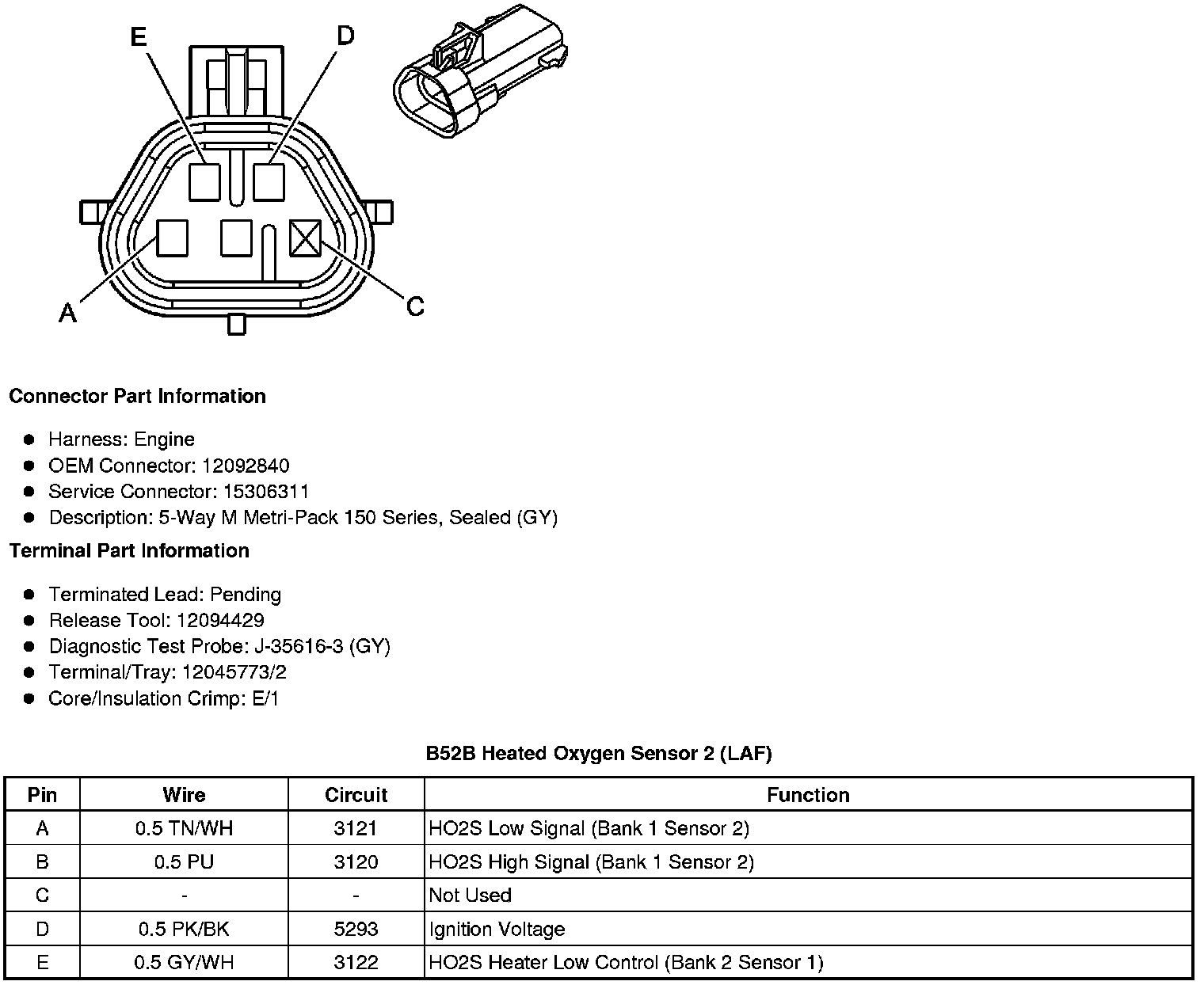

B52B Heated Oxygen Sensor 2 (LAF)





B52C Heated Oxygen Sensor - Bank 1 Sensor 1 (LF1)





B52D Heated Oxygen Sensor - Bank 1 Sensor 2 (LF1)

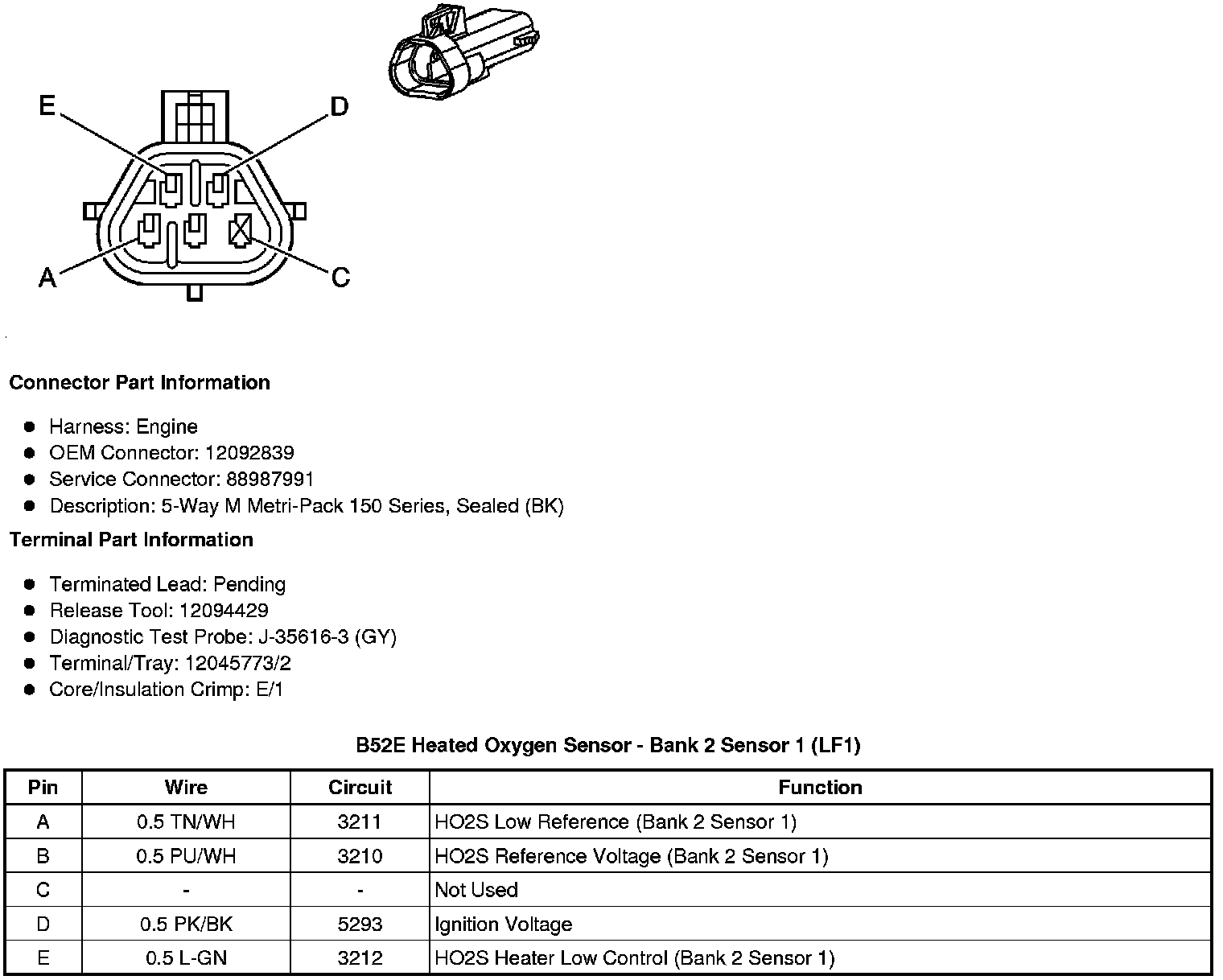

B52E Heated Oxygen Sensor - Bank 2 Sensor 1 (LF1)

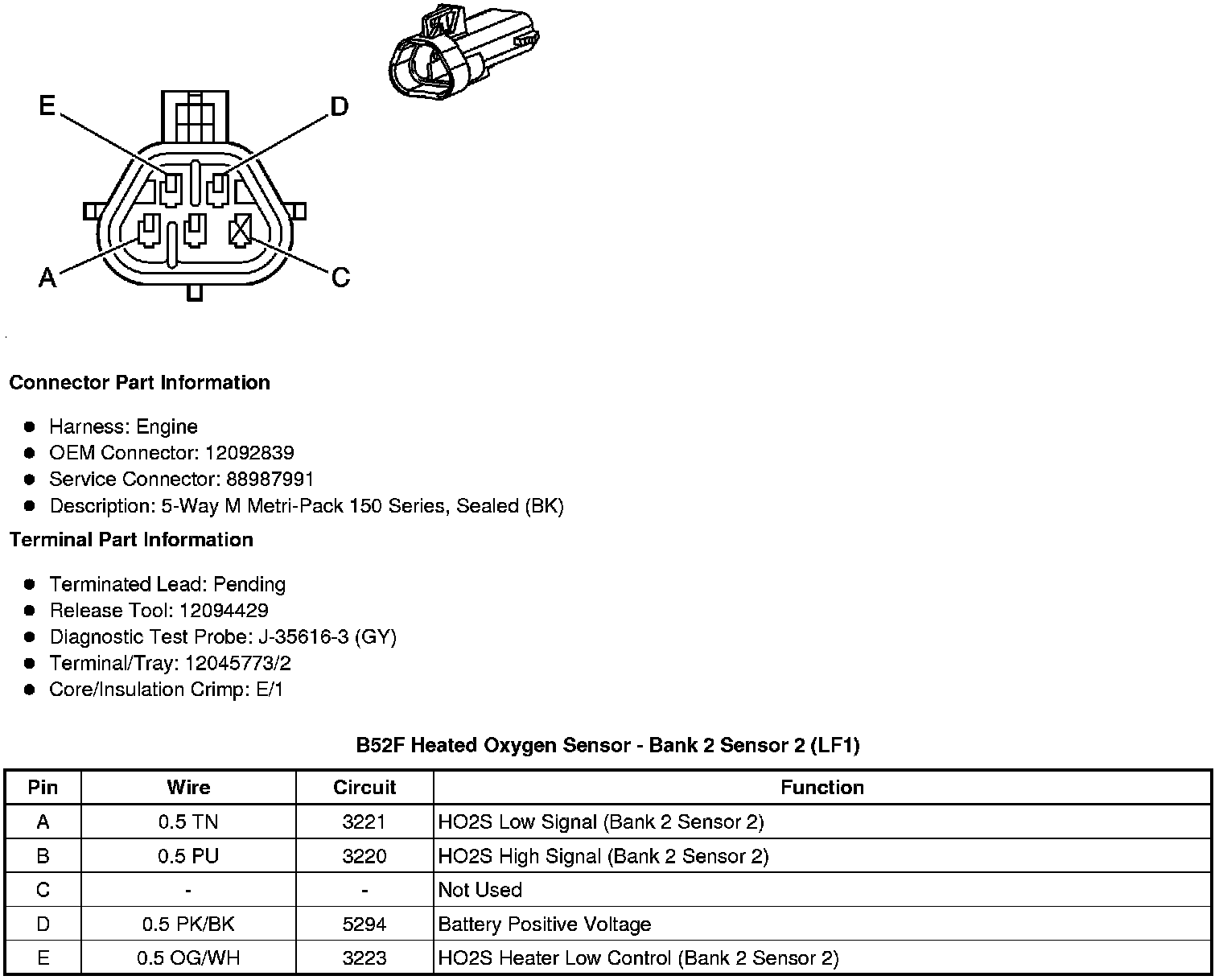

B52F Heated Oxygen Sensor - Bank 2 Sensor 2 (LF1)
