Fuel Pressure Sensor Replacement - Fuel Feed Pipe

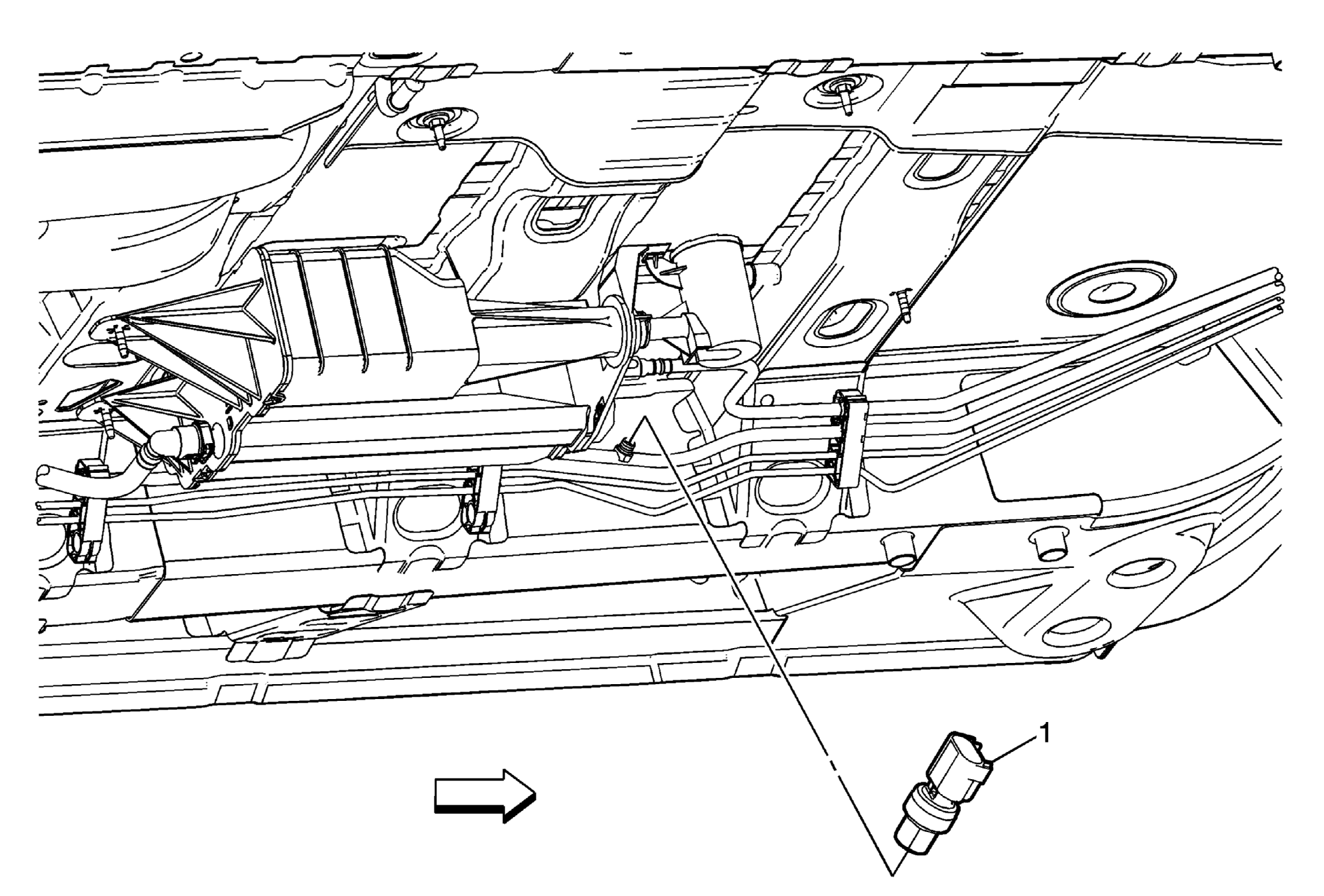

Fig 1: Fuel Pressure Sensor - Fuel Feed Pipe

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Relieve the fuel system pressure. Refer to Fuel Pressure Relief . Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Fuel Pressure Sensor CAUTION: Refer to Fastener Caution . Procedure: Disconnect the electrical connector. Tighten: 9 N.m (80 lb in)

Callout

Component Name

Preliminary Procedures

Fuel Pressure Sensor

CAUTION: Refer to Fastener Caution .

Procedure:
Disconnect the electrical connector.

Tighten: 9 N.m (80 lb in)
