Disassembled Views




Disassembled Views

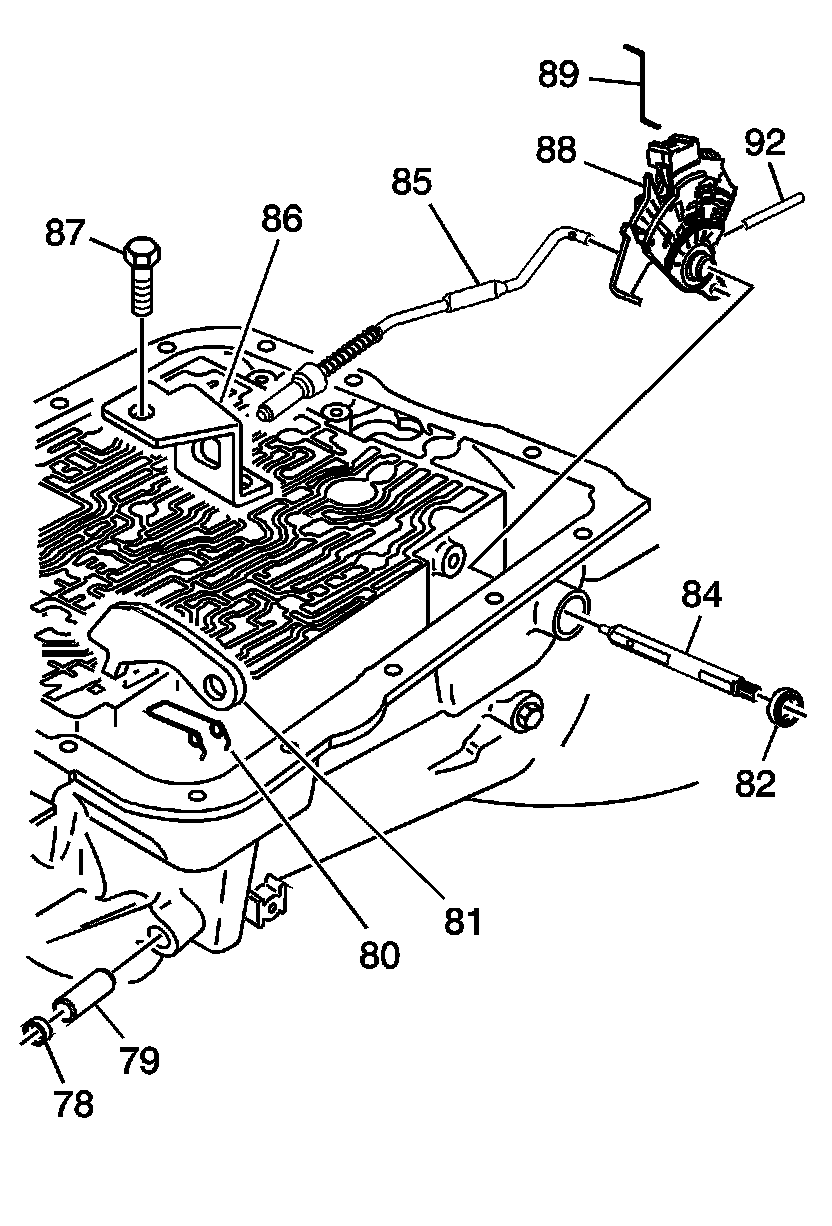

Parking Lock and Manual Shift Detent Lever with Shaft Position Switch Assembly




78 - Steel Cup Plug
79 - Parking Brake Pawl Shaft
80 - Parking Pawl Return Spring
81 - Parking Brake Pawl
82 - Manual Shaft Seal
84 - Manual Shaft - Model Dependent
85 - Parking Lock Actuator Assembly
86 - Parking Lock Bracket
87 - Parking Lock Bracket Bolt
88 - Manual Shift Detent Lever with Shaft Position Switch Assembly
89 - Manual Valve Link
92 - Manual Shift Detent Lever Hub Pin
