Vehicle Speed Sensor: Diagrams




Component Connector End Views

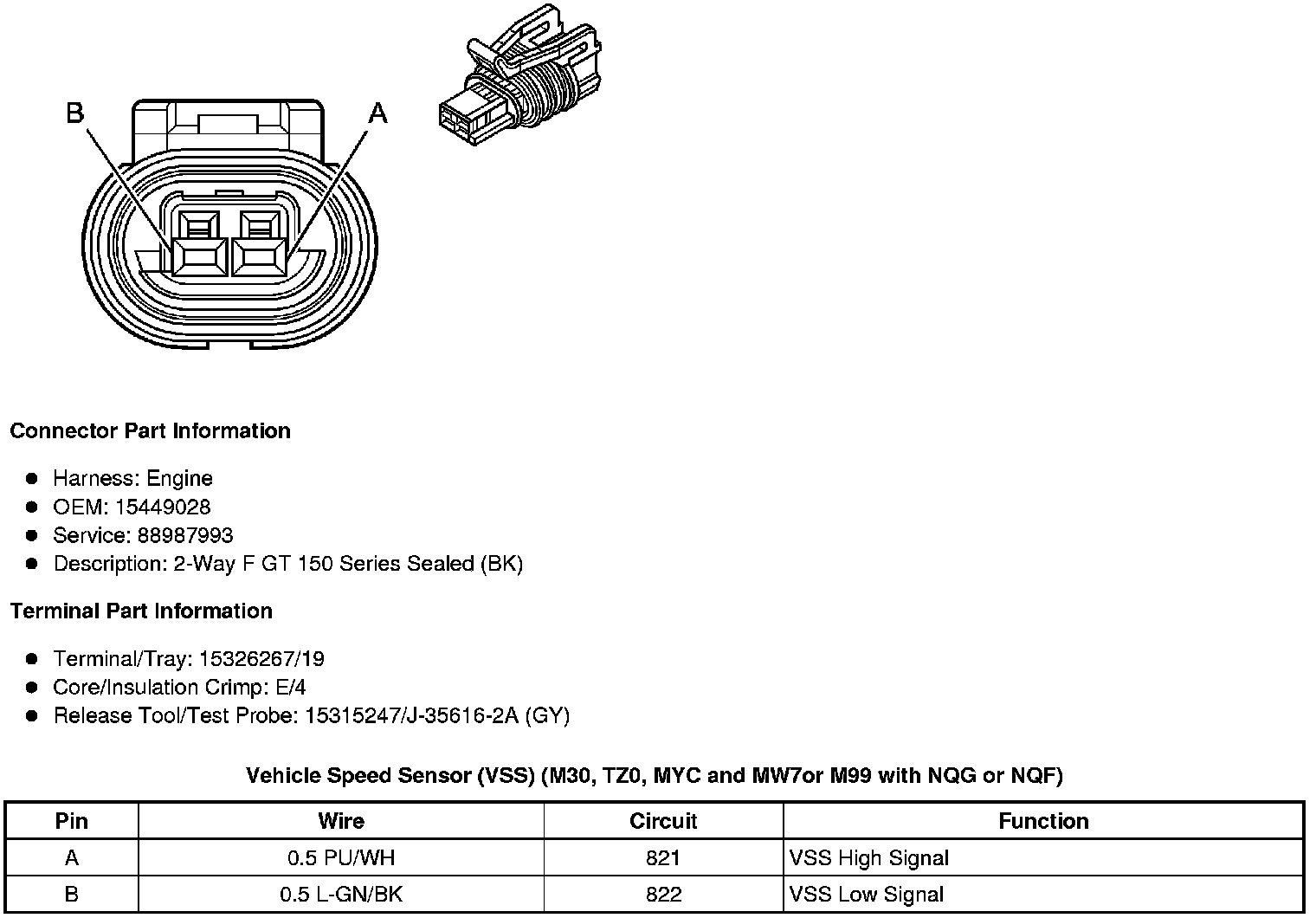

Vehicle Speed Sensor (VSS) (M30, TZ0, MYC and MW7or M99 with NQG or NQF)

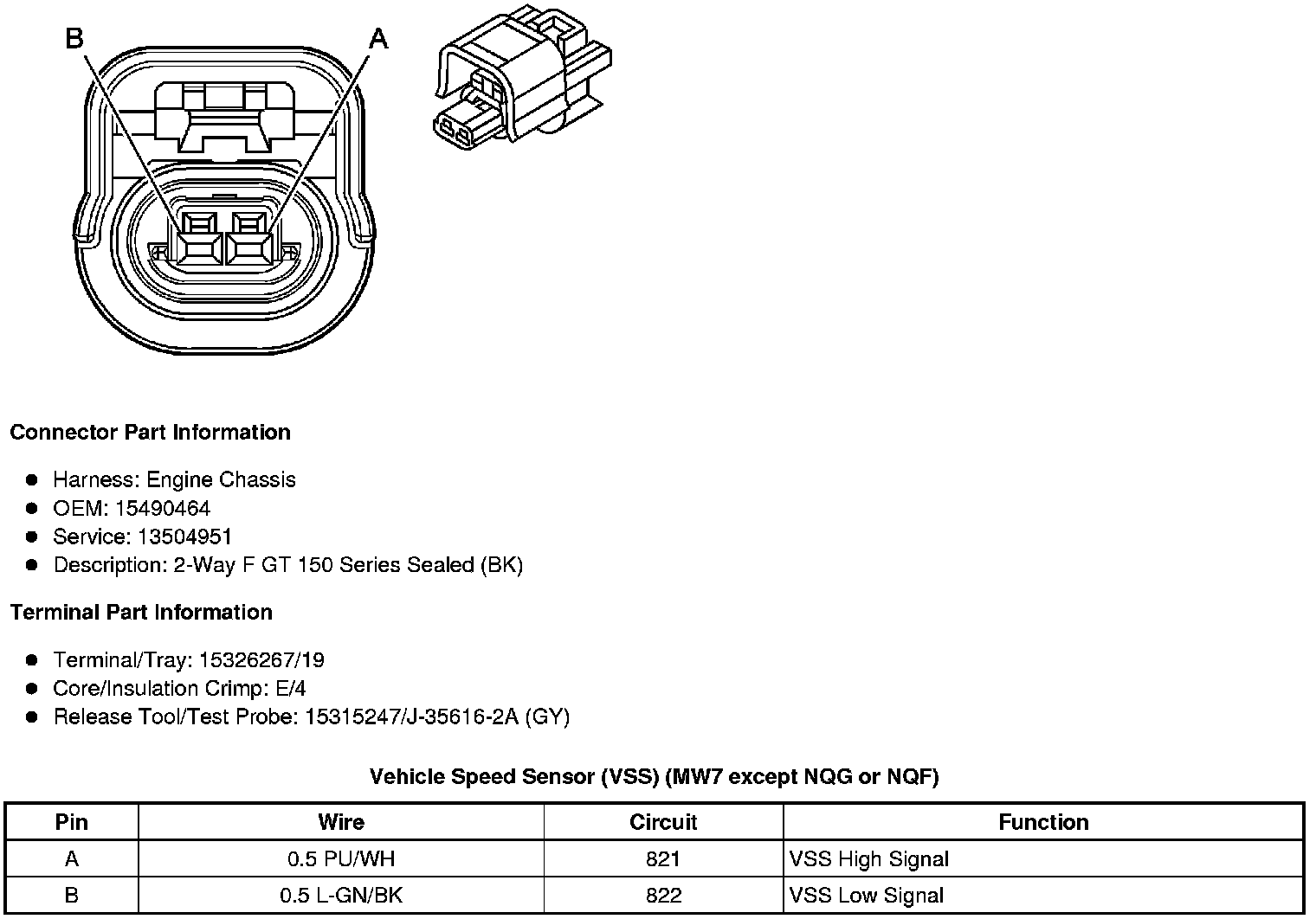

Vehicle Speed Sensor (VSS) (MW7 except NQG or NQF)
