Vehicle Speed Sensor: Locations

Harness Routing Views

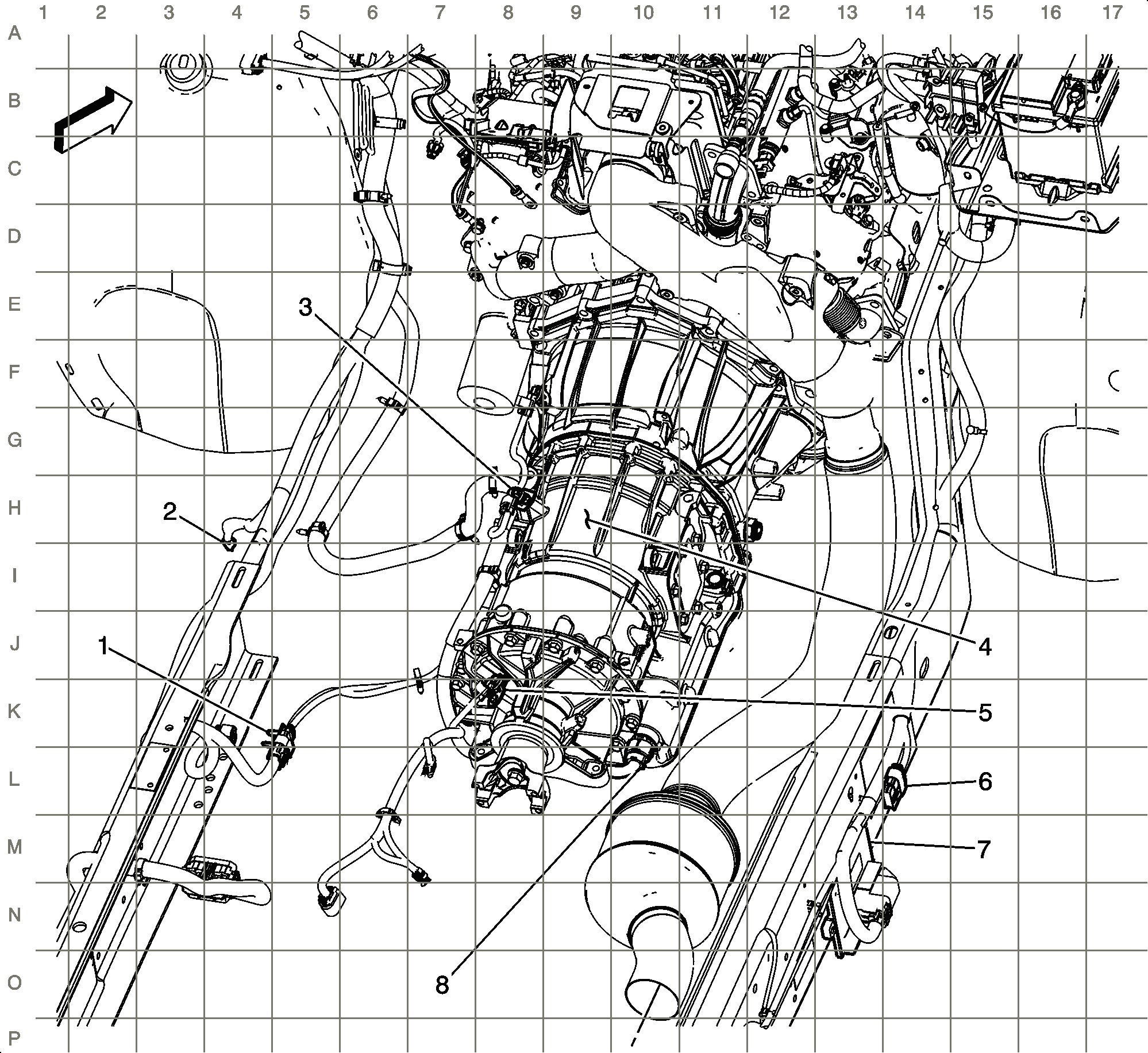

Engine Chassis Harness Routing - Rear (Diesel)




1 - X300
2 - G300
3 - Automatic Transmission Turbine Speed Sensor (MW7)
4 - Automatic Transmission (MW7)
5 - Vehicle Speed Sensor (VSS) (MW7)
6 - X124 (PTO)
7 - Power Take Off (PTO) Module (PTO)
8 - X175 (MW7)
