Power Trunk / Liftgate Control Module: Locations

Luggage Compartment/Rear of Vehicle Component Views

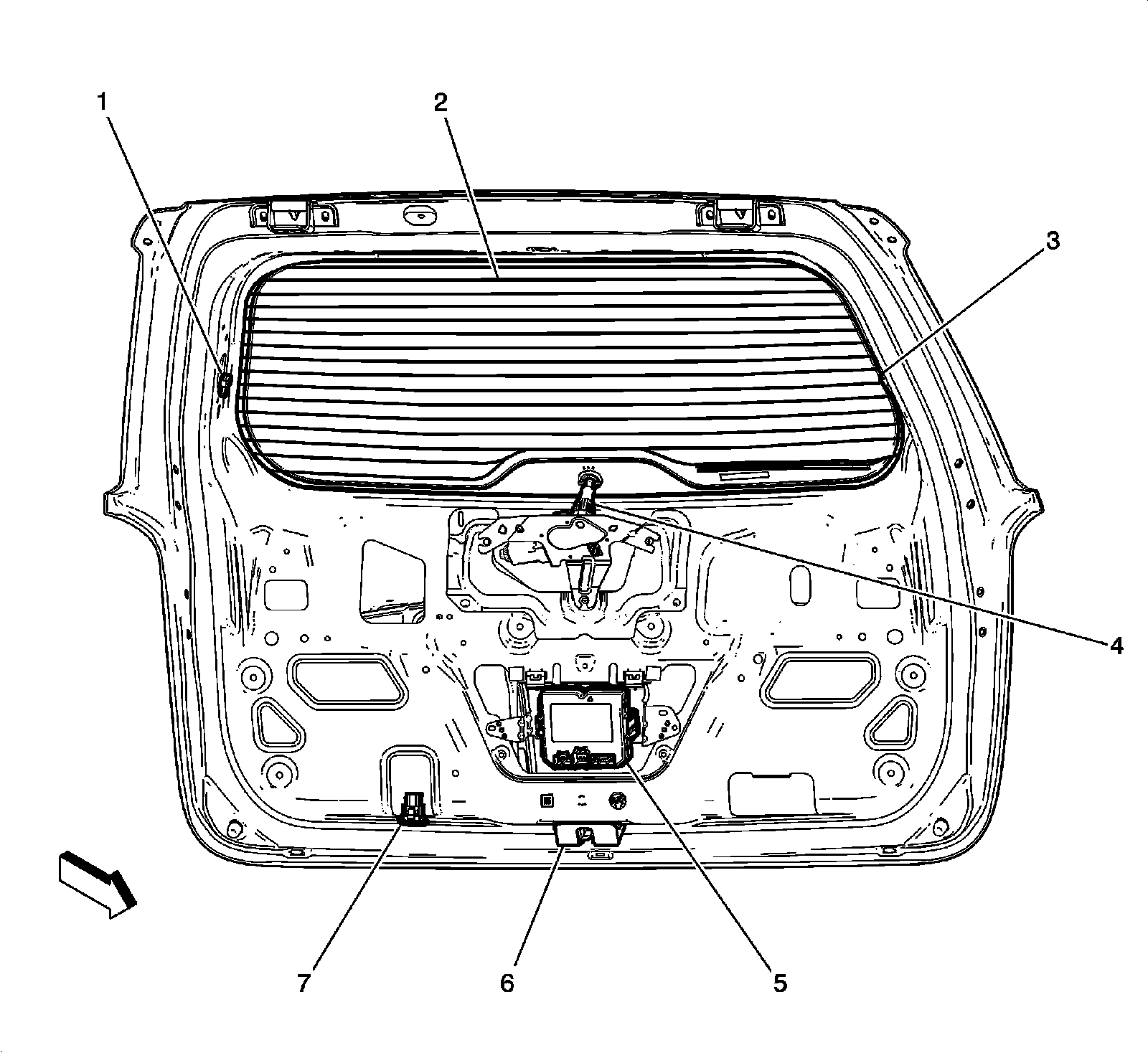

Liftgate Components




1 - B71R Liftgate Object Sensor - Right (TB5)
2 - E18 Rear Defogger Grid
3 - B71L Liftgate Object Sensor - Left (TB5)
4 - M45 Rear Wiper Motor
5 - K39 Liftgate Control Module (TB5)
6 - A23C Liftgate Latch Assembly
7 - B70 Liftgate Close Switch (TB5)
