Immobilizer System Wiring Schematics

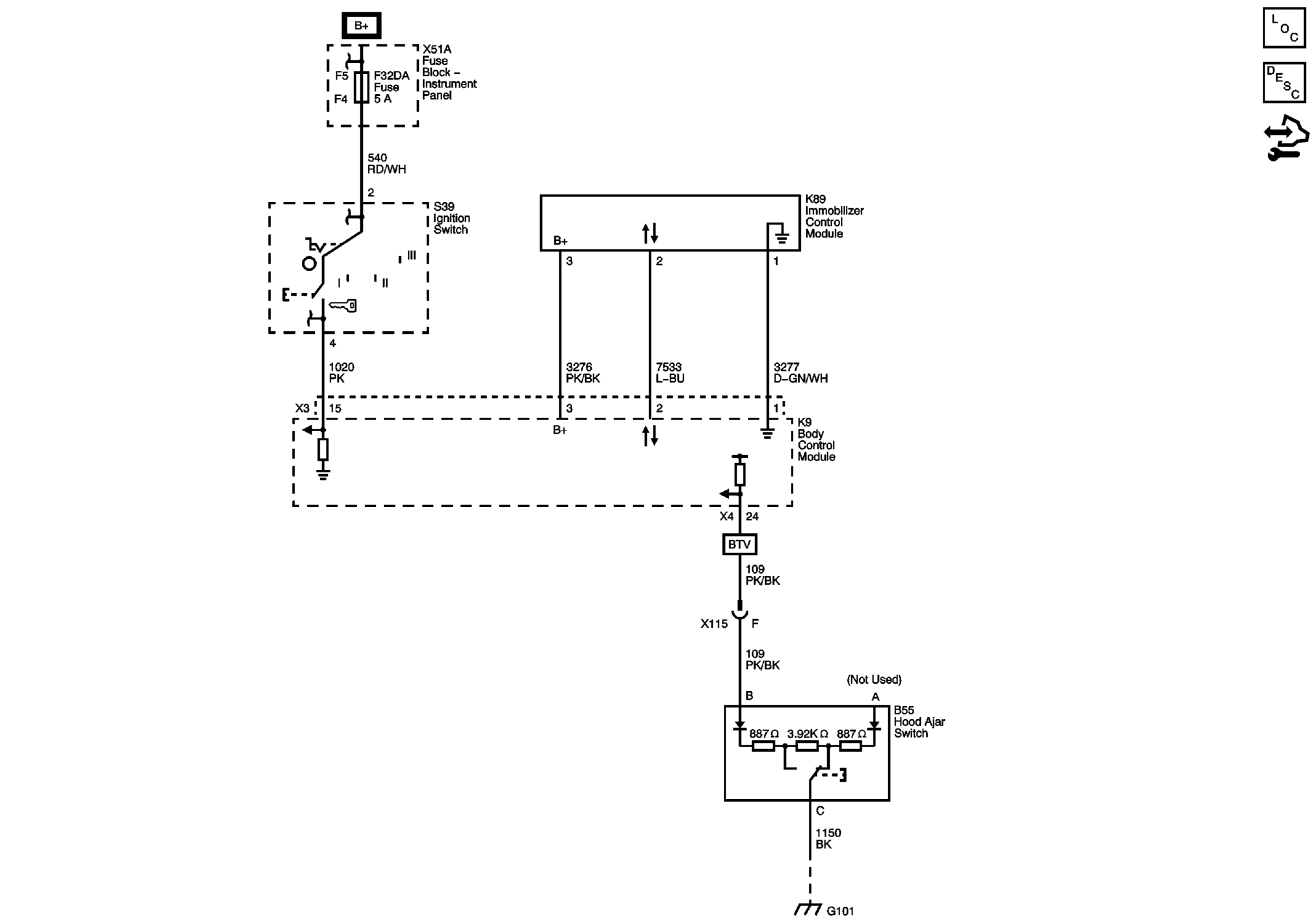

Fig 1: Immobilizer System Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
