Fuel Level Sensor: Service and Repair

Fuel Level Sensor Replacement

Removal Procedure




1. Remove the fuel tank module. Refer to Fuel Tank Fuel Pump Module Replacement .

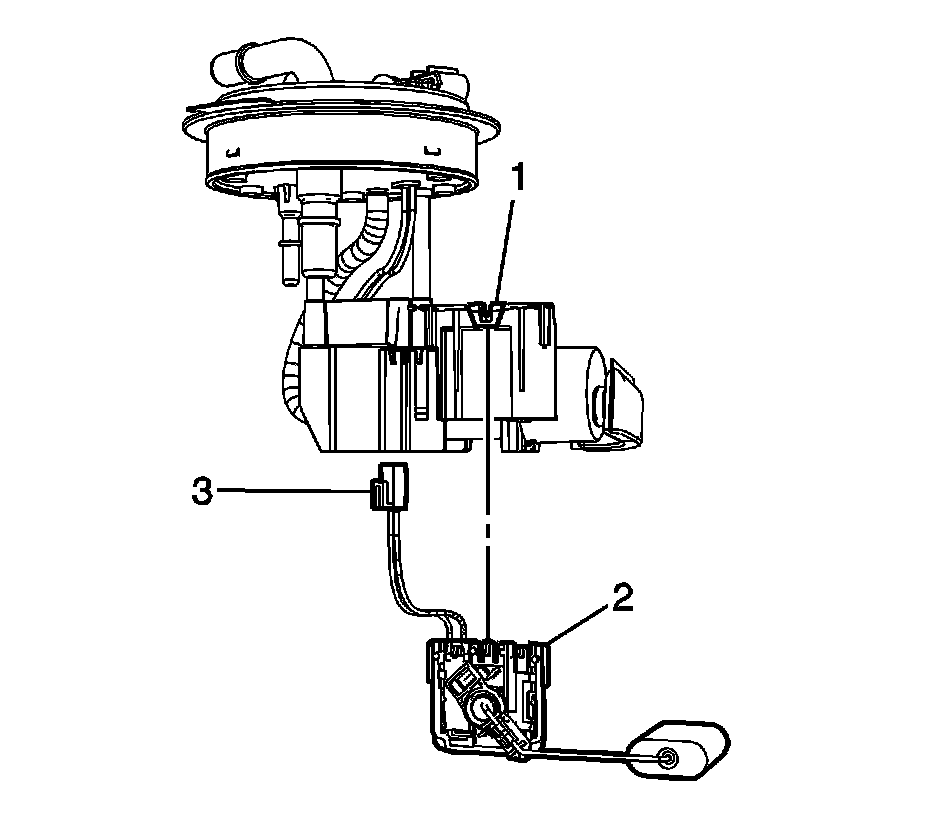

2. Disconnect the fuel level sensor electrical connector (3) from under the module cover.
3. Release the level sensor retaining clip (1).
4. Slide the fuel level sensor (2) down off the bucket.

Installation Procedure




1. Slide the fuel level sensor (2) up onto the bucket until the sensor engages the retaining tab (1).
2. Connect the fuel level sensor electrical connector (3) under the module cover.
3. Install the fuel tank module. Refer to Fuel Tank Fuel Pump Module Replacement .
