Auxiliary Fluid Pump Control Module Replacement

Auxiliary Fluid Pump Control Module Replacement

Removal Procedure

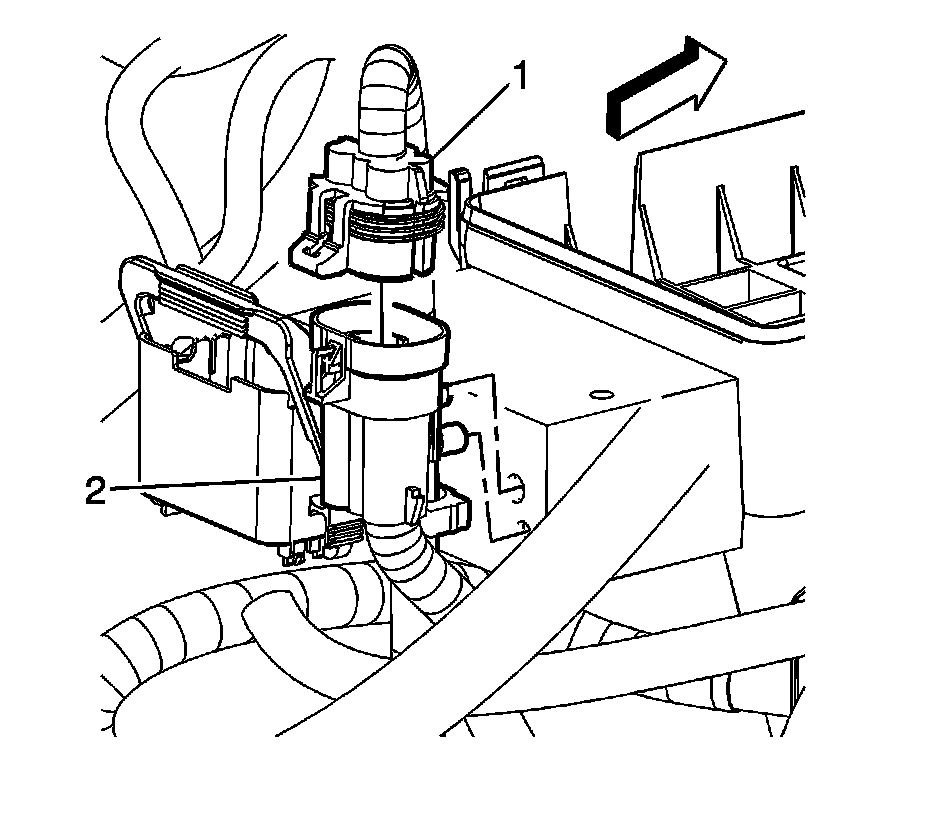

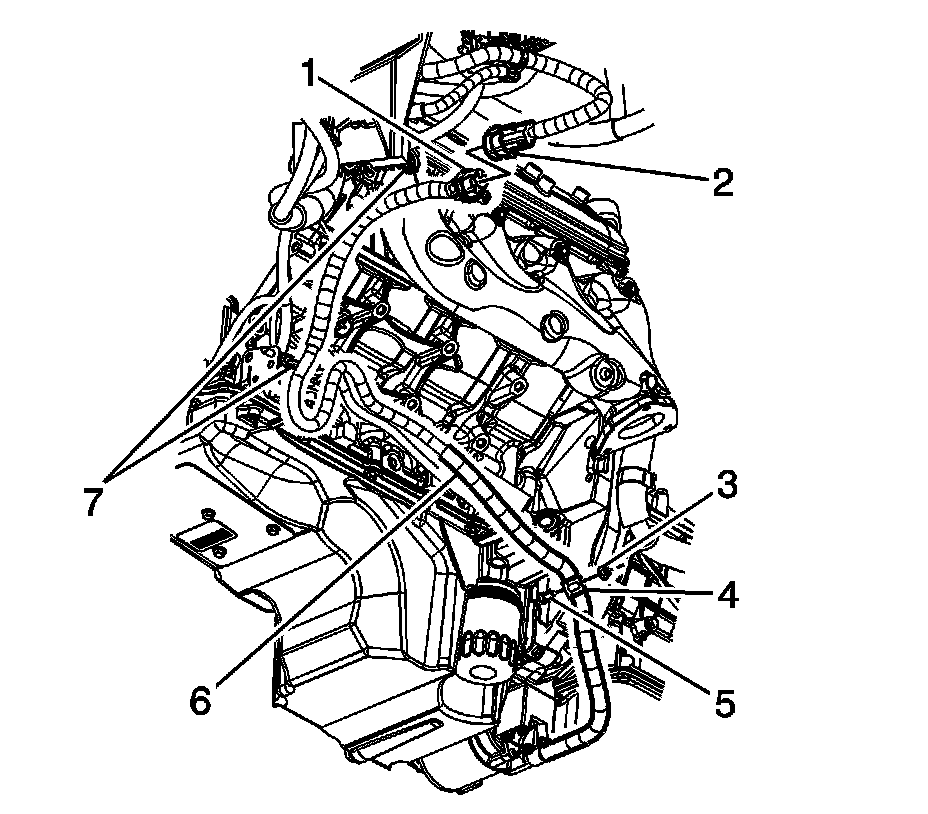

1. Disconnect the auxiliary fluid pump electrical wire harness connector (1) from the auxiliary fluid pump control module connector (2).




2. Disconnect the auxiliary fluid pump control module electrical connector (1) from the engine wiring harness electrical connector (2).




3. Remove the auxiliary fluid pump control module electrical connector (1) from the auxiliary fuse block.

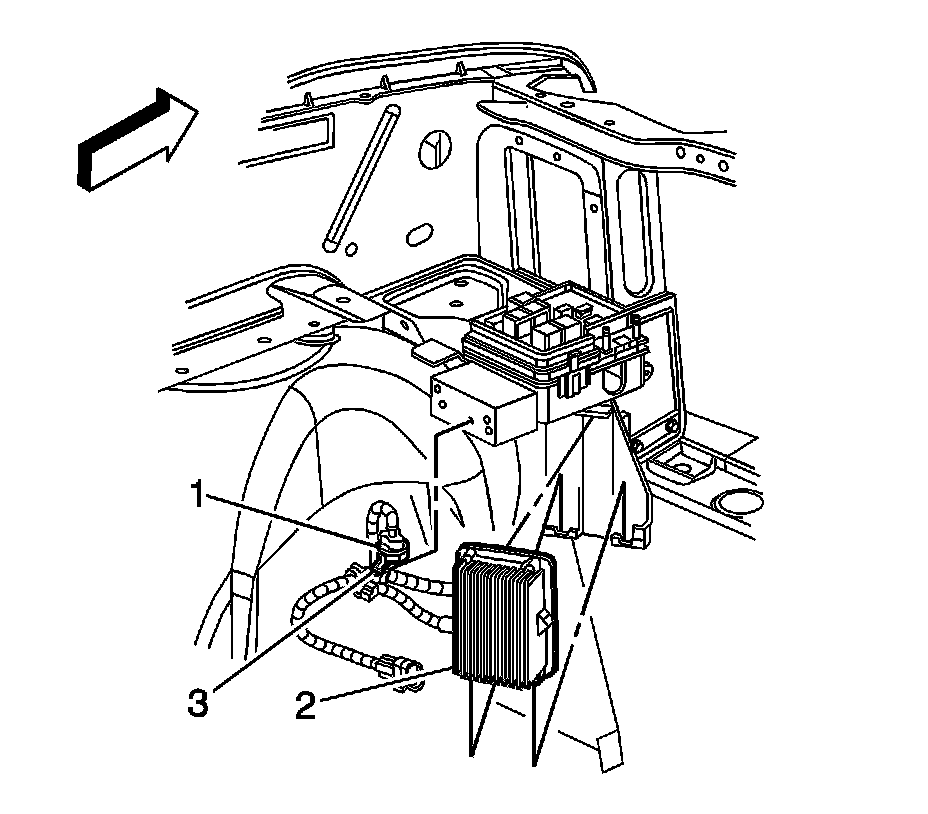

4. Remove the auxiliary fluid pump control module (2) from the engine control module bracket.

Installation Procedure




1. Install the auxiliary fluid pump control module (2) to the engine control module bracket.
2. Install the auxiliary fluid pump control module electrical connector (1) to the auxiliary fuse block.




3. Connect the auxiliary fluid pump control module electrical connector (1) to the engine wiring harness electrical connector (2).




4. Connect the auxiliary fluid pump electrical wire harness connector (1) to the auxiliary fluid pump control module connector (2).
