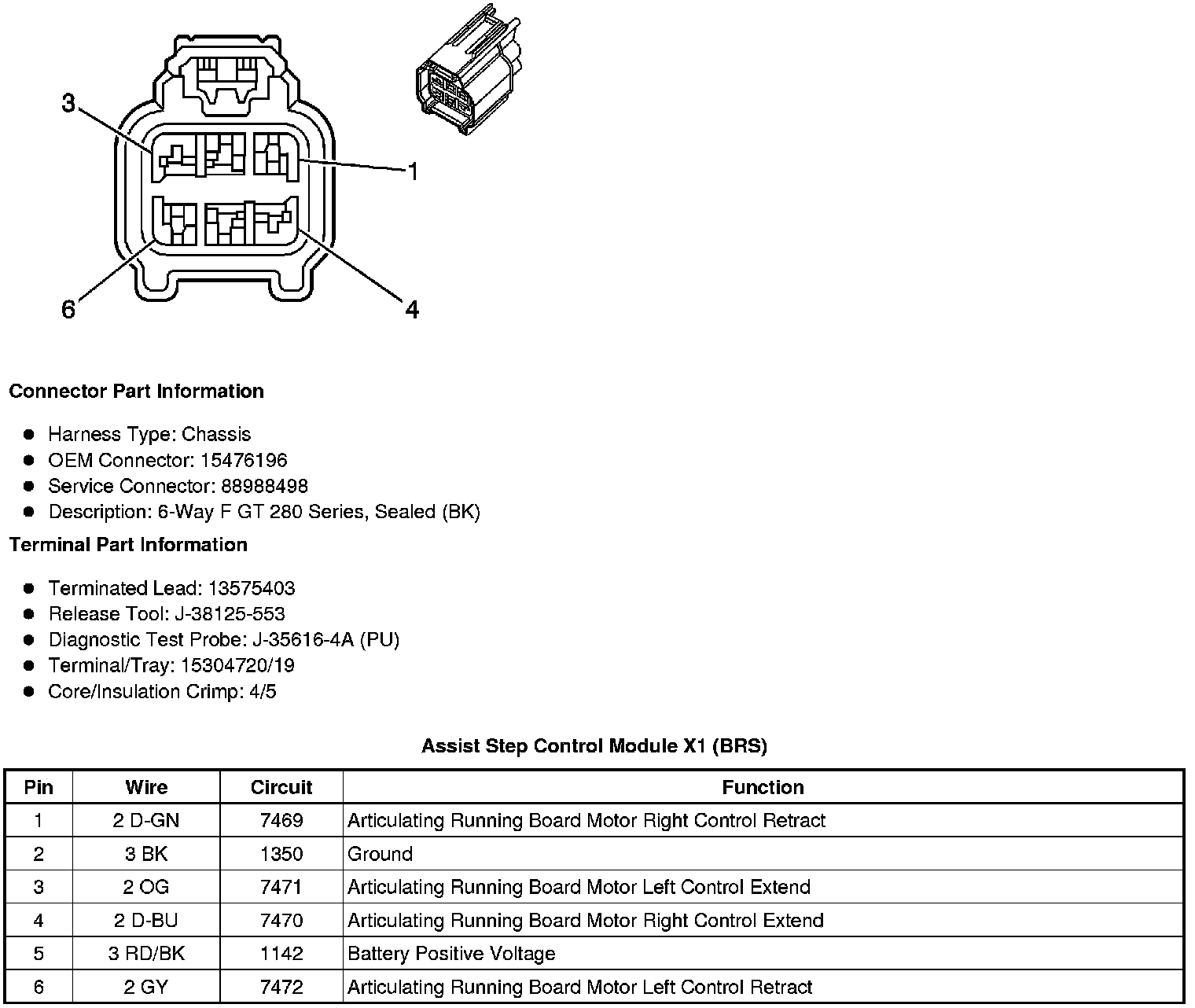

Assist Step Control Module X1 (BRS)
Component Connector End Views
Assist Step Control Module X1 (BRS)
