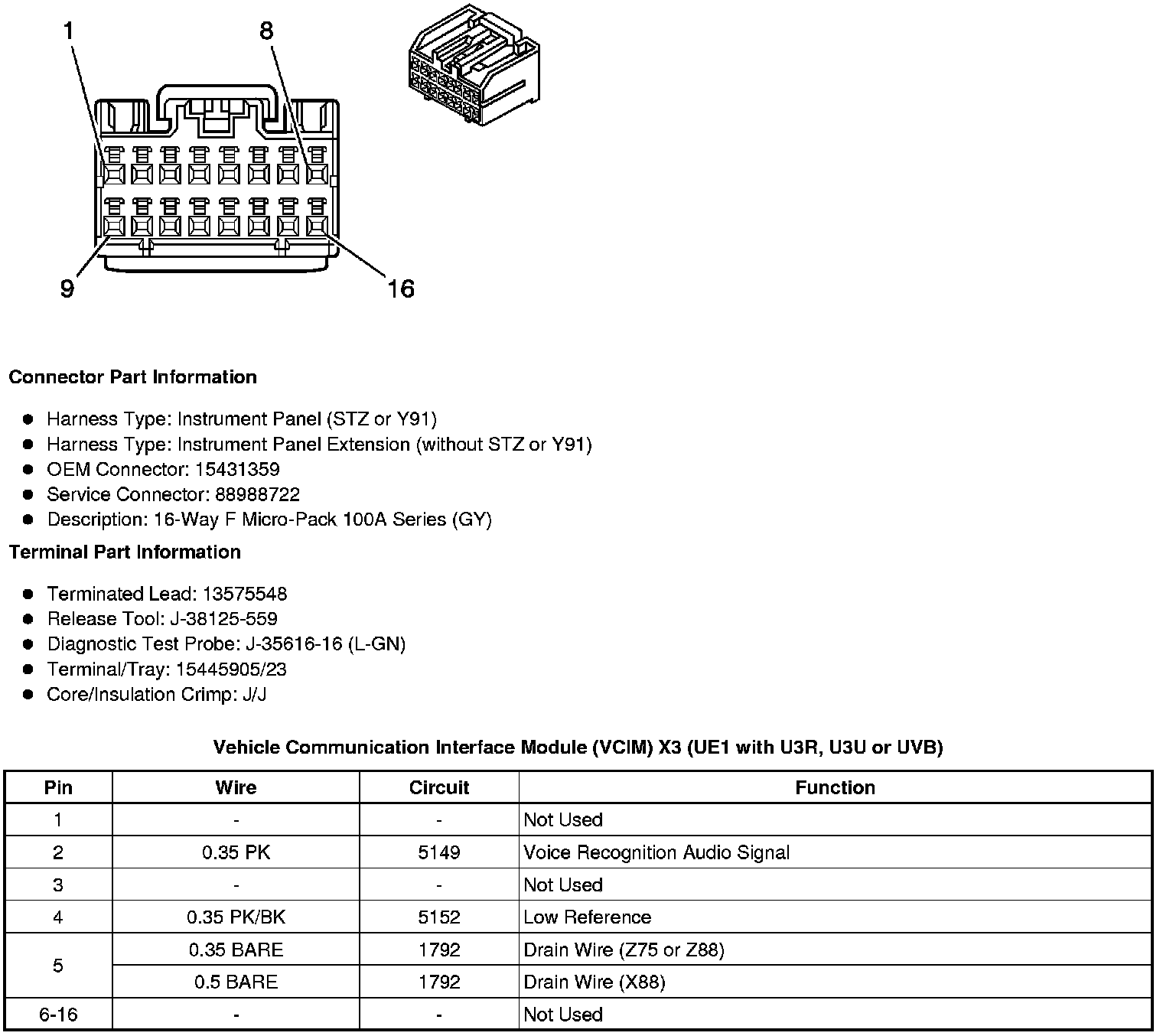

Vehicle Communication Interface Module (VCIM) X3 (UE1 with U3R, U3U or UVB)




Component Connector End Views

Vehicle Communication Interface Module (VCIM) X3 (UE1 with U3R, U3U or UVB)
