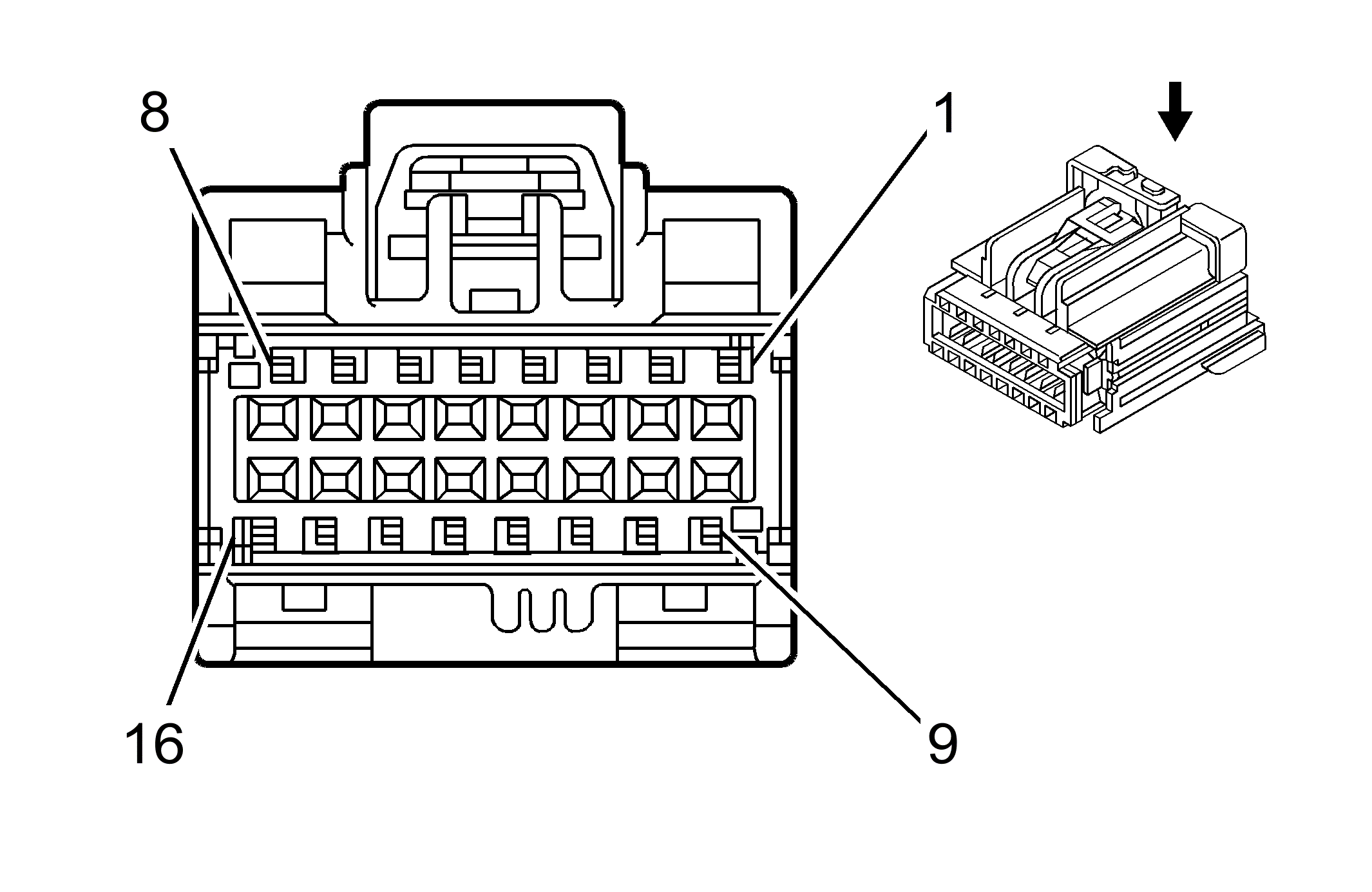

| 1 |
0.35 BN/WH |
367 |
Left Audio Signal (+) (U2K or UBS) |
| 2 |
0.35 D-GN/WH |
368 |
Right Audio Signal (+) (U2K or UBS) |
| 3 |
0.35 BARE |
1574 |
Drain Wire (UQA or UQS) |
| 4 |
- |
- |
Not Used |
| 5 |
0.35 BN/WH |
599 |
Left Rear Low Level Audio Signal (+) (without UQF) |
| 0.35 BN |
199 |
Left Rear Speaker Output (+) (UQF without ULD) |
| 6 |
0.35 D-BU |
46 |
Right Rear Speaker Output (+) (UQF without ULD) |
| 0.35 D-BU |
546 |
Right Rear Low Level Audio Signal (+) (without UQF) |
| 7 |
0.35 OG/BK |
1406 |
Remote Playback Device Left Audio Signal (UE1) |
| 8 |
0.35 OG |
5748 |
Radio Audio Mute Signal (without UQF) |
| 9 |
0.35 TN/WH |
372 |
Left Audio Signal (-) (U2K or UBS) |
| 10 |
0.35 GY |
388 |
Right Audio Signal (-) (U2K or UBS) |
| 11 |
0.35 BARE |
6131 |
Drain Wire (U2K or UBS) |
| 12 |
- |
- |
Not Used |
| 13 |
0.35 BN |
1999 |
Left Rear Low Level Audio Signal (-) (ULD without UQF) |
| 0.35 YE |
116 |
Left Rear Speaker Output (-) (UQF without ULD) |
| 14 |
0.35 TN |
1946 |
Right Rear Low Level Audio Signal (-) (ULD without UQF) |
| 0.35 L-BU |
115 |
Right Rear Speaker Output (-) (UQF without ULD) |
| 15 |
0.35 L-BU |
1405 |
Remote Playback Device Audio Common Signal (UE1) |
| 16 |
- |
- |
Not Used |
