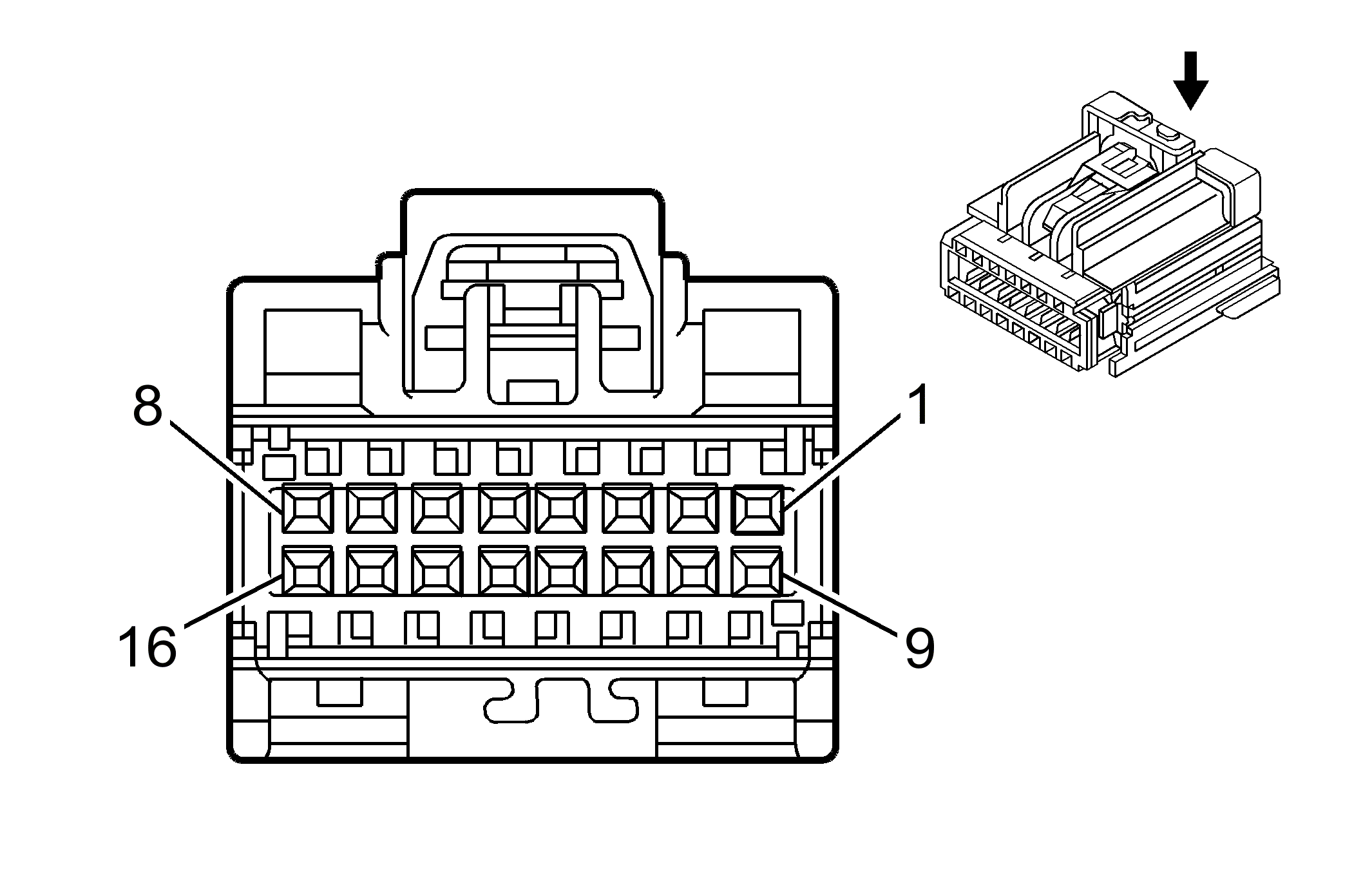

Radio X4

GM1856802Courtesy of
Connector Part Information
  • Harness Type: Instrument Panel
  • OEM Connector: 7283-9284-80
  • Service Connector: 19153194
  • Description: 16-Way F YESC Kaizen Series (BN)
Terminal Part Information
  • Terminated Lead: 13575845
  • Release Tool: J-38125-215A
  • Diagnostic Test Probe: J-35616-64B (L-BU)
  • Terminal/Tray: SAIT-A03T-M064/14
  • Core/Insulation Crimp: P/P
Radio X4

Pin Wire Circuit Function
1-2 - - Not Used
3 0.5 D-BU 6760 Center Speaker High (UQS)
4 0.5 WH 6763 Subwoofer Speaker High (UQS)
5 0.5 D-GN/WH 817 Vehicle Speed Signal (UUM or UUK or U4H)
6 0.35 PK 6972 Camera Signal (+) (UVC with UUM or UUK or U4H)
7 0.35 L-BU 6973 Camera Signal (-) (UVC with UUM or UUK or U4H)
8-10 - - Not Used
11 0.5 OG 6761 Center Speaker Low (UQS)
12 0.5 PK 6762 Subwoofer Speaker Low (UQS)
13 0.5 BARE 5838 Drain Wire (UQS)
14-16 - - Not Used
