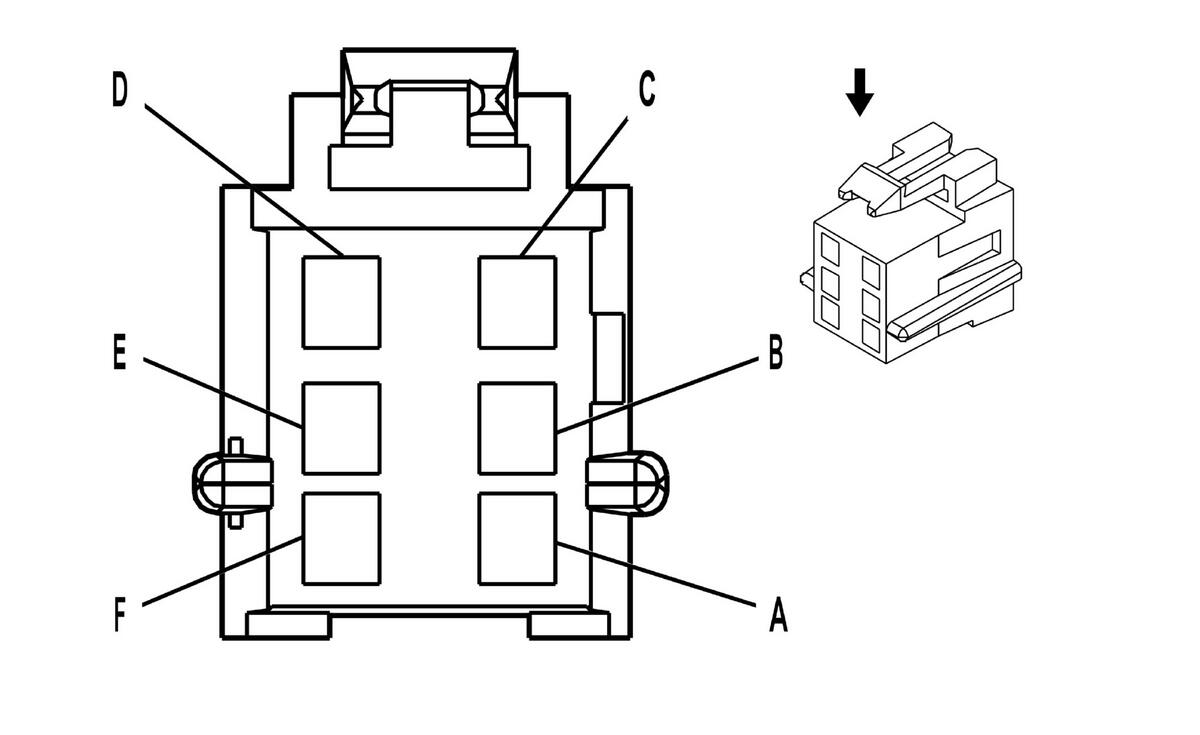

Seat Back Ventilation Heating and Cooling Module - Driver (KB6)
 Courtesy of
|
Connector Part Information
- Harness Type: Driver Seat
- OEM Connector: 12064752
- Service Connector: 15305888
- Description: 6-Way F Metri-Pack 280 Series (BK)
|
Terminal Part Information
- Pins A, C
- Terminated Lead: Pending
- Release Tool: J-38125-11A
- Diagnostic Test Probe: J-35616-4A (PU)
- Terminal/Tray: 12066214/2
- Core/Insulation Crimp: A/B
- Pins B, D, E
- Terminated Lead: Pending
- Release Tool: J-38125-11A
- Diagnostic Test Probe: J-35616-4A (PU)
- Terminal/Tray: 12034046/2
- Core/Insulation Crimp: E/A
|
Seat Back Ventilation Heating and Cooling Module - Driver (KB6)
| Pin |
Wire |
Circuit |
Function |
| A |
2 RD/WH |
640 |
Battery Positive Voltage |
| B |
0.35 L-BU/WH |
181 |
Left Heated/Cooled Seat Mode Signal |
| C |
2 BK |
550 |
Ground |
| D |
0.35 D-BU |
2425 |
Seat Back Temperature Sensor Signal |
| E |
0.35 PK |
2426 |
Low Reference |
| F |
- |
- |
Not Used |
