Vehicle Communication Interface Module (VCIM) (UE1)

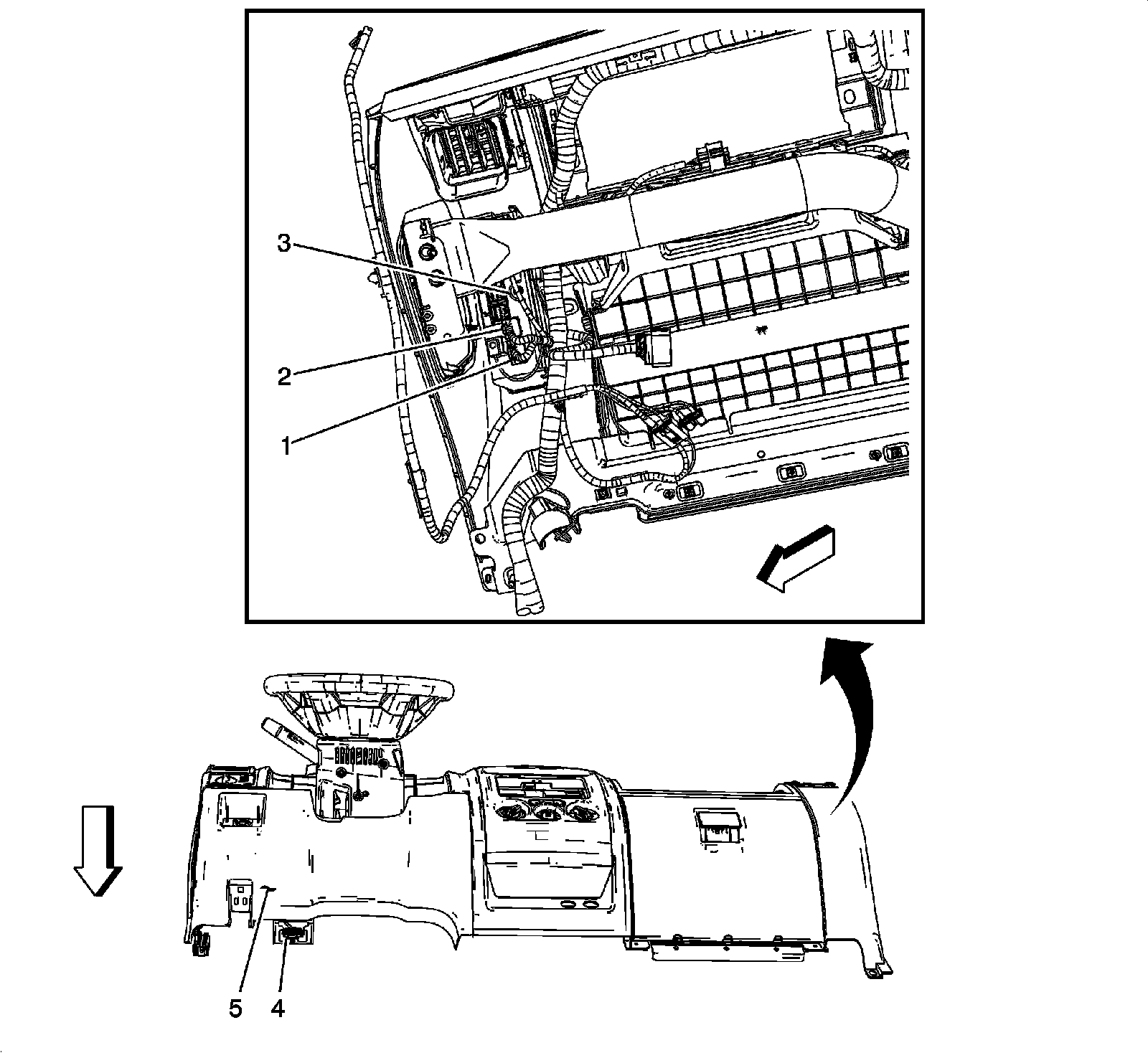

Instrument Panel/Center Console Component Views

Bottom of I/P and Behind I/P Compartment Components




1 - Vehicle Communication Interface Module (VCIM) X1 (UE1)
2 - Vehicle Communication Interface Module (VCIM) X2 (UE1)
3 - Vehicle Communication Interface Module (VCIM) (UE1)
4 - Data Link Connector (DLC)
5 - Inline Fuse - Ignition Switch
