Ignition Control Module: Locations

Powertrain Component Views

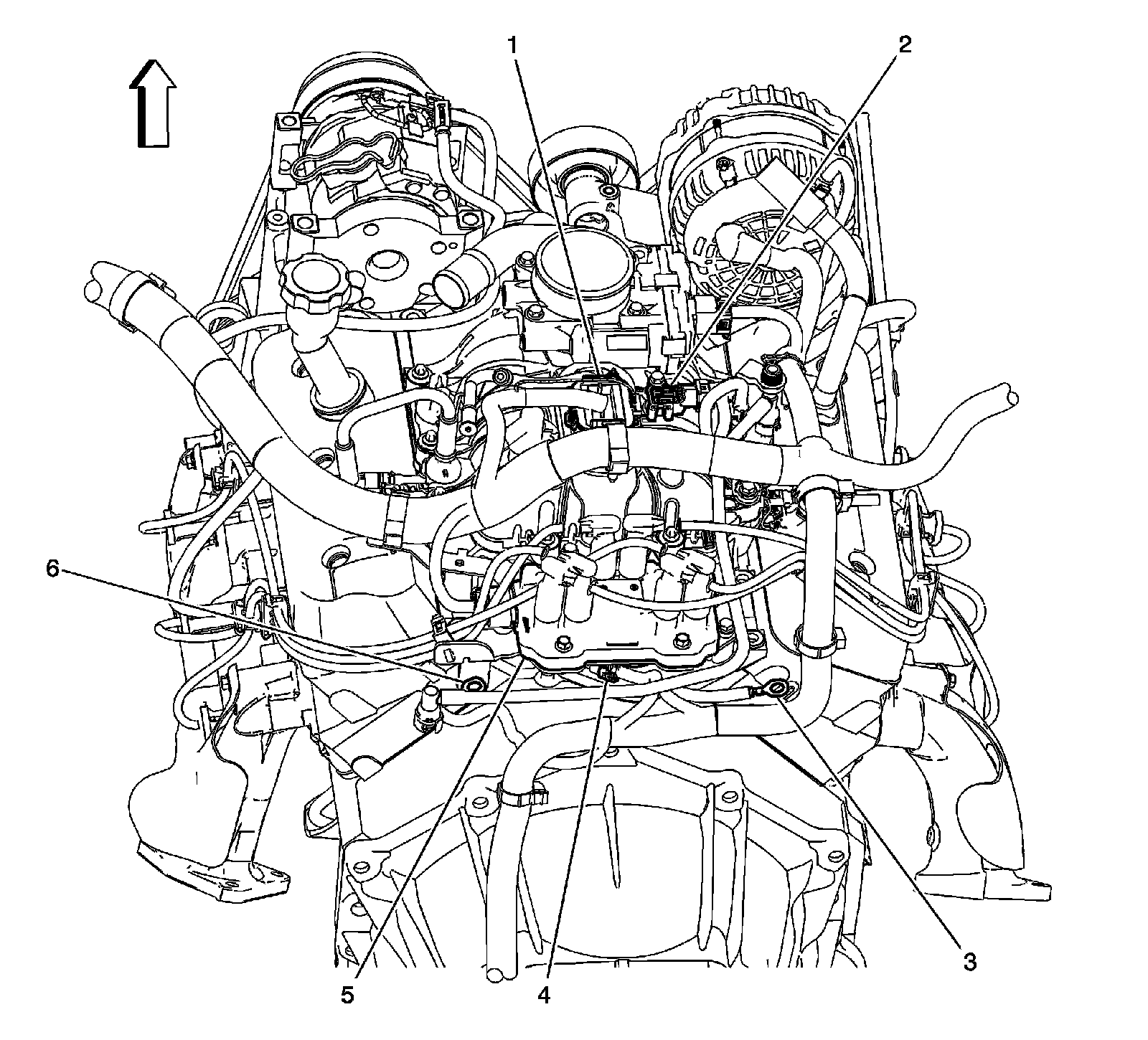

Rear of the Engine Components (4.3L)




1 - Central Sequential Fuel Injection (Central SFI) Module
2 - Manifold Absolute Pressure (MAP) Sensor
3 - G106
4 - Engine Oil Pressure (EOP) Sensor
5 - Ignition Control Module (ICM)
6 - G107
