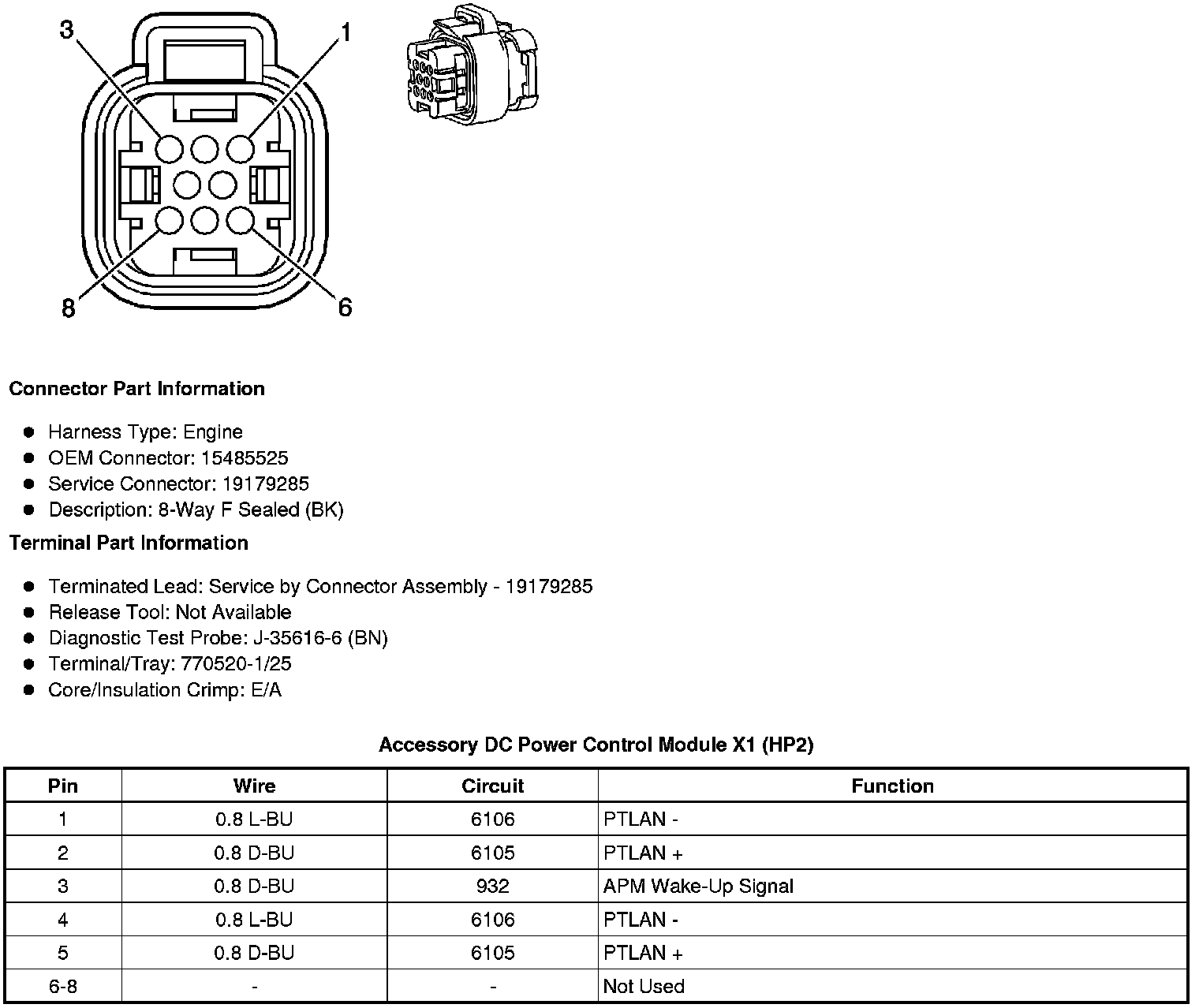

Accessory DC Power Control Module X1
Component Connector End Views
Accessory DC Power Control Module X1 (HP2)
