Memory Seat Module (MSM) (AN3)

Passenger Compartment/Roof Component Views

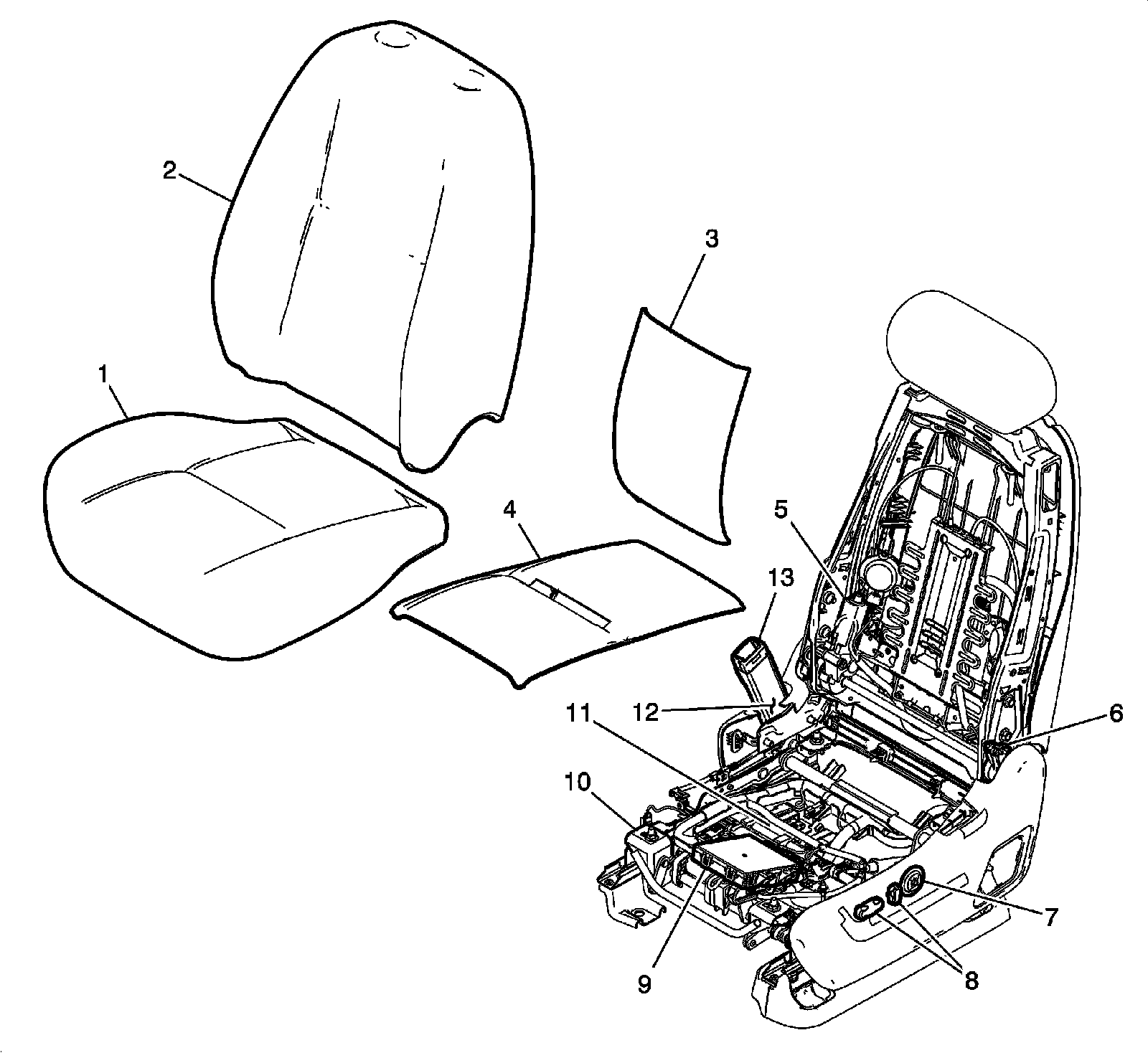

Driver Seat Components (2 of 2)




1 - Driver Seat Cushion
2 - Driver Seat Back Cushion
3 - Heated Seat Element - Driver Back (AN3 or KA1)
4 - Heated Seat Element - Driver Cushion (AN3 or KA1)
5 - Seat Recline Motor - Driver (AN3)
6 - Seat Recline Postion Sensor - Driver (AN3)
7 - Seat Lumbar Switch - Driver (AN3)
8 - Seat Adjuster Switch - Driver
9 - Memory Seat Module (MSM) (AN3)
10 - Inflatable Restraint Seat Position Sensor - Driver
11 - Seat Adjuster Motor Assembly - Driver (except HP2)
12 - Inflatable Restraint Seat Belt Tension Sensor - Driver
13 - Seat Belt Switch - Driver
