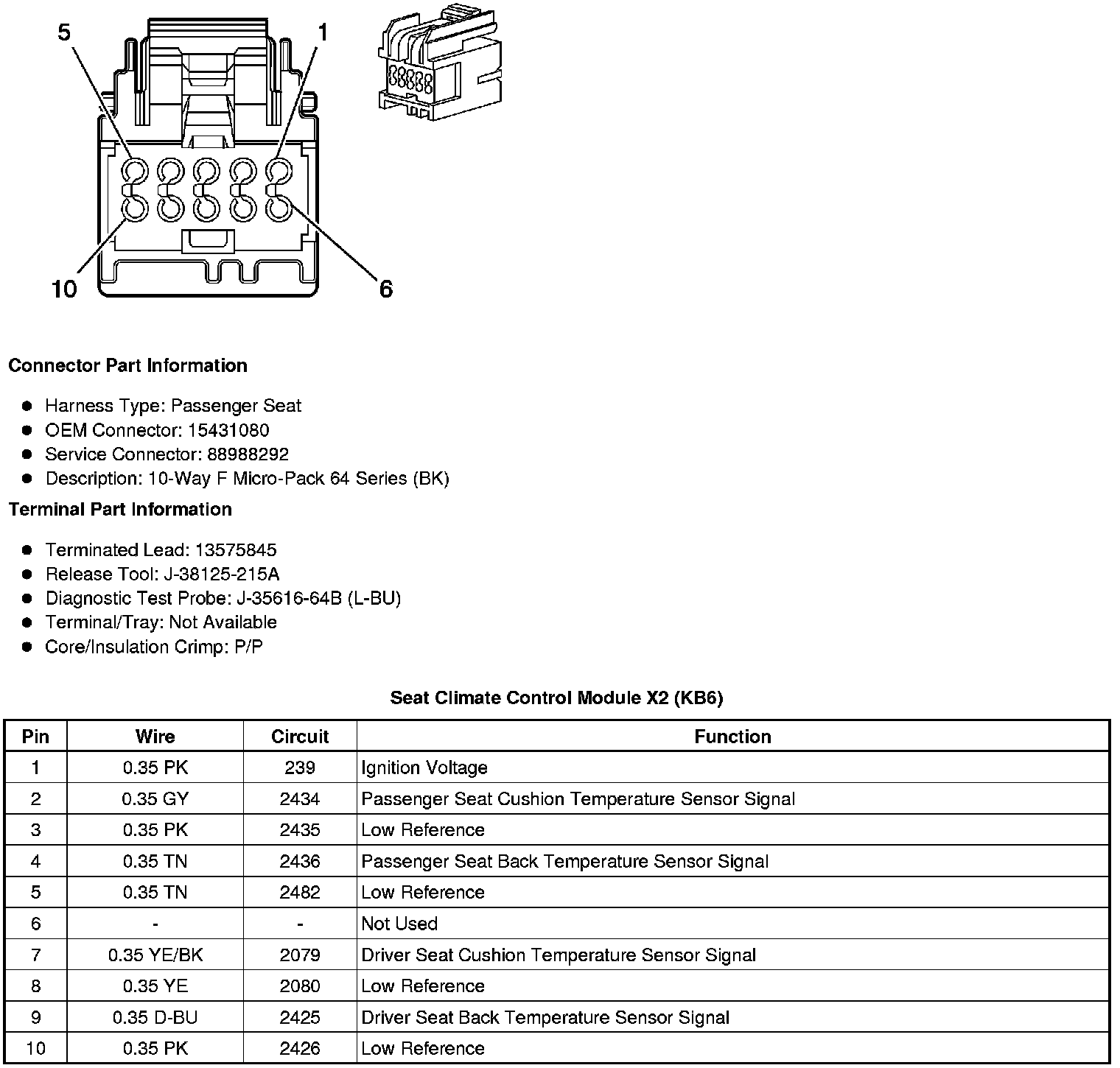

Seat Climate Control Module X2 (KB6)




Component Connector End Views

Seat Climate Control Module X2 (KB6)
