Blower Motor Control Module - Auxiliary

Luggage Compartment/Rear of Vehicle Component Views

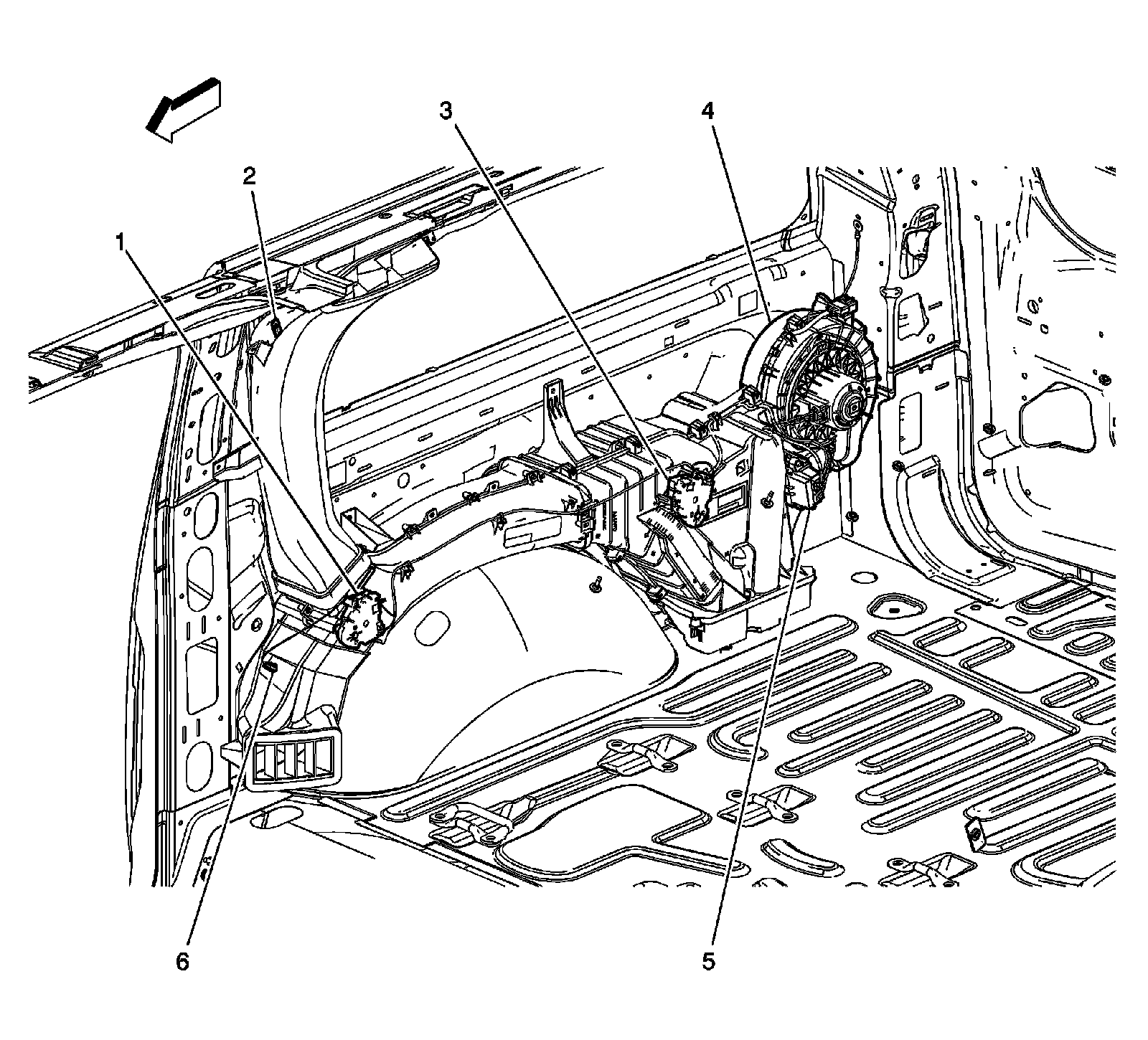

Auxiliary HVAC Components (LWB with C69)




1 - Mode Actuator - Auxiliary
2 - Air Temperature Sensor - Upper Auxiliary (CJ2)
3 - Air Temperature Actuator - Auxiliary
4 - Blower Motor - Auxiliary
5 - Blower Motor Control Module - Auxiliary
6 - Air Temperature Sensor - Lower Auxiliary
