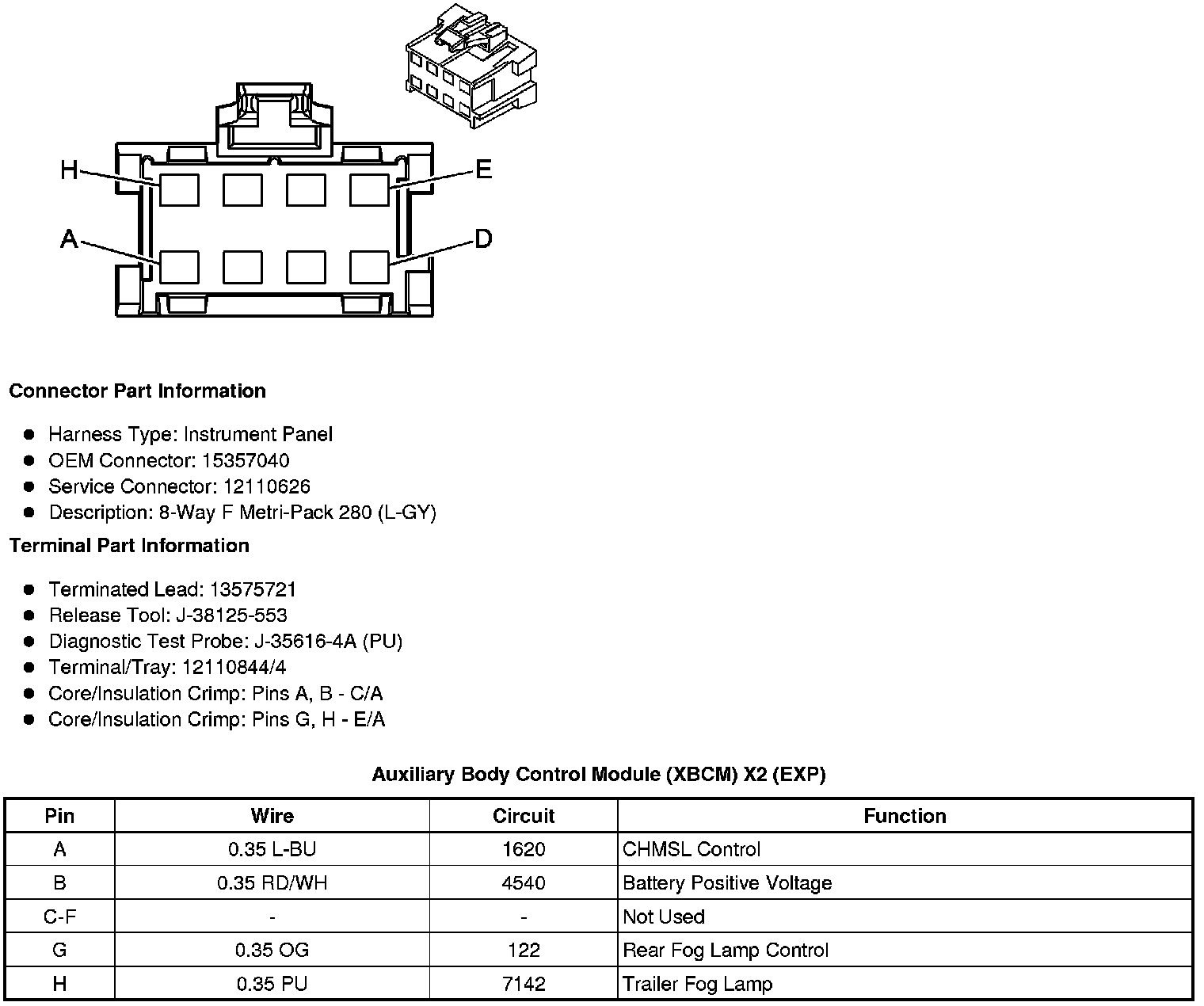

Auxiliary Body Control Module (XBCM) X2 (EXP)
Component Connector End Views
Auxiliary Body Control Module (XBCM) X2 (EXP)
