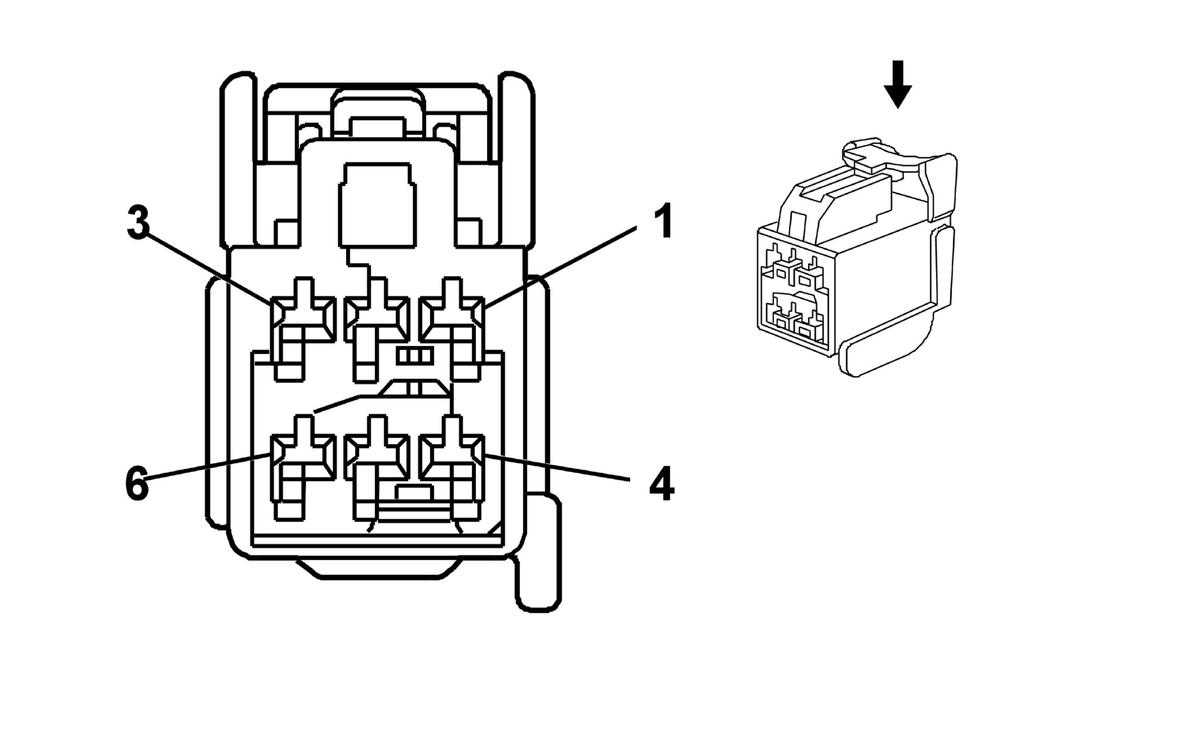

Seat Adjuster Motor Assembly - Driver X2 (AN3)
 Courtesy of
|
Connector Part Information
- Harness Type: Driver Seat
- OEM Connector: 7283-5532-40
- Service Connector: 89046849
- Description: 6-Way F 1.5 Series (GY)
|
Terminal Part Information
- Terminated Lead: 13578891
- Release Tool: J-38125-11A
- Diagnostic Test Probe: J-35616-2A (GY)
- Terminal/Tray: 7116-4100-08/9
- Core/Insulation Crimp: E/C
|
Seat Adjuster Motor Assembly - Driver X2 (AN3)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 BN/WH |
557 |
Front Vertical Motor Position Sensor Signal |
| 2 |
0.35 GY |
6206 |
Low Reference |
| 3 |
0.35 D-GN |
569 |
Horizontal Motor Position Sensor Signal |
| 4 |
- |
- |
Not Used |
| 5 |
0.35 TN |
568 |
Rear Vertical Motor Position Sensor Signal |
| 6 |
0.35 TN |
6207 |
5-Volt Reference |
