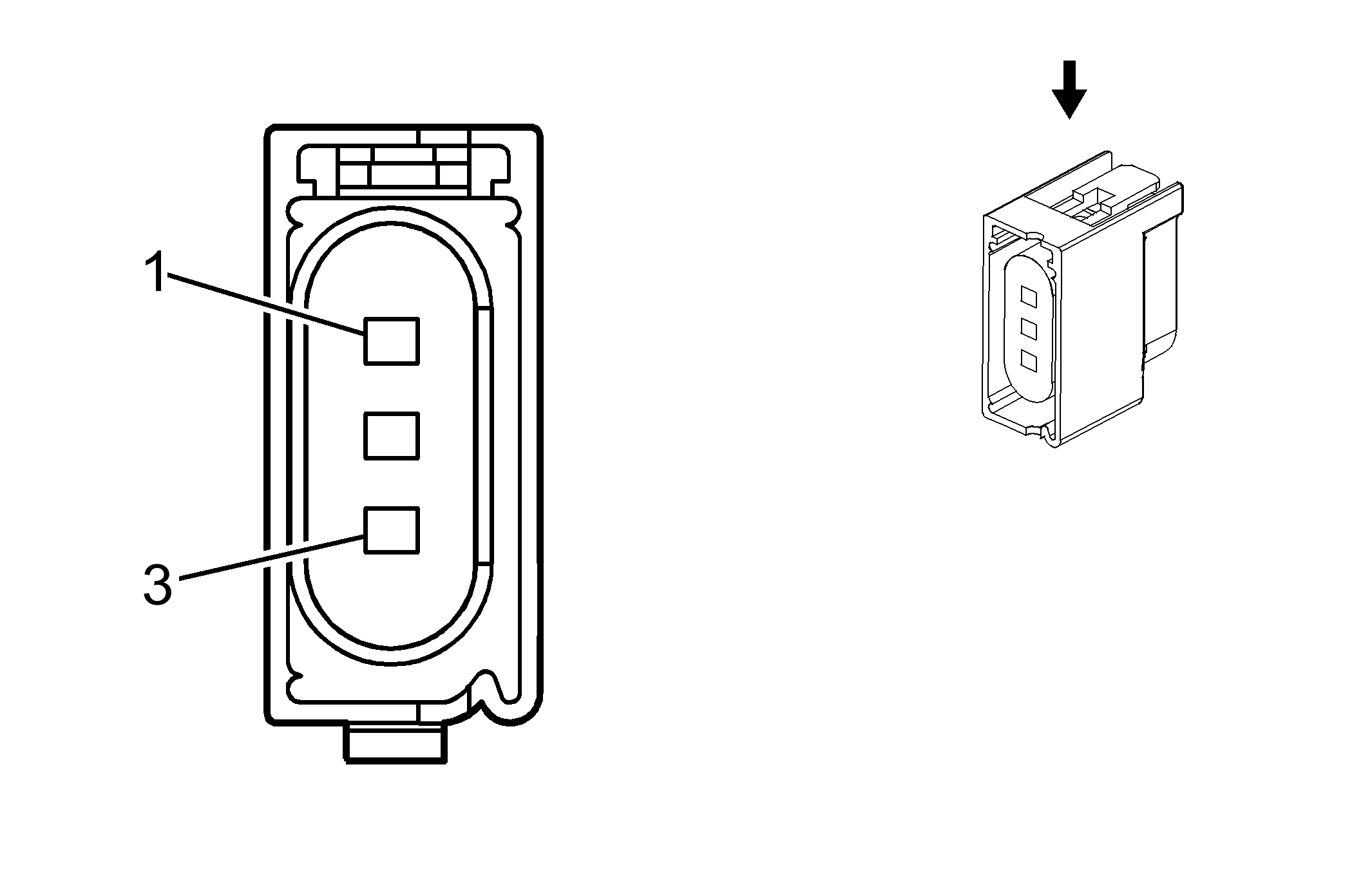

Turn Signal Lamp - Left Front (Z75)
 Courtesy of
|
Connector Part Information
- Harness Type: Left Front Fog Lamp
- OEM Connector: 15454375
- Service Connector: 88988117
- Description: 3-Way F Axial Series, Sealed (BN)
|
Terminal Part Information
- Terminated Lead: Pins 1 - 13575424
- Terminated Lead: Pins 3 - Service by Connector Assembly - 88988117
- Release Tool: J-38125-11A
- Diagnostic Test Probe: J-35616-2A (GY)
- Terminal/Tray: 7116-4102-08/9
- Core/Insulation Crimp: E/1
|
Turn Signal Lamp - Left Front (Z75)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.8 L-BU/WH |
1314 |
Left Front Turn Signal Lamp Control |
| 2 |
- |
- |
Not Used |
| 3 |
0.8 BK |
150 |
Ground |
