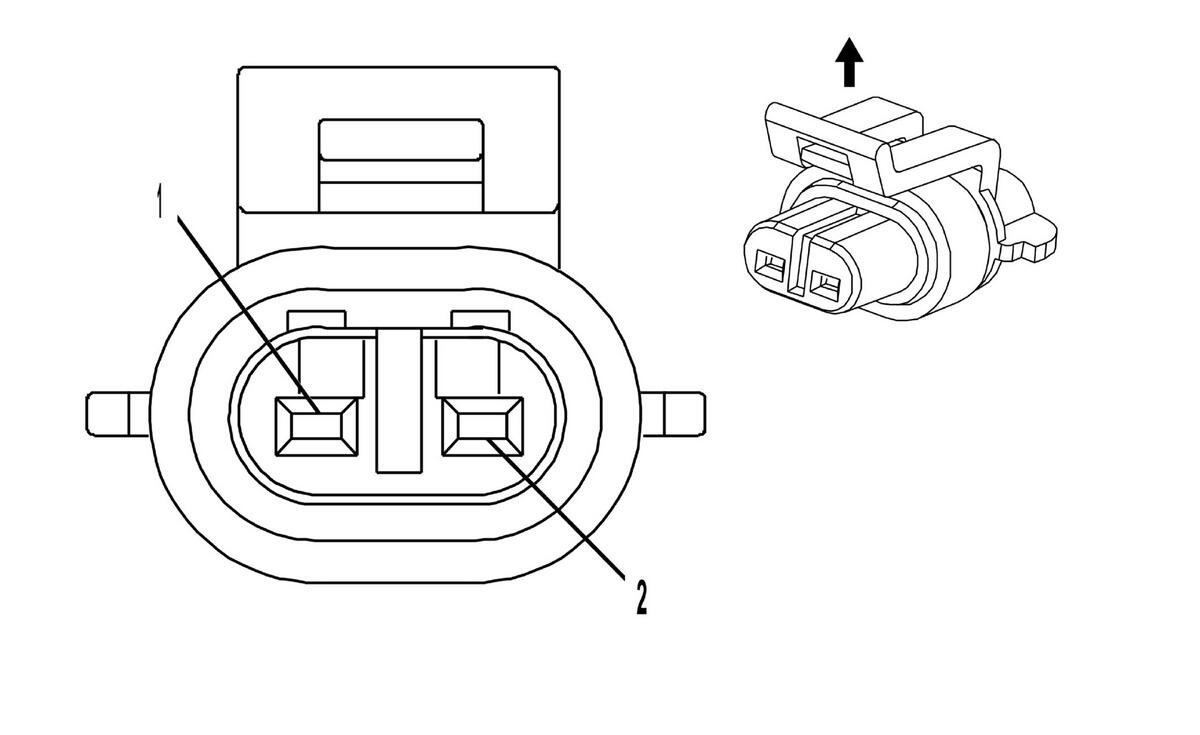

Turn Signal Repeater Lamp- Right Front (TR2)
 Courtesy of
|
Connector Part Information
- Harness Type: Export Side Repeater Jumper
- OEM Connector: 15336195
- Service Connector: 88988136
- Description: 2-Way F GT 150 Series, Sealed (BK)
|
Terminal Part Information
- Terminated Lead: 13575412
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-2A (GY)
- Terminal/Tray: 12191819/8
- Core/Insulation Crimp: 2/1
|
Turn Signal Repeater Lamp- Right Front (TR2)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.8 YE/BK |
1334 |
Left Rear Turn Signal Lamp Control |
| 2 |
0.8 BK |
150 |
Ground |
