Vehicle Shock Sensor (SPO Alarm)
 Courtesy of
|

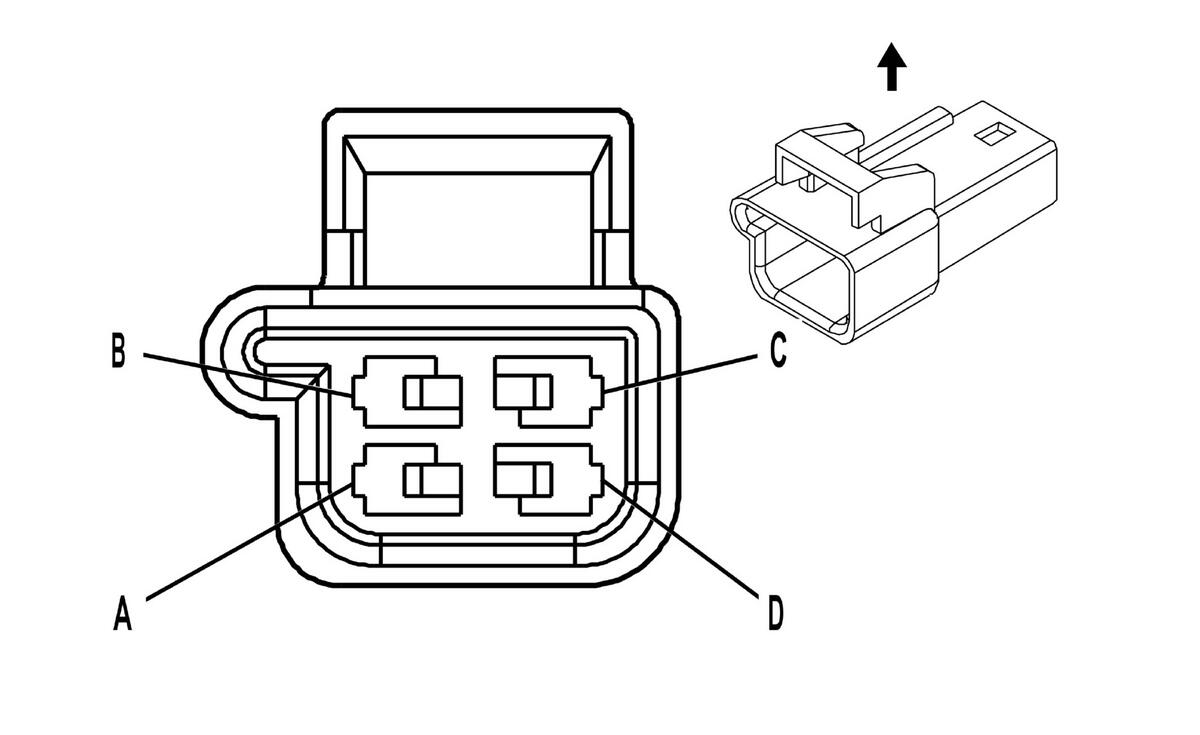

Connector Part Information
- Harness Type: SPO Accessory
- OEM Connector: 12064761
- Service Connector: 12064761
- Description: 4-Way M Metri-Pack 150 Series (BK)
|
Terminal Part Information
- Terminated Lead: 13575462
- Release Tool: J-38125-12A
- Diagnostic Test Probe: J-35616-3 (GY)
- Terminal/Tray:12047581/2
- Core/Insulation Crimp: E/A
|
Vehicle Shock Sensor (SPO Alarm)
| Pin |
Wire |
Circuit |
Function |
| A |
0.5 RD/WH |
4540 |
Battery Positive Voltage |
| B |
0.5 YE |
5058 |
Intrusion Sensor Armed Signal |
| C |
0.5 PU |
5059 |
Intrusion Sensor Alarm On Signal |
| D |
- |
- |
Not Used |
