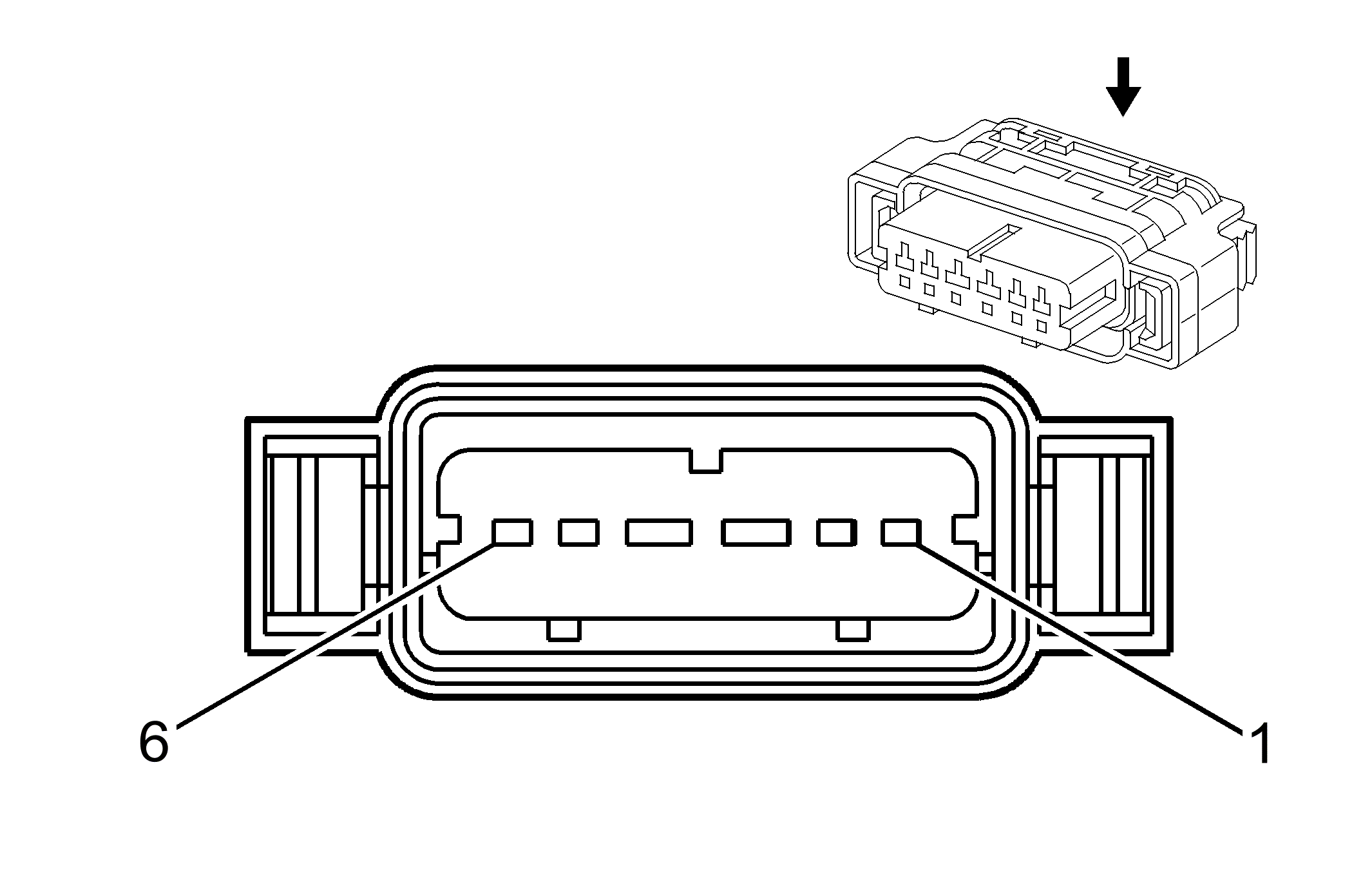

Window Motor - Driver (Z75)
 Courtesy of
|
Connector Part Information
- Harness Type: Driver Door
- OEM Connector: 13602477
- Service Connector: Service by Harness - See Part Catalog
- Description: 6-Way F 1.5/2.8 Series, Sealed (BK)
|
Terminal Part Information
- Pins: 3, 4
- Terminated Lead: 13584466
- Release Tool: J-38125-12A
- Diagnostic Test Probe: J-35616-35 (VT)
- Terminal/Tray: 211CC3S2120/ Not Available
- Core/Insulation Crimp: Not Available
- Pins: 5
- Terminated Lead: Service by Harnesss - See Part Catalog
- Release Tool: J-38125-560
- Diagnostic Test Probe: J-35616-2A (GY)
- Terminal/Tray: 211CC2S1190P/Not Available
- Core/Insulation Crimp: Not Available
|
Window Motor - Driver (Z75)
| Pin |
Wire |
Circuit |
Function |
| 1-2 |
- |
- |
Not Used |
| 3 |
2 RD/WH |
1240 |
Battery Positive Voltage |
| 4 |
3 BK |
1850 |
Signal Return |
| 5 |
0.35 BN |
1046 |
LIN Bus |
| 6 |
- |
- |
Not Used |
