Object Detection Description and Operation (with Side Blind Zone Alert, UFT, Except N America): Notes

WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

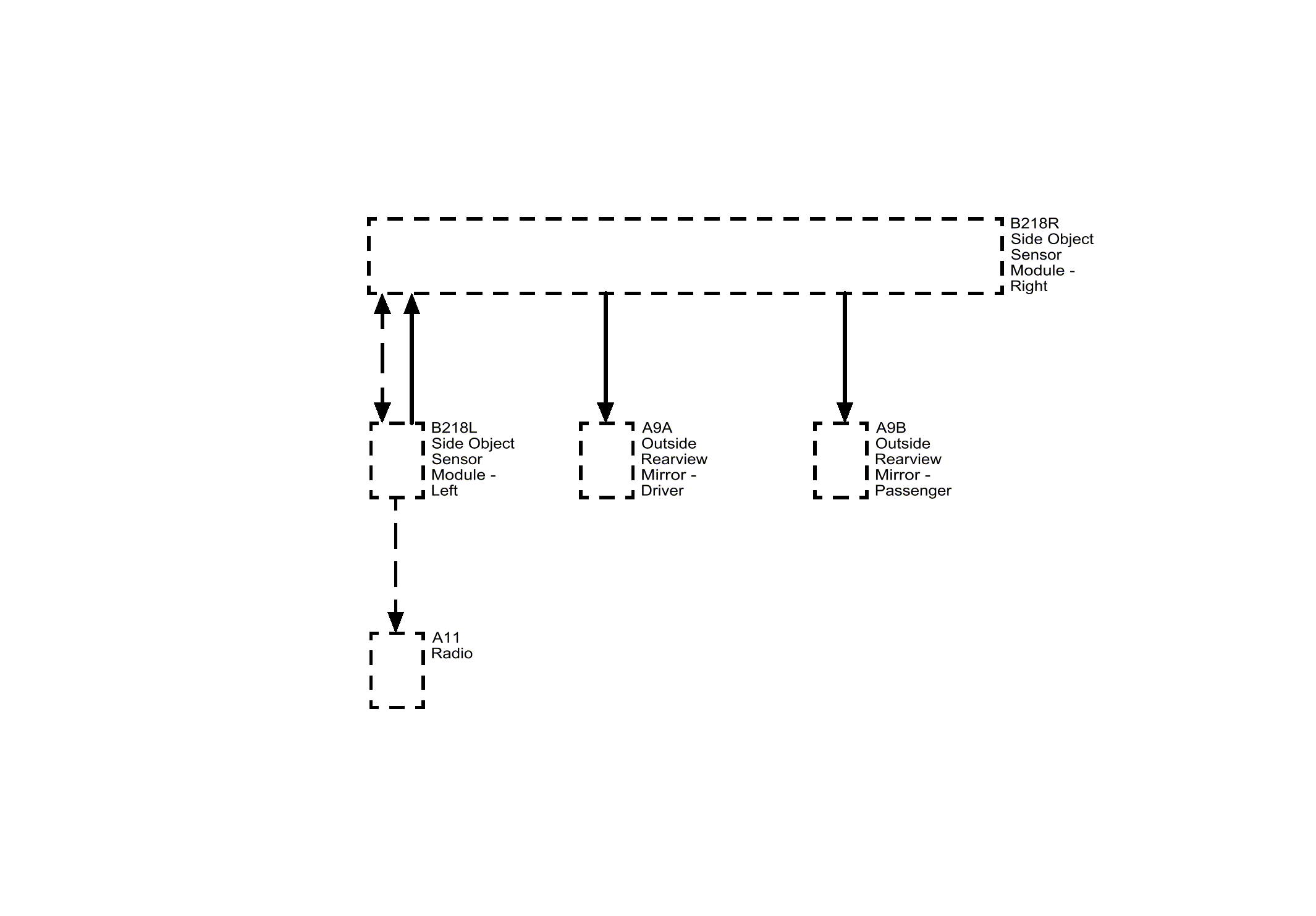

Fig 1: Side Blind Alert Block Diagram (with Side Blind Zone Alert, UFT, Except N America)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
B218R	B218R Side Object Sensor Module - Right
B218L	B218L Side Object Sensor Module - Left
A11	A11 Radio
A9A	A9A Outside Rearview Mirror - Driver
A9B	A9B Outside Rearview Mirror - Passenger

The side blind zone alert system is a feature that utilizes two side object sensor modules to provide enhanced customer convenience by sensing and reporting to the driver that an object is present in one of the driver's side blind zones. This is communicated to the driver by illuminating an icon on the left or right side view mirror, depending on what side of the vehicle the object is detected. This lane change assist system is radar based system in which the sensors transmit and receives energy that is reflected from external objects and used to determine if that object is an object of interest. Although this system is intended to help drivers avoid lane change crashes, it does not replace driver vision and therefore should be considered a lane change aid.
