Rear Parking Assist Alarm Sensor Bracket Replacement
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 GMC Sierra 3500 HD, 2016 GMC Sierra 2500 HD, 2016 GMC Sierra 1500, 2016 Chevrolet Silverado 3500 HD, and 2016 Chevrolet Silverado 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear parking assist alarm sensor. Refer to Rear Parking Assist Alarm Sensor Replacement (Outer) Rear Parking Assist Alarm Sensor Replacement (Center) . |
|

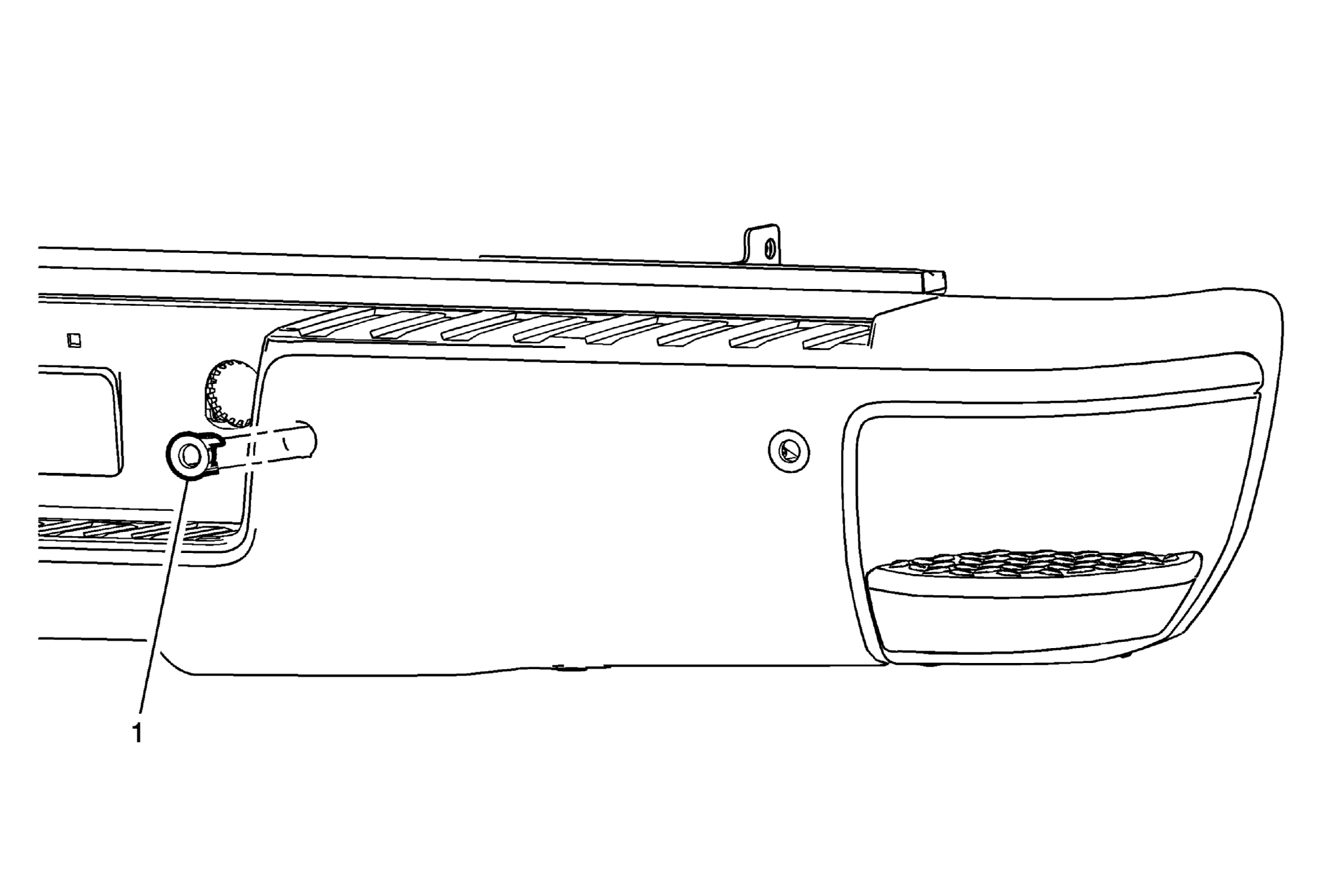

| 1 | Rear Parking Assist Alarm Sensor Bracket Procedure Release the 2 tabs behind the rear parking assist alarm sensor bracket to remove. |
