Electronic Brake Control Module (EBCM) (JL4 except 10 Series)

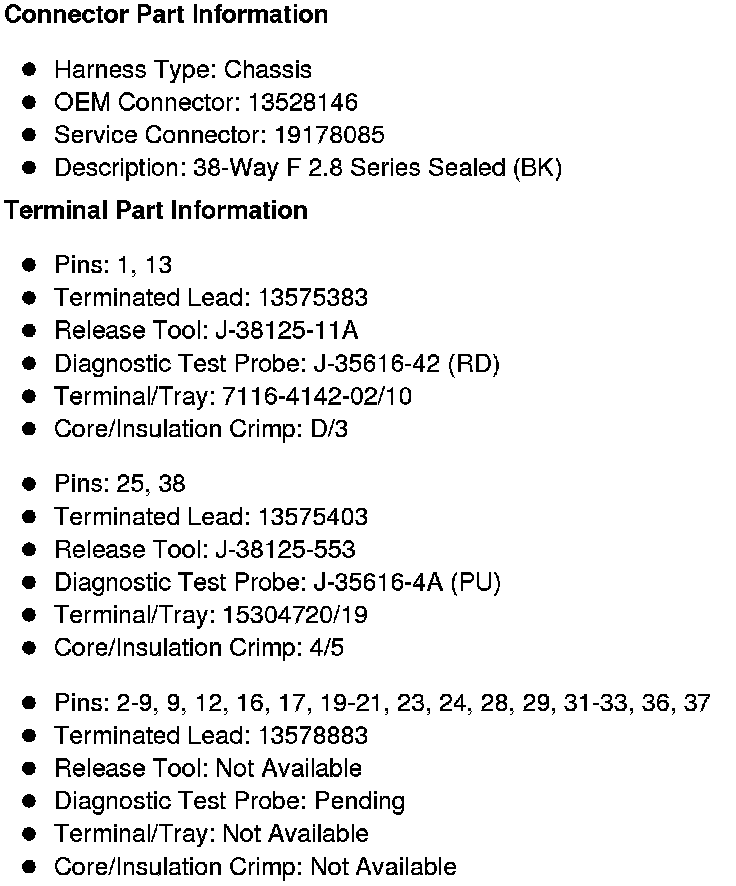

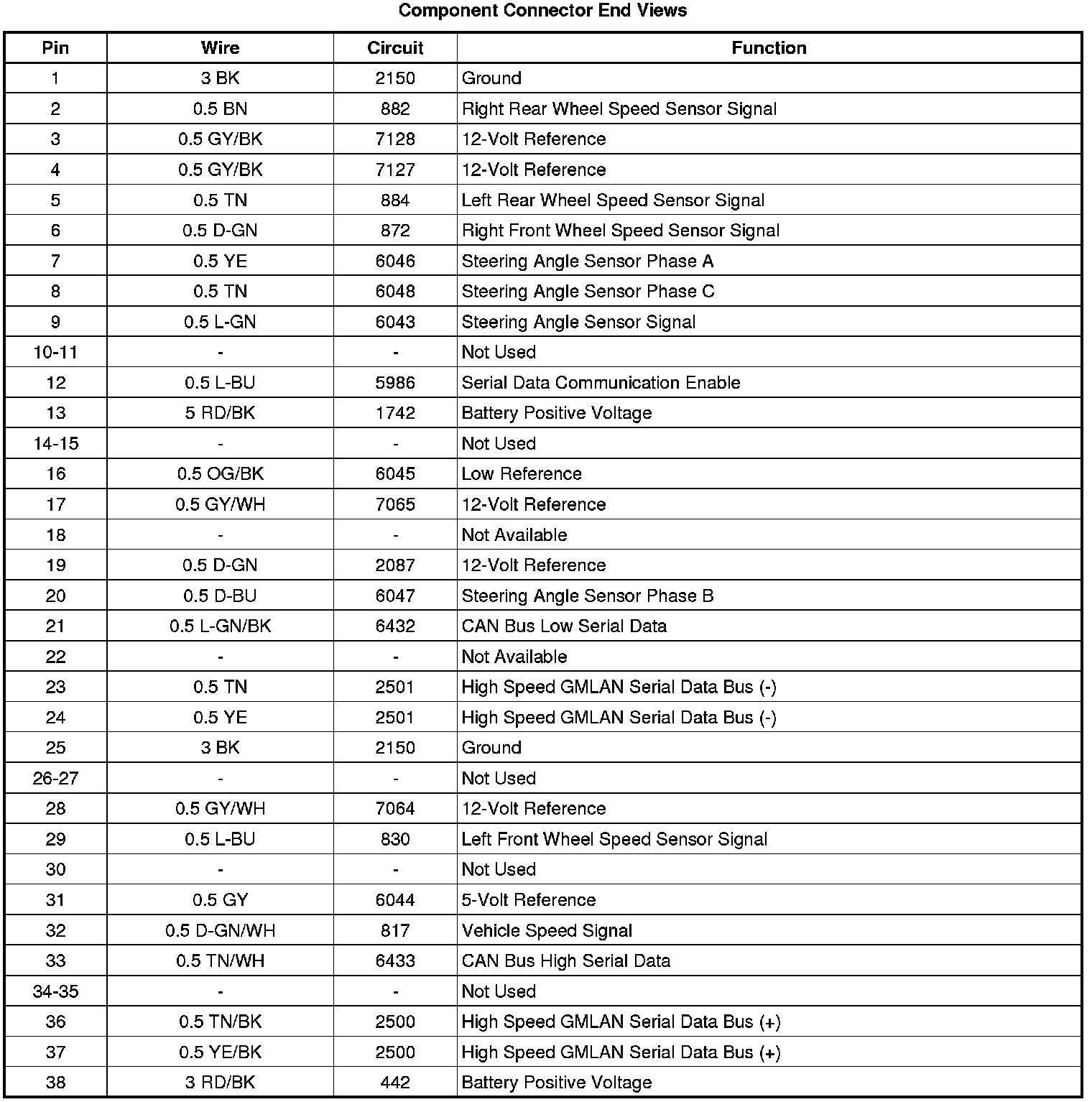

Component Connector End Views
Electronic Brake Control Module
(EBCM) (JL4 except 10 Series)
