Trailer Brake Control Module (JL1 except 31 Series)

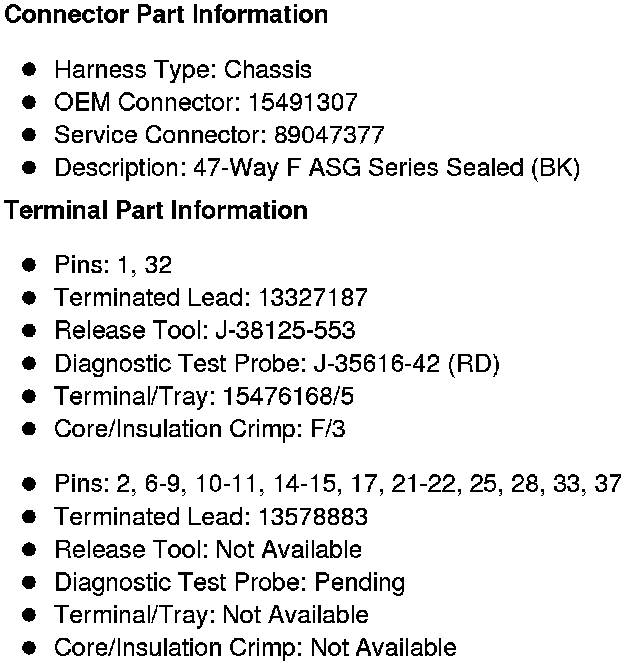

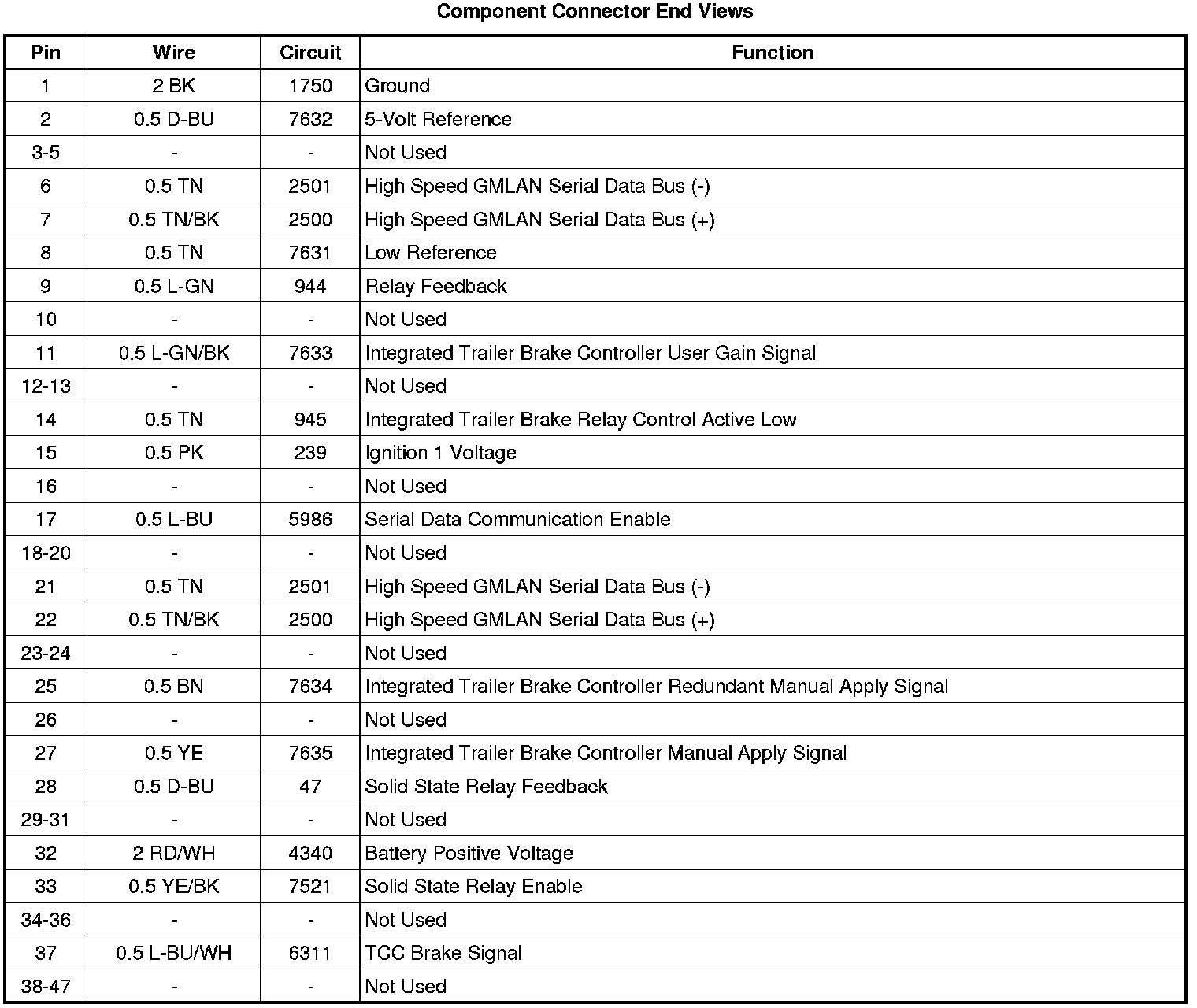

Component Connector End Views
Trailer Brake Control Module
(JL1 except 31 Series)
