Wheel Alignment Specifications

WHEEL ALIGNMENT SPECIFICATIONS

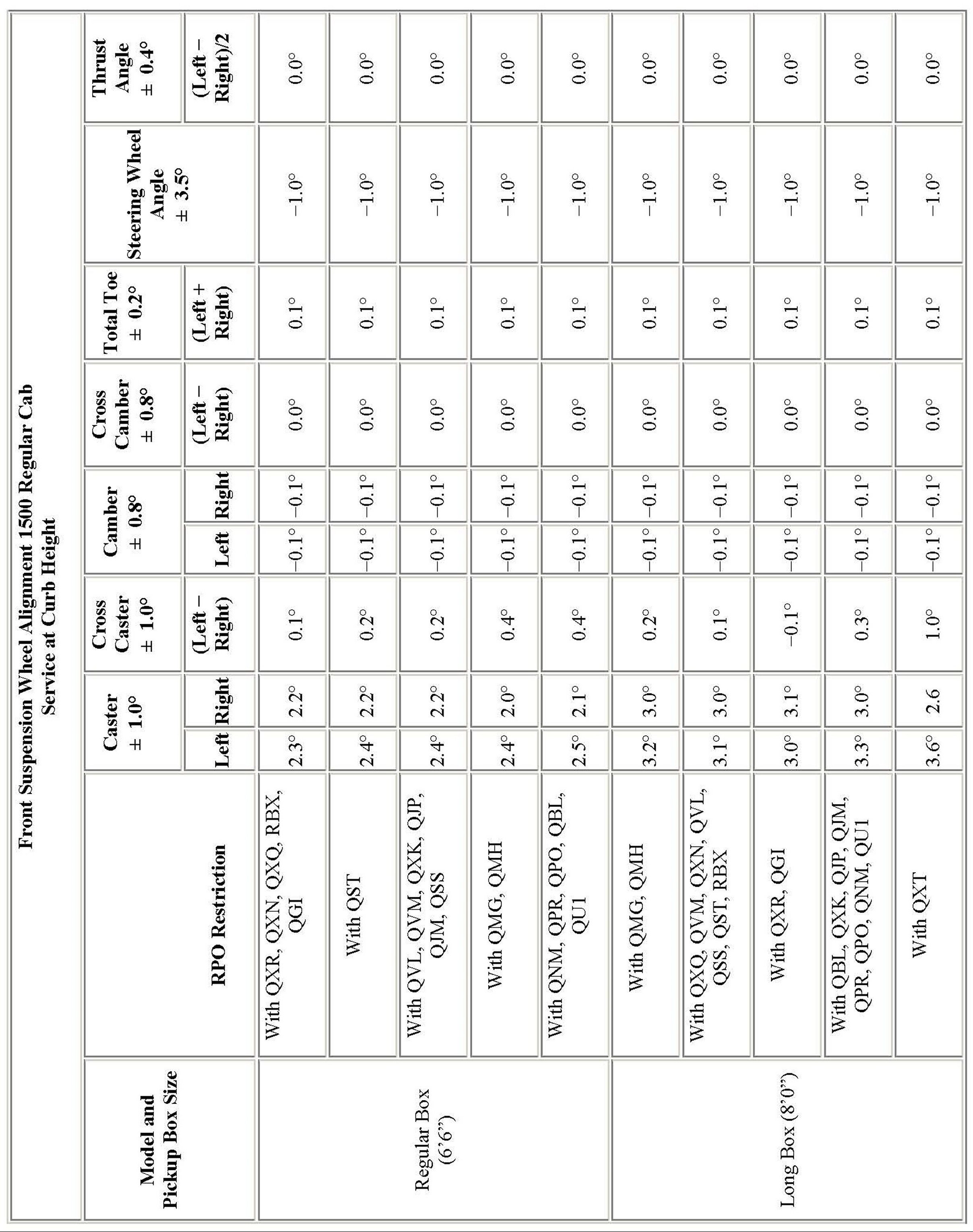

1500 Regular Cab:

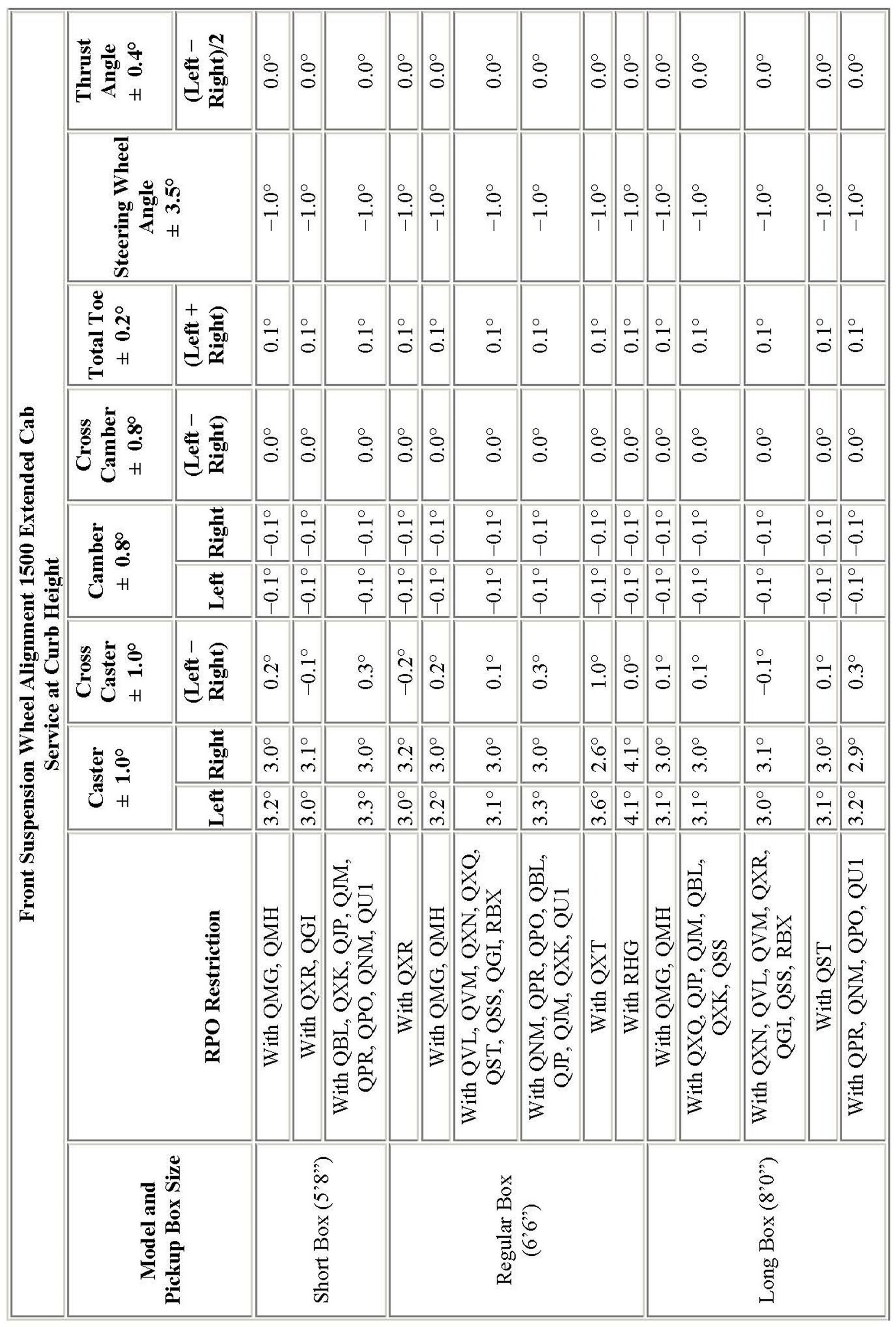

1500 Extended Cab:

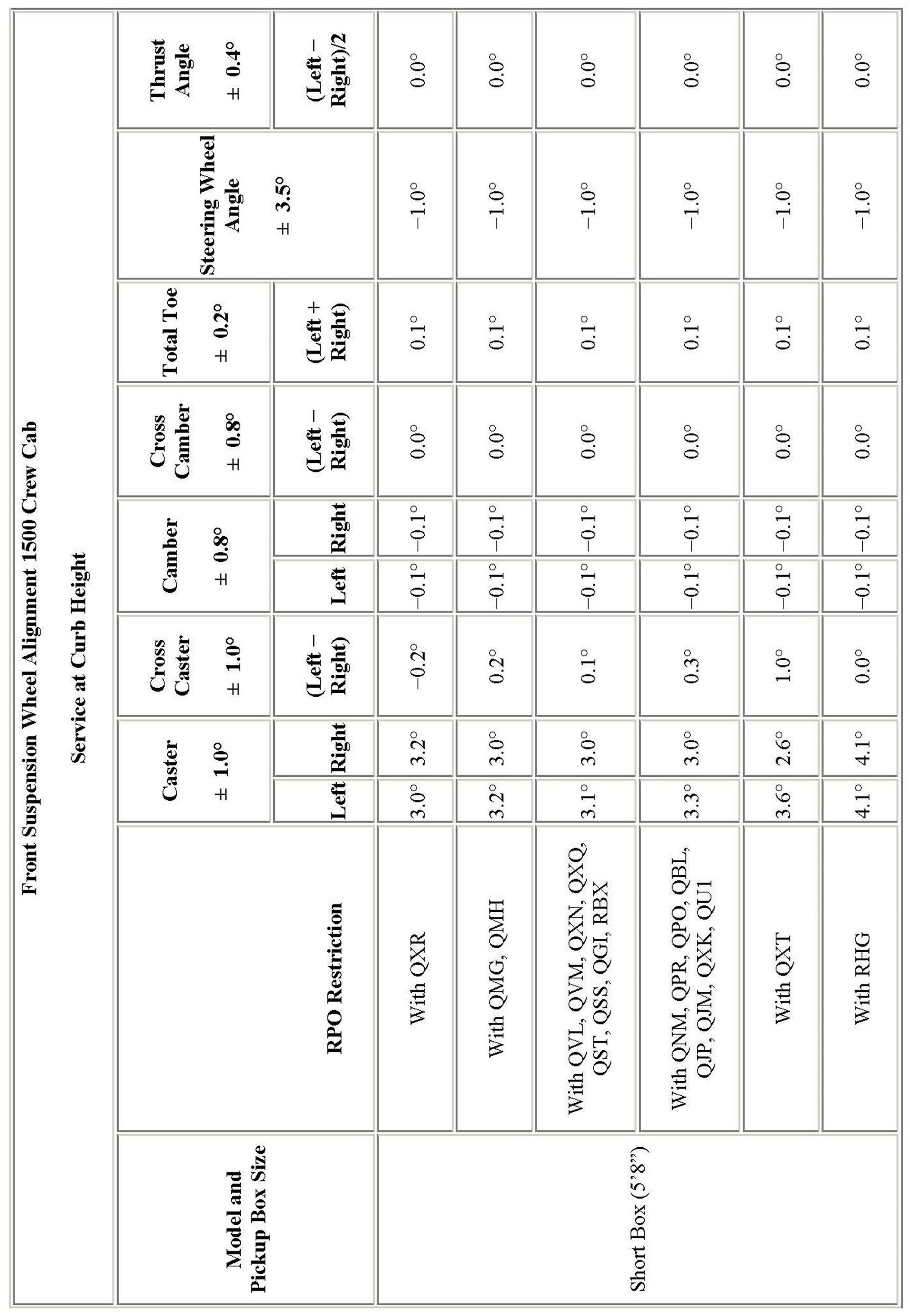

1500 Crew Cab:

Alignment Condition: Full tank of fuel, no passengers and placed on flat level surface.
