Passenger Presence Detection Module

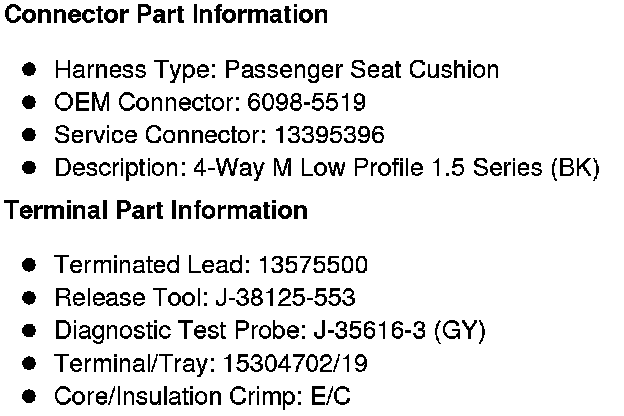

Component Connector End Views

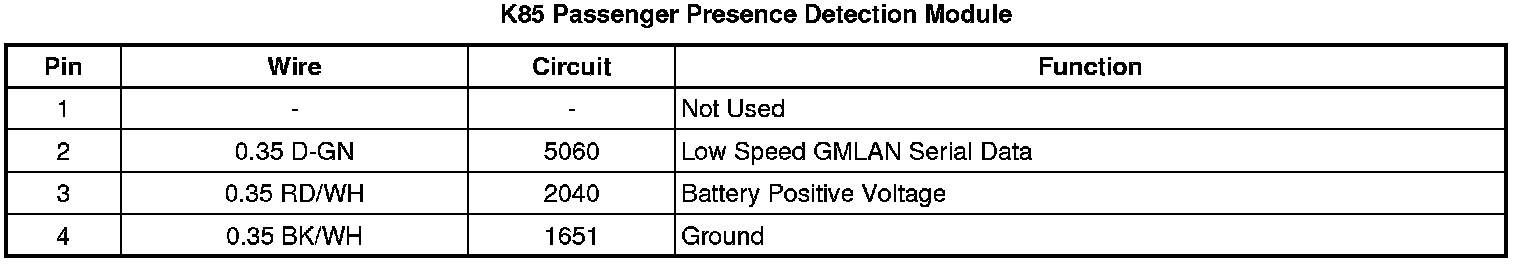

K85 Passenger Presence Detection Module
