Module Power, Ground, Serial Data, and Memory Switch

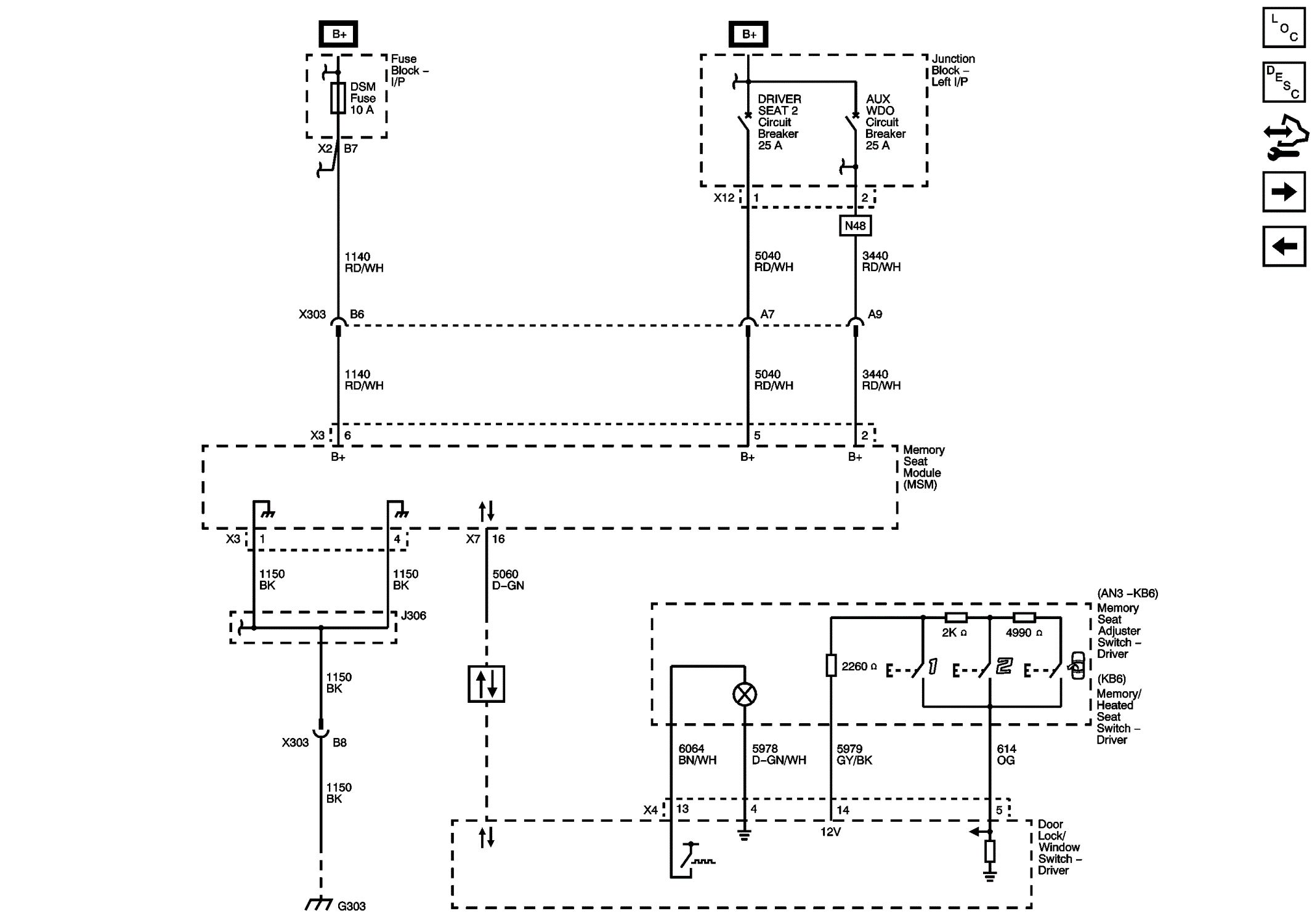

Fig 1: Module Power, Ground, Serial Data, and Memory Switch Wiring Schematic
GM2761693Courtesy of GENERAL MOTORS COMPANY
