Brake, Horn, Transmission, Theft, and Secondary/Configurable Control References

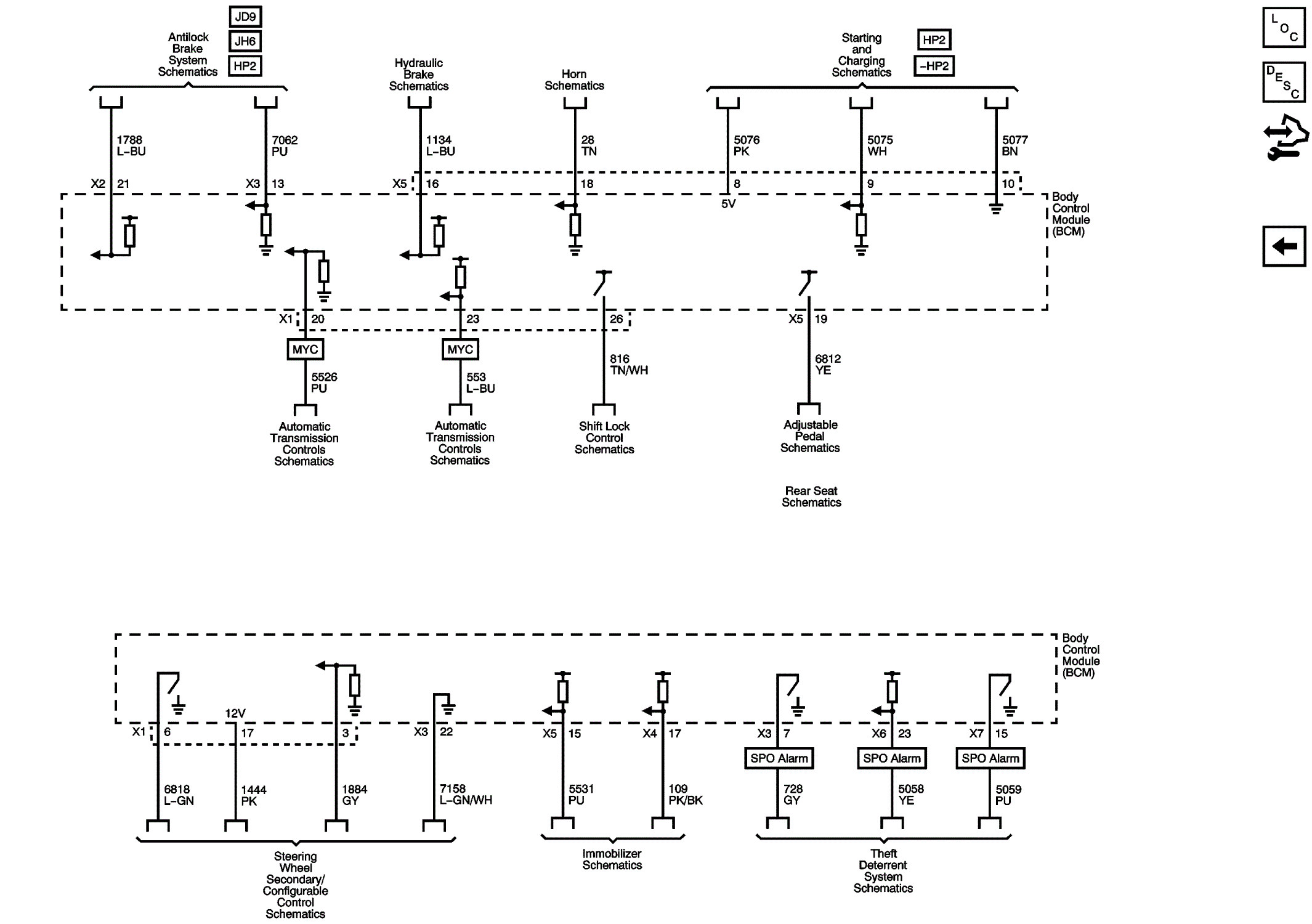

Fig 1: Brake, Horn, Transmission, Theft, and Secondary/Configurable Control References
GM2761672Courtesy of GENERAL MOTORS COMPANY
