Forward Collision and Lane Departure Wiring Schematics

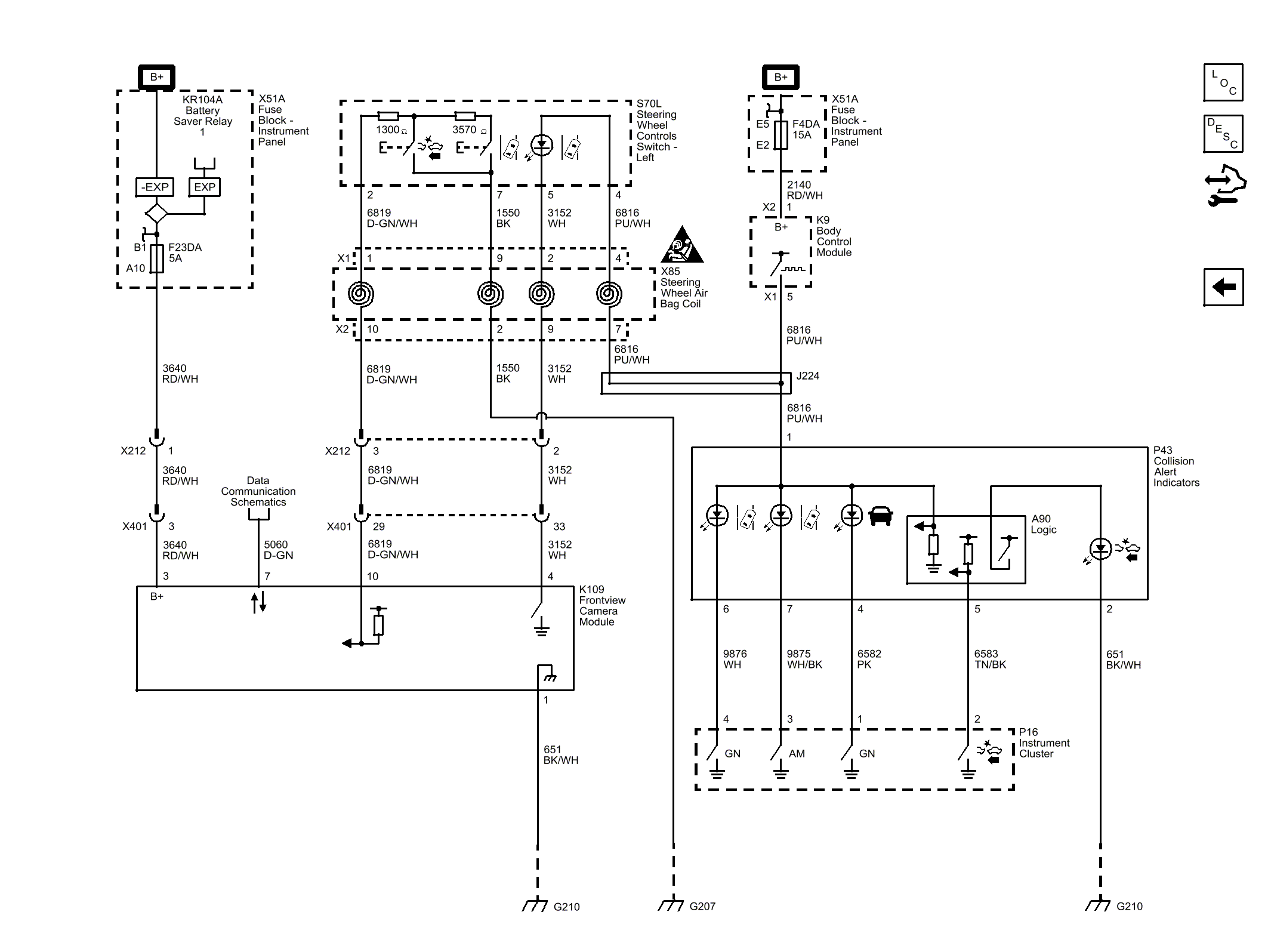

Fig 1: Forward Collision and Lane Departure Wiring Schematics
GM3424485Courtesy of GENERAL MOTORS COMPANY
