OnStar Schematics
WARNING:
This page is about a different car, the 2010 GMC Terrain and 2010 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

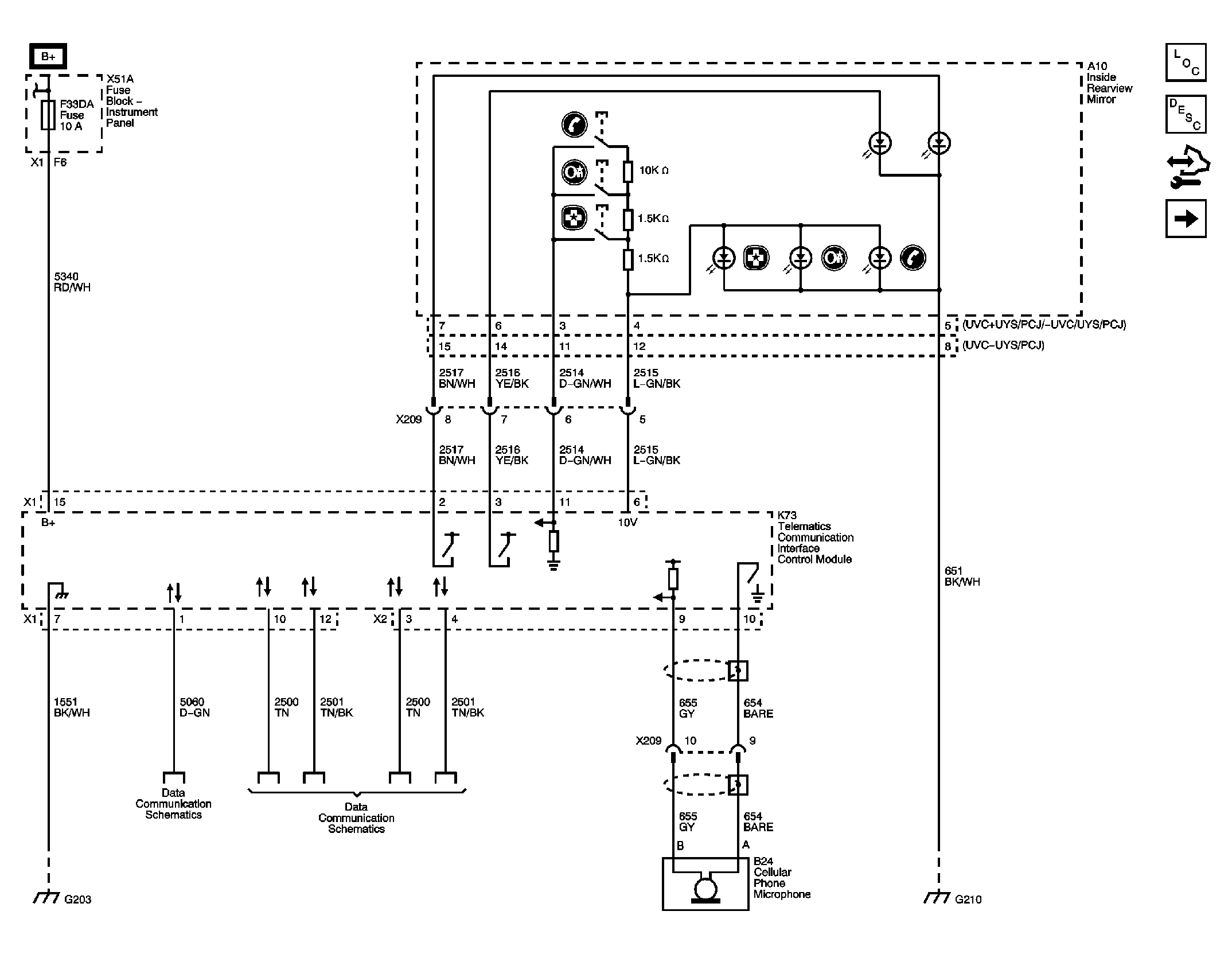

Fig 1: Power, Ground, Serial Data, Microphone, and Display (UE1)
Courtesy of GENERAL MOTORS CORP.

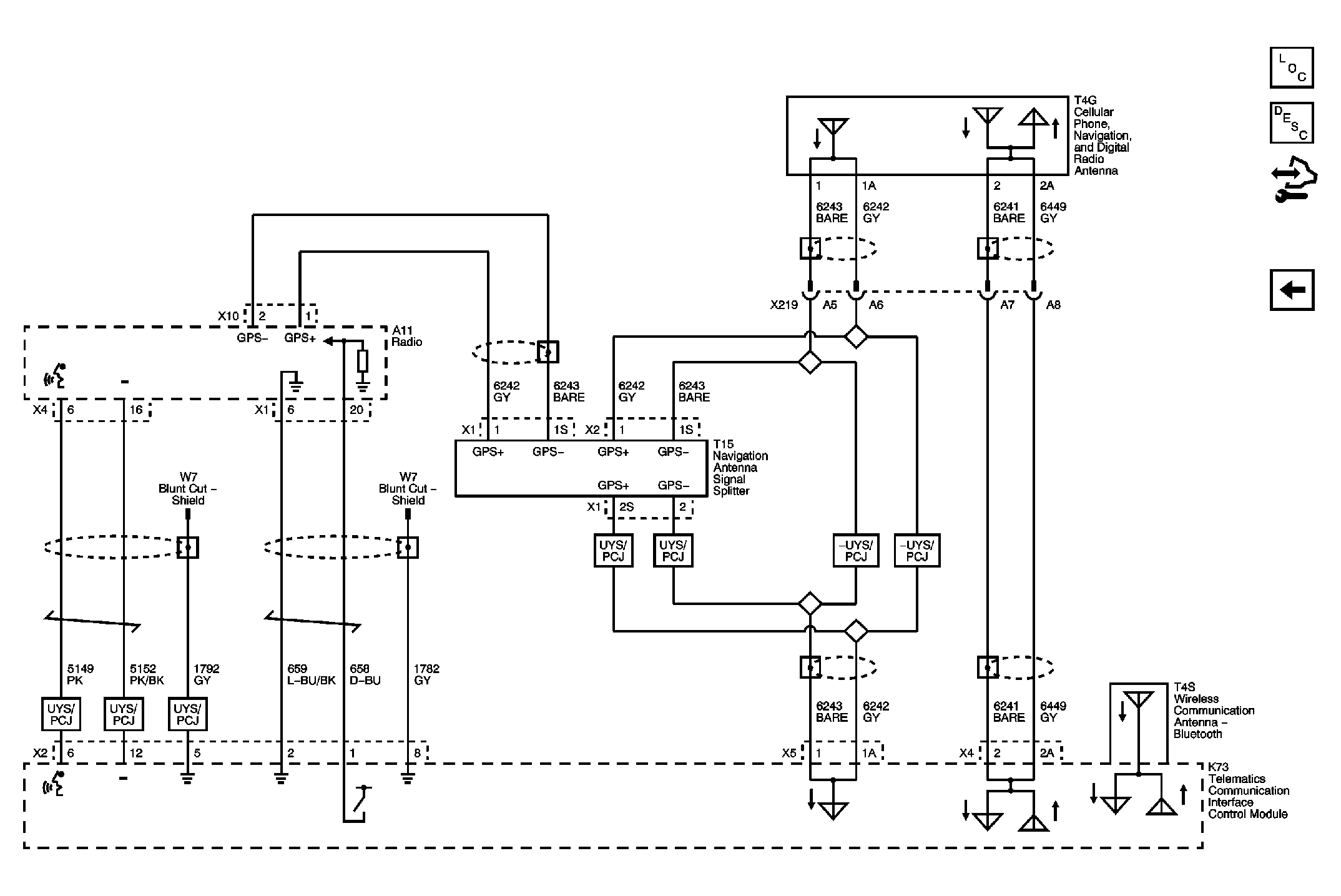

Fig 2: Antennas (UE1)
Courtesy of GENERAL MOTORS CORP.
