Radio Antenna Cable Extension Cable Connector Replacement

WARNING: This page is about a different car, the 2012 GMC Terrain and 2012 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

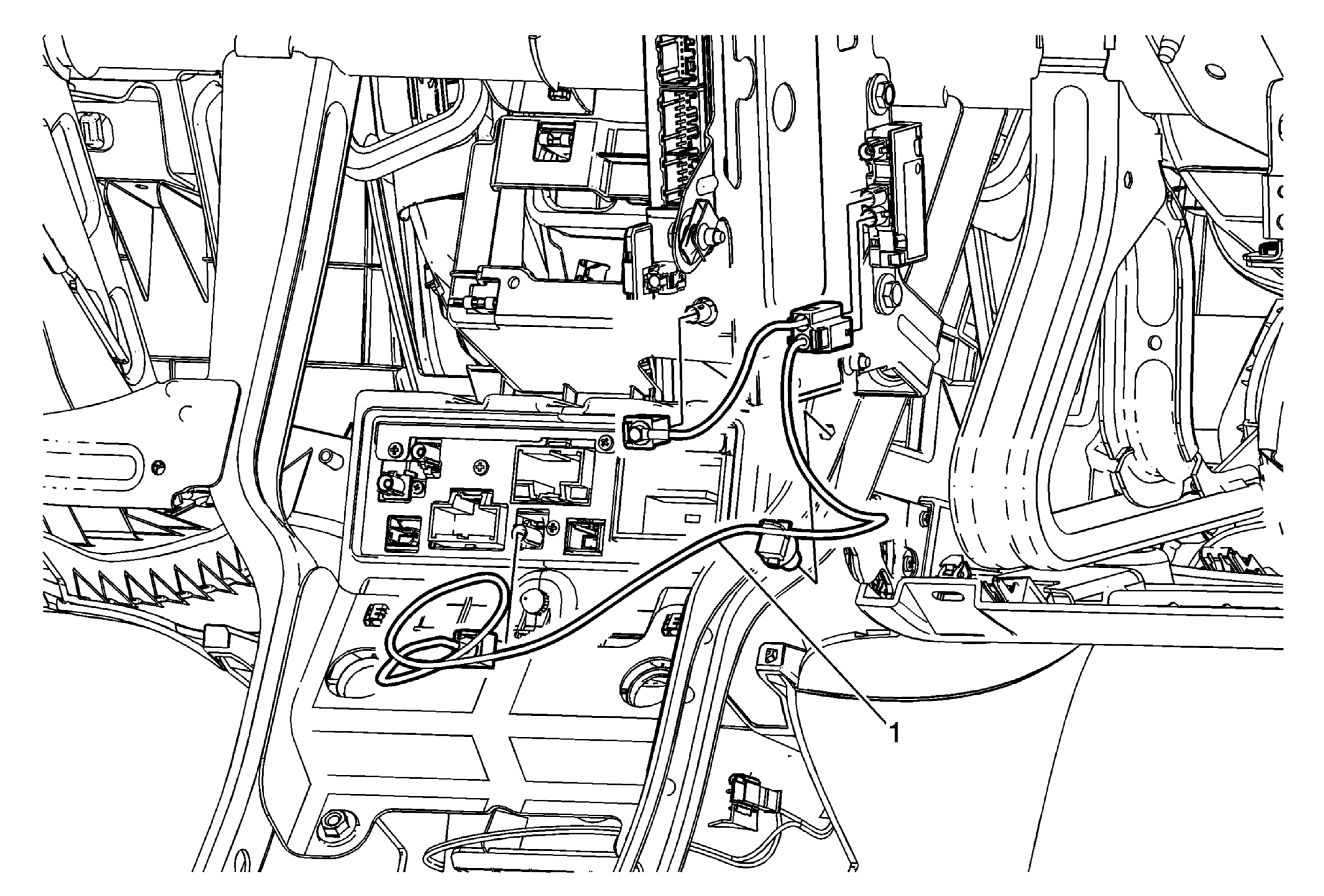

Fig 1: Radio Antenna Cable Extension Cable Connector

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the radio. Refer to Radio Replacement . Remove the driver side knee bolster reinforcement. Refer to Driver Knee Bolster Reinforcement Replacement (Equinox) , Driver Knee Bolster Reinforcement Replacement (Terrain) .
1	Radio Antenna Cable Extension Cable Connector Procedure Disconnect all of the electrical connectors. Cable connects to the radio, communication interface module, and the navigation signal splitter. Note the cable routing prior to removal for installation purposes.

Callout

Component Name

Preliminary Procedures

Remove the radio. Refer to Radio Replacement .
Remove the driver side knee bolster reinforcement. Refer to Driver Knee Bolster Reinforcement Replacement (Equinox) , Driver Knee Bolster Reinforcement Replacement (Terrain) .

Radio Antenna Cable Extension Cable Connector

Procedure

Disconnect all of the electrical connectors. Cable connects to the radio, communication interface module, and the navigation signal splitter.
Note the cable routing prior to removal for installation purposes.
