Radio Volume Compensator Interior Noise Microphone Replacement

WARNING: This page is about a different car, the 2015 GMC Terrain and 2015 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

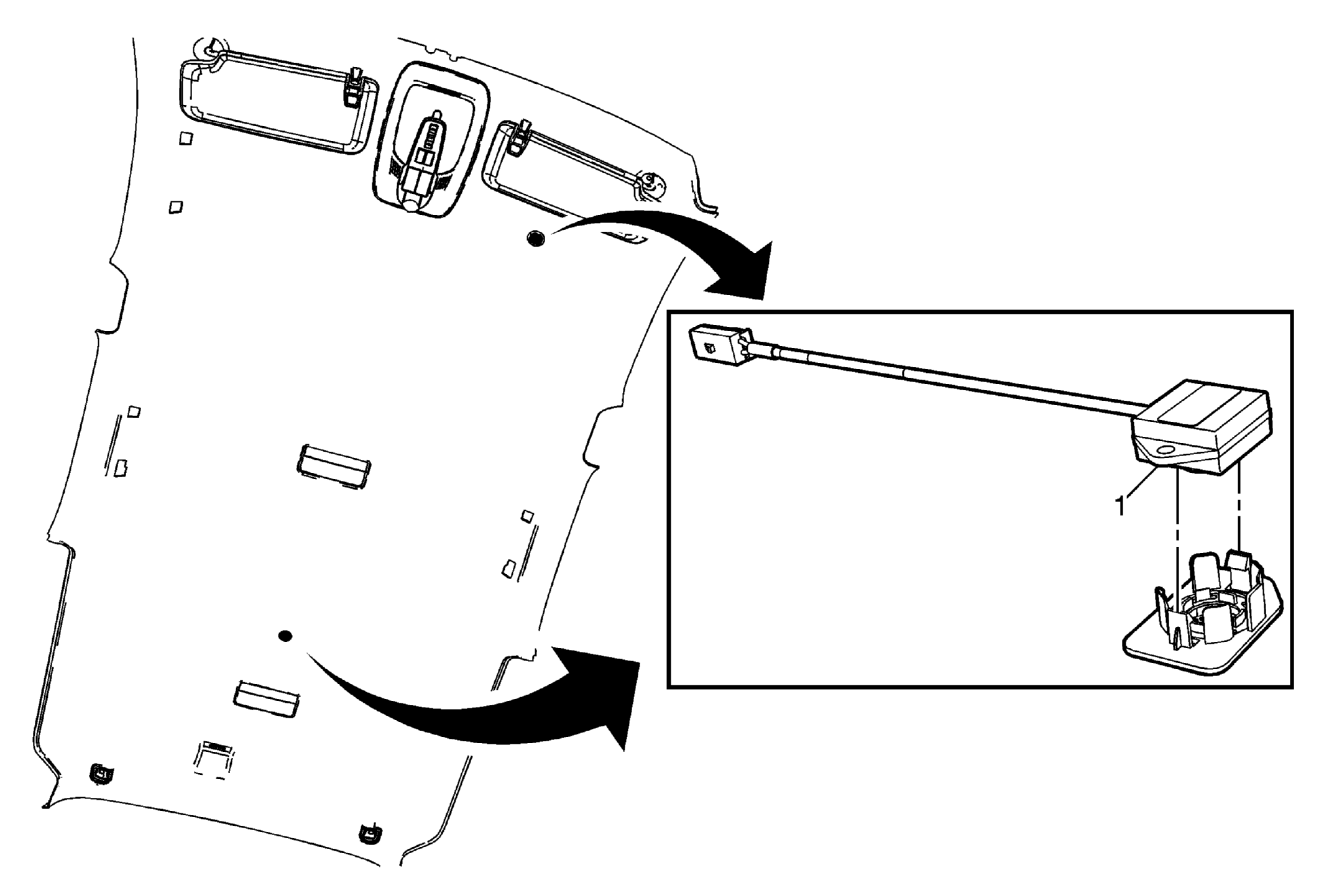

Fig 1: Radio Volume Compensator Interior Noise Microphone

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Lower the front or rear of the headlining trim panel enough to gain access to the microphone. Refer to Headlining Trim Panel Replacement .
1	Radio Volume Noise Compensator Interior Noise Microphone Procedure Disconnect the electrical connector. Note the foam position around the front of the microphone and the center foam plug over the top of the microphone to ensure proper installation. Remove the foam plug from the top of the microphone and large foam patch from around the microphone. Unsnap the microphone from the grille assembly bracket.

Callout

Component Name

Preliminary Procedure
Lower the front or rear of the headlining trim panel enough to gain access to the microphone. Refer to Headlining Trim Panel Replacement .

Radio Volume Noise Compensator Interior Noise Microphone

Procedure

Disconnect the electrical connector.
Note the foam position around the front of the microphone and the center foam plug over the top of the microphone to ensure proper installation.
Remove the foam plug from the top of the microphone and large foam patch from around the microphone.
Unsnap the microphone from the grille assembly bracket.
