Module Power, Ground and Serial Data (MH2 or MH4) Wiring Schematics

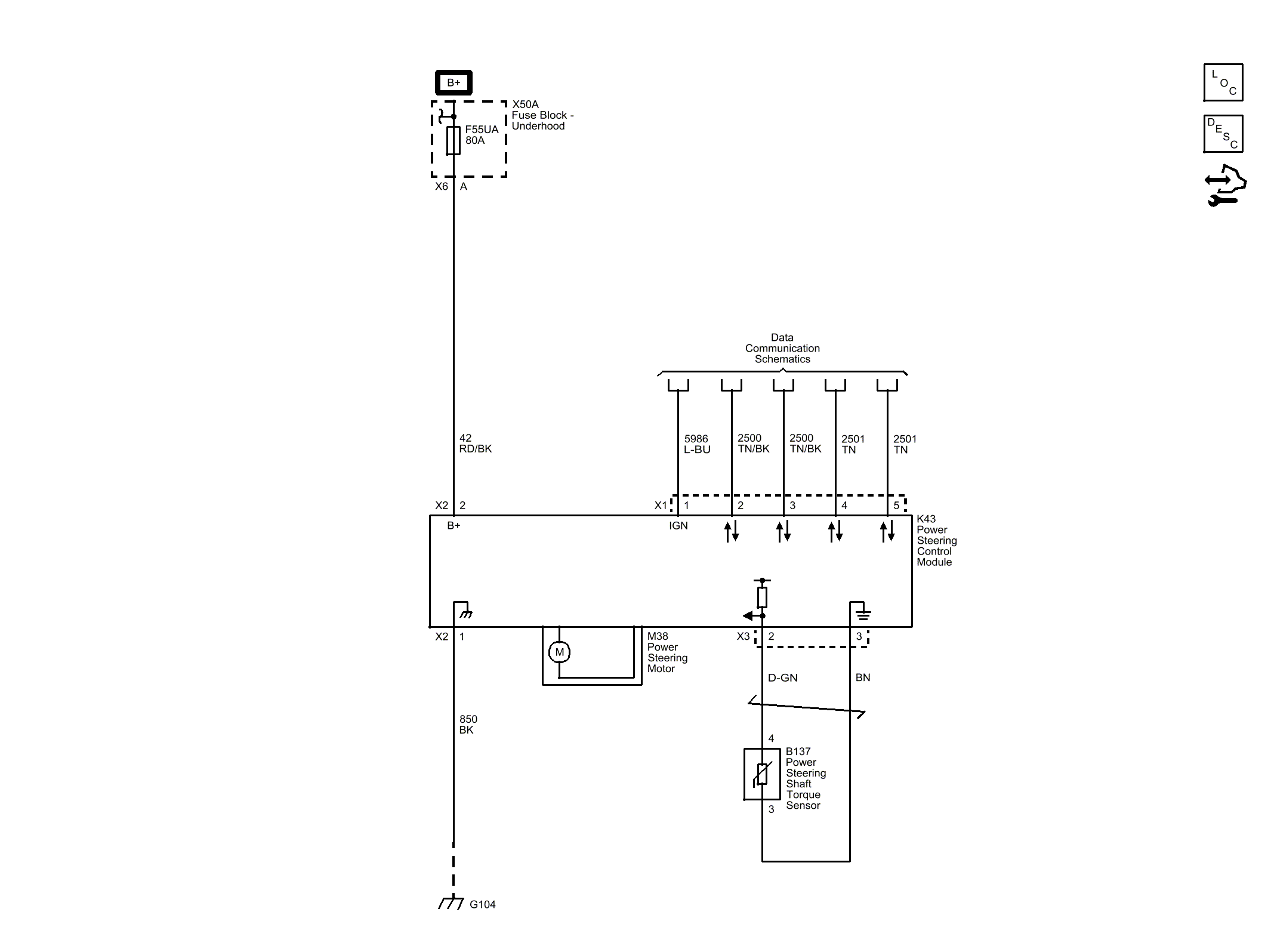

Fig 1: Module Power, Ground and Serial Data (MH2 or MH4) Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
