Radio, Video, Audio Disc Player, and Navigation Information Display Replacement
WARNING: This page is about a different car, the 2012 GMC Terrain and 2012 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
Radio, Video, Audio Disc Player, and Navigation Information Display Replacement

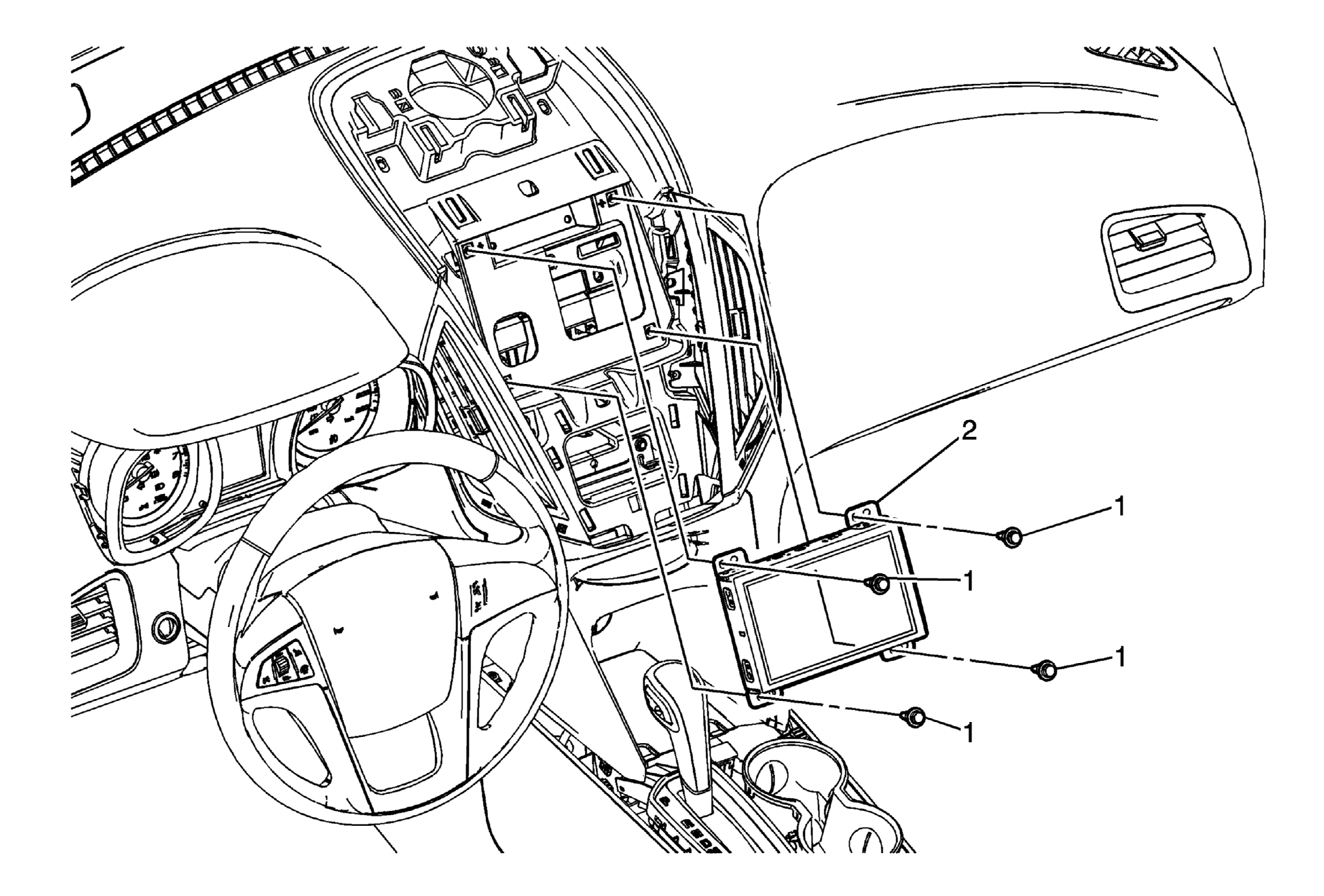

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the radio control assembly. Refer to Radio Control Assembly Replacement . |
|
| 1 | Radio, Video, Audio Disc Player, and Navigation Display Screws (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Radio, Video, Audio Disc Player, and Navigation Display Procedure Refer to Control Module References for programming and set up information. |
