Engine Compartment Components (3 of 3)

Items
1: B20 Brake Fluid Level Switch B20 Brake Fluid Level Switch
2: B19B Brake Booster Vacuum Sensor B19B Brake Booster Vacuum Sensor
3: M75 Windshield Wiper Motor M75 Windshield Wiper Motor
4: X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1 X50A Fuse Block - Underhood X2 X50A Fuse Block - Underhood X3 X50A Fuse Block - Underhood X4 X50A Fuse Block - Underhood X5 X50A Fuse Block - Underhood X6 (LEA)
5: C1 Battery C1 Battery (+)C1 Battery (-) (Battery Cable to Body)C1 Battery (-) (Negative Battery Cable)
6: B63LF Side Impact Sensor - Left Front B63LF Side Impact Sensor - Left Front
7: G24 Windshield Washer Pump G24 Windshield Washer Pump
8: P12B Horn - Low Note P12B Horn - Low Note
9: B55 Hood Ajar Switch (BTV) B55 Hood Ajar Switch (BTV)
10: P12A Horn - High Note P12A Horn - High Note
11: B18 Battery Current Sensor B18 Battery Current Sensor
12: B63RF Side Impact Sensor - Right Front B63RF Side Impact Sensor - Right Front
13: K17 Electronic Brake Control Module K17 Electronic Brake Control Module

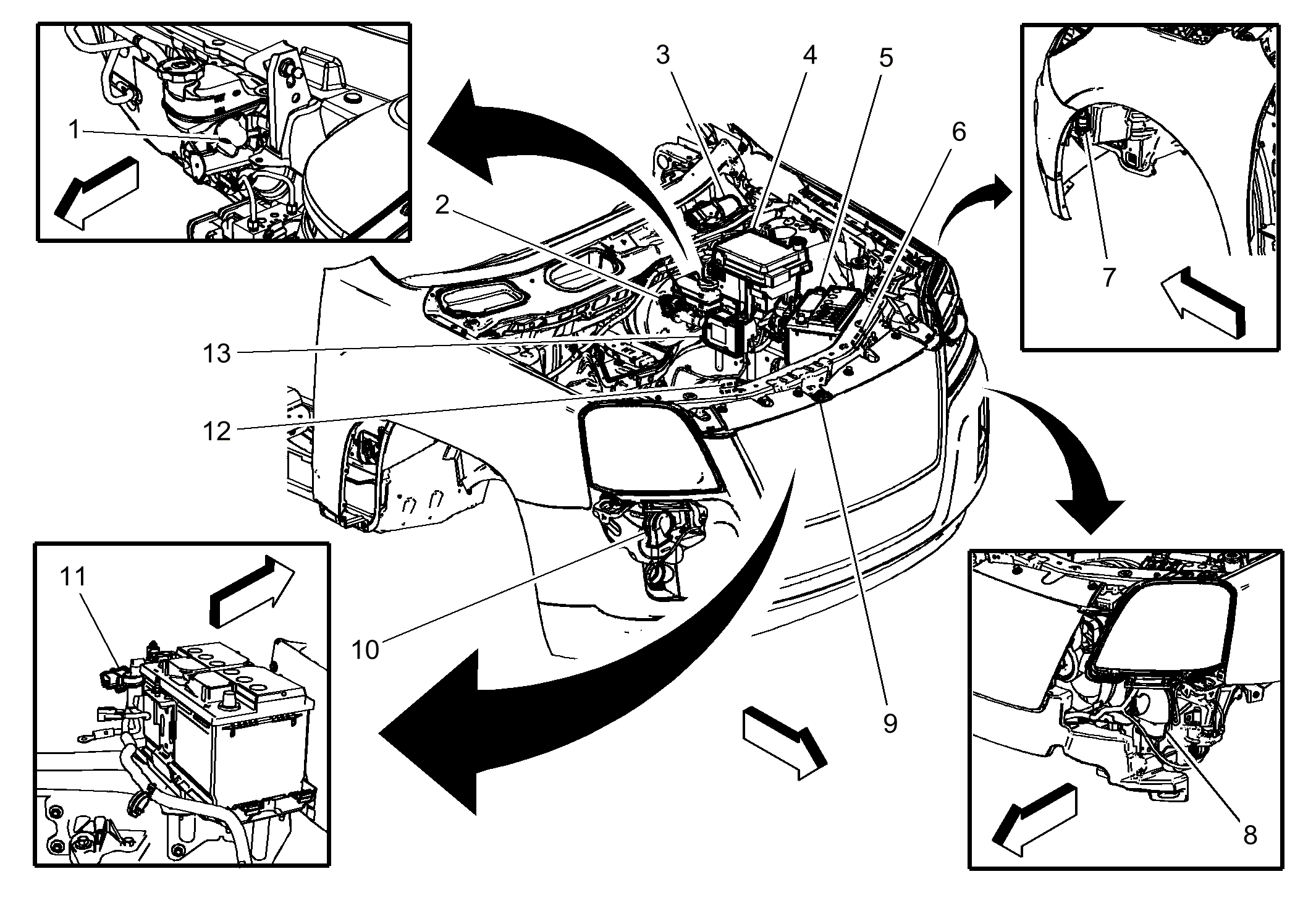

Fig 1: Engine Compartment Components (3 of 3)

Courtesy of GENERAL MOTORS COMPANY
