Driver Information Center (DIC) Switch (except MEX or 8S8)

WARNING: This page is about a different car, the 2014 GMC Sierra 3500 HD, 2014 GMC Sierra 2500 HD, 2014 Chevrolet Silverado 3500 HD, and 2014 Chevrolet Silverado 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

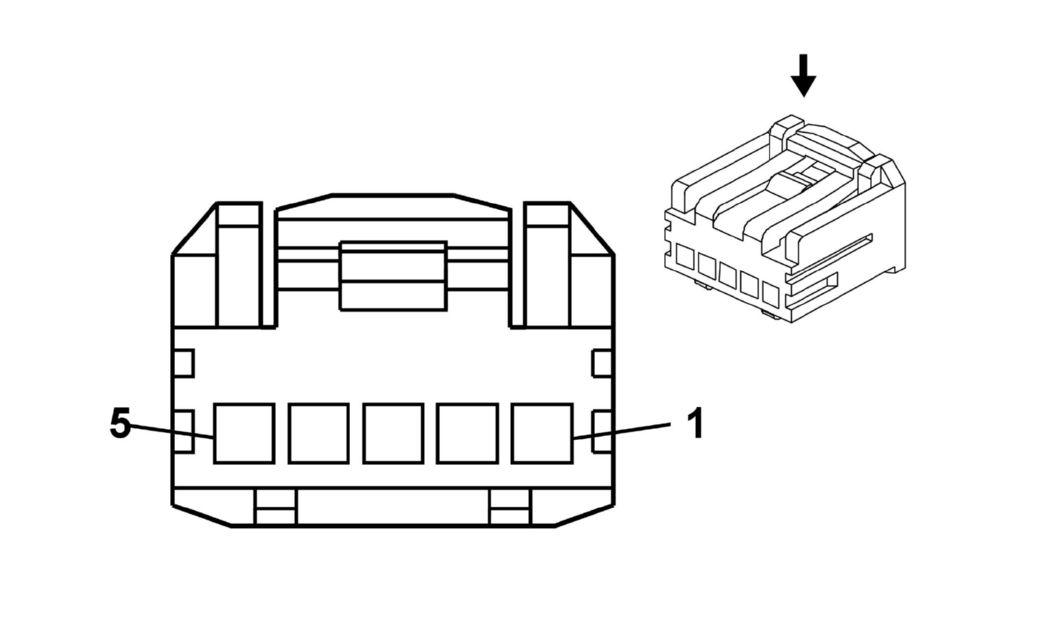

GM1715224Courtesy of GENERAL MOTORS COMPANY
Connector Part Information
  • Harness Type: Instrument Panel
  • OEM Connector: 15491277
  • Service Connector: 88988747
  • Description: 5-Way F HCM Series (BK)
Terminal Part Information
  • Terminated Lead: Pending
  • Release Tool: J-38125-12A
  • Diagnostic Test Probe: J-35616-64B (L-BU)
  • Terminal/Tray: SHCM-A03T-P025/20
  • Core/Insulation Crimp: J/J
Driver Information Center (DIC) Switch (except MEX or 8S8)

Pin Wire Circuit Function
1 0.35 D-GN/WH 1358 DIC Switch Signal
2 0.35 BN 897 Low Reference
3 0.35 PK 893 DIC Select Menu Switch Signal
4 0.35 YE 6817 LED Backlight Dimming Control
5 0.5 BK 1050 Ground
