Human Machine Interface, Display, Cellular Microphone, Power, Ground and Serial Data

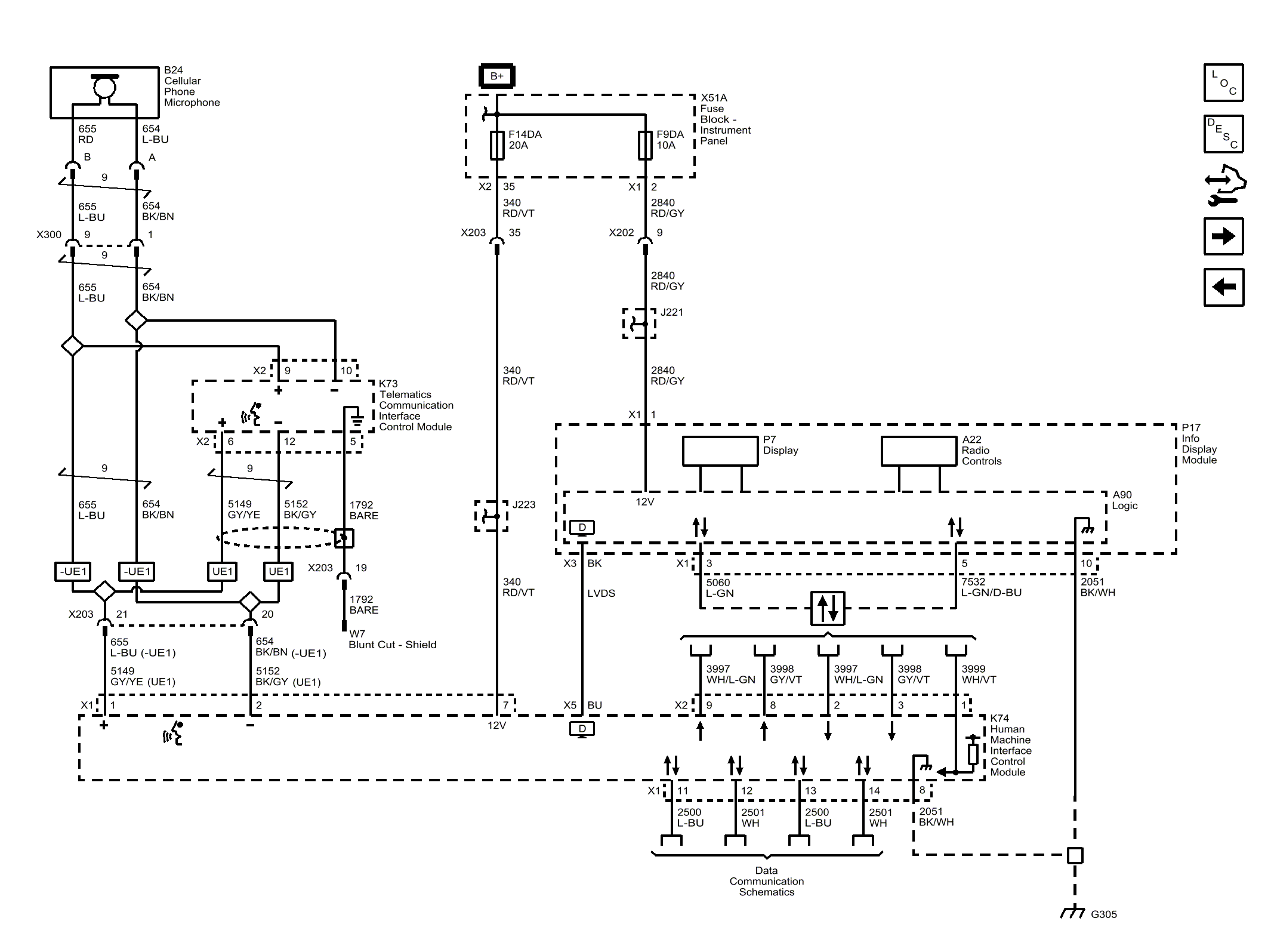

Fig 1: Human Machine Interface, Display, Cellular Microphone, Power, Ground and Serial Data
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
