Auxiliary Inputs - Front (MYB)

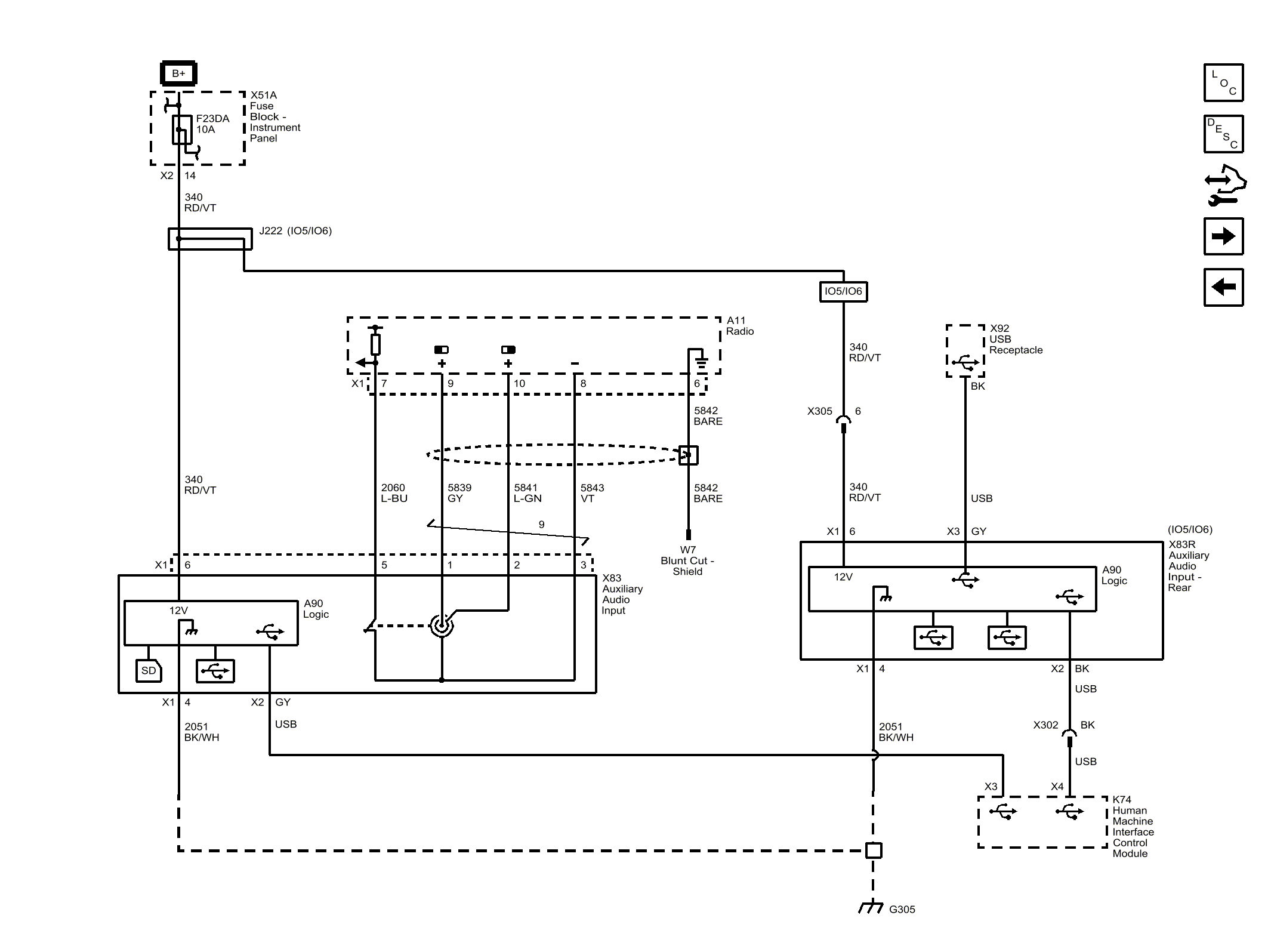

Fig 1: Auxiliary Inputs - Front (MYB)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
