Module Power, Ground, Serial Data, and Front Switch (TB5)

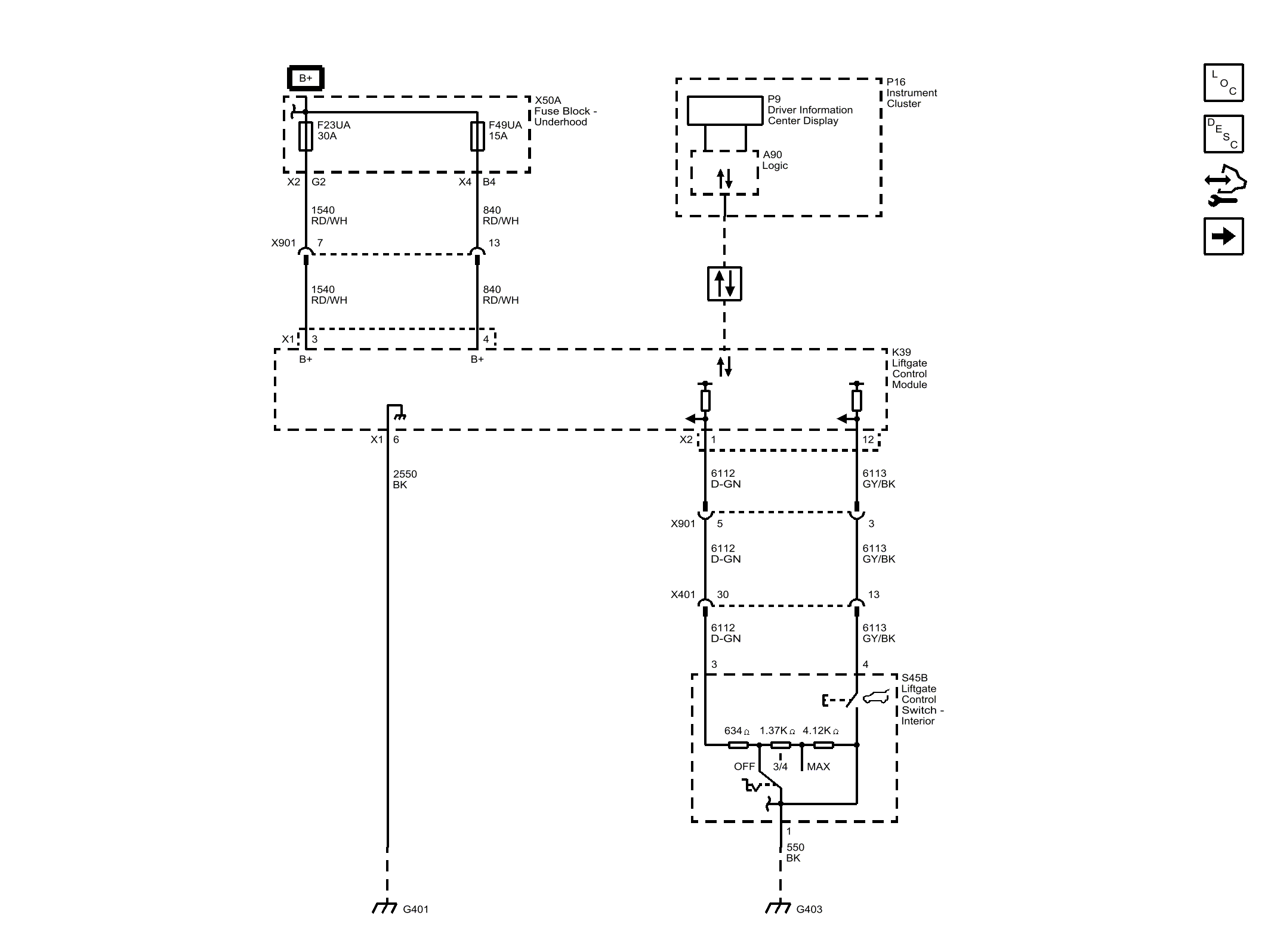

Fig 1: Module Power, Ground, Serial Data, and Front Switch (TB5)
GM3804185Courtesy of GENERAL MOTORS COMPANY
