Comprehensive Safety - Rear Radar (UVZ)

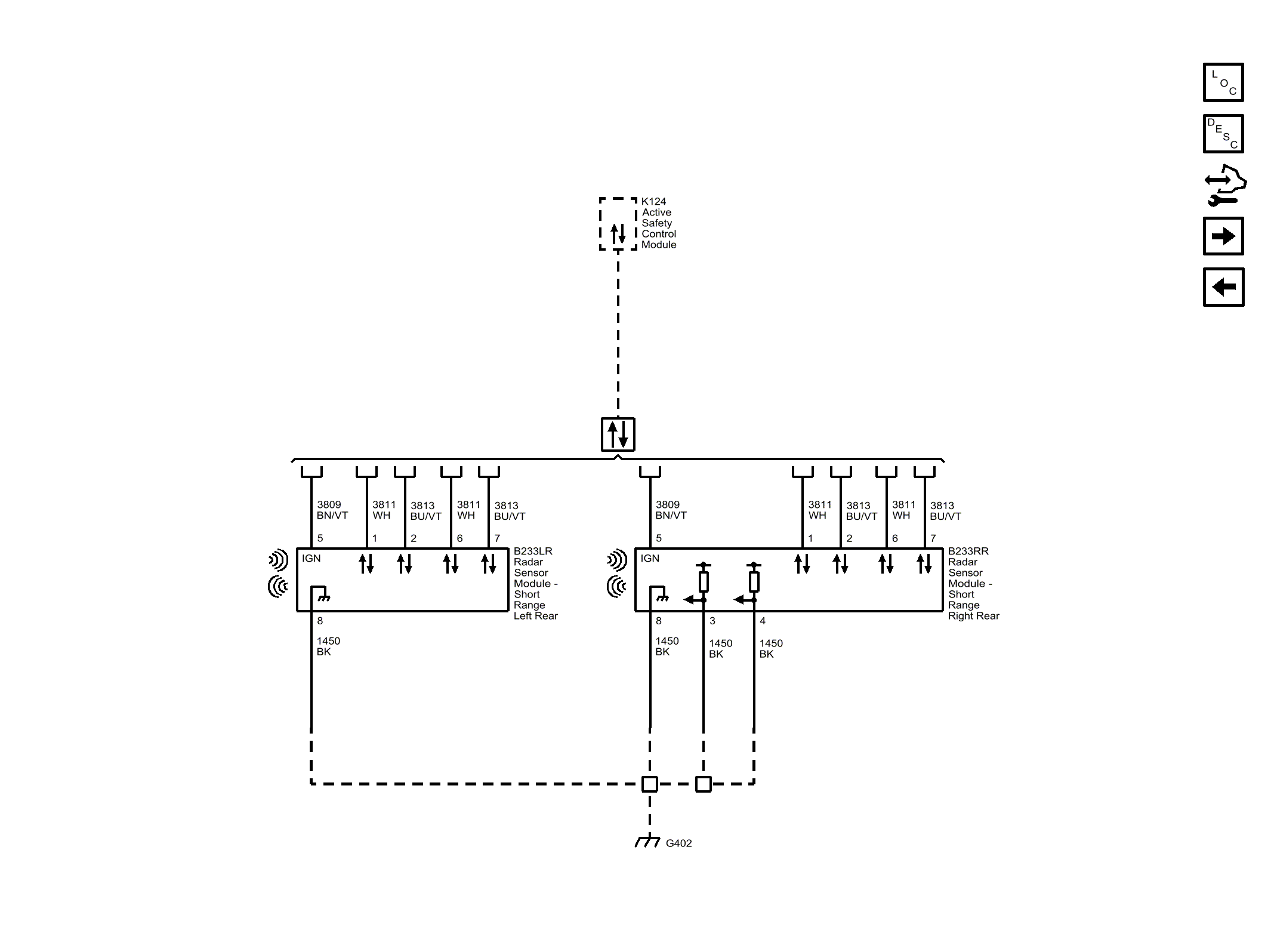

Fig 1: Comprehensive Safety - Rear Radar (UVZ)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
